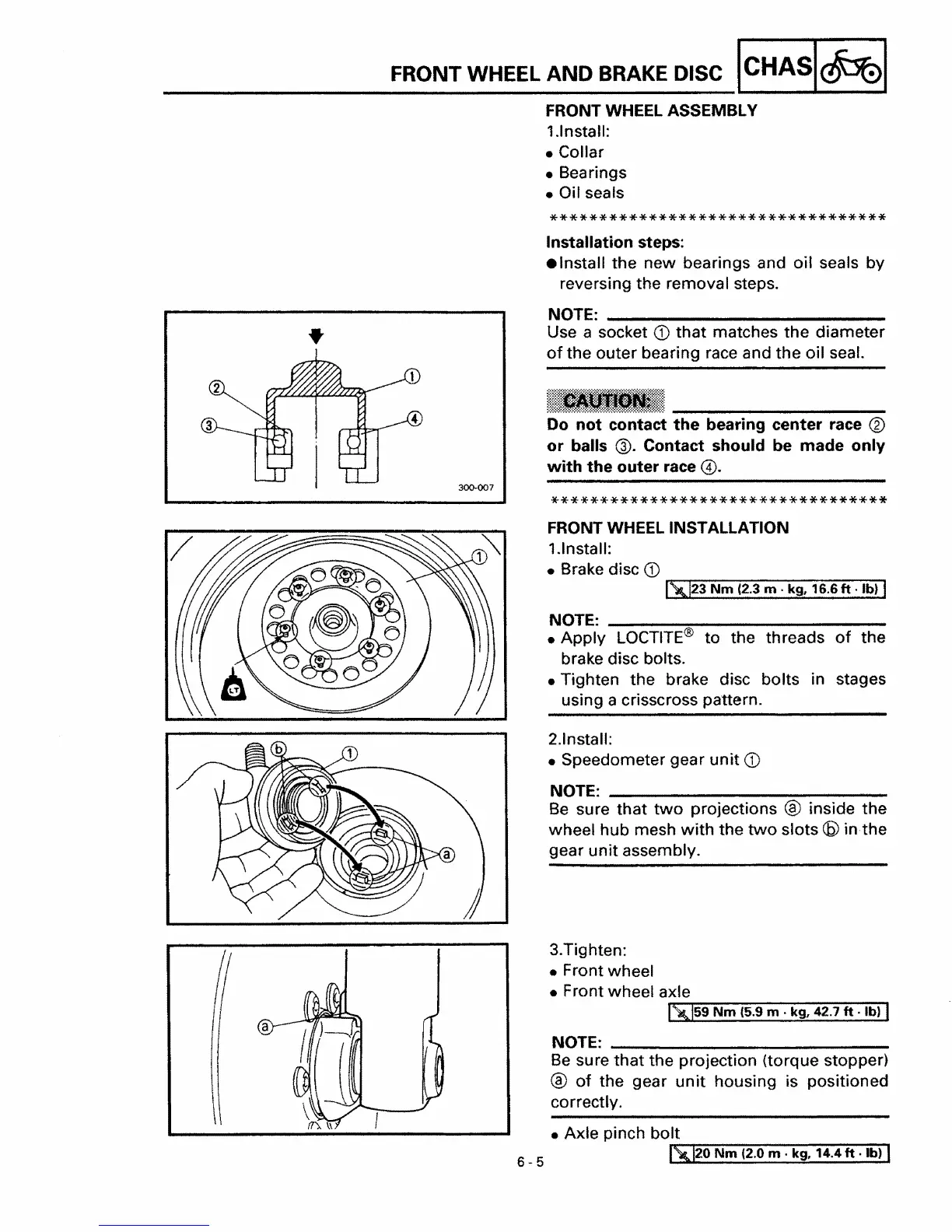

FRONT WHEEL AND BRAKE DISC ICHASIAI
FRONT WHEEL ASSEMBLY
1.1nstall:
• Collar
• Bearings
• Oil seals
**********************************
Installation steps:
.Install the new bearings and oil seals by
reversing the removal steps.
•
4
300-007
NOTE: _
Use a socket CD that matches the diameter
of the outer bearing race and the oil seal.
Do
not contact the bearing center race ®
or balls (ID. Contact should be made only
with the outer race @.
**********************************
FRONT WHEEL INSTALLATION
1.1nstall:
• Brake disc
CD
~23 Nm (2.3 m . kg, 16.6 ft . Ib) I
NOTE: ~ _
• Apply LOCTITE® to the threads of the
brake disc bolts.
• Tighten the brake disc bolts in stages
using a crisscross pattern.
2.1nstall:
• Speedometer gear
unit CD
NOTE: _
Be sure that two projections ® inside the
wheel hub mesh
with the two slots (6) in the
gear
unit assembly.
3.Tighten:
• Front wheel
• Front wheel axle
~r--59-N-m--(5-.9-m-. -kg-,-4 .... 2 ..... 7 .... ft-. ~lb~Jl
NOTE: _
Be sure that the projection (torque stopper)
® of the gear unit housing is positioned
correctly.
• Axle pinch
bolt
6 5 [~]20 Nm (2.0 m . kg, 14.4 ft· Ib) I
