Yamaha XVS650 - Cable Routing

EB206000

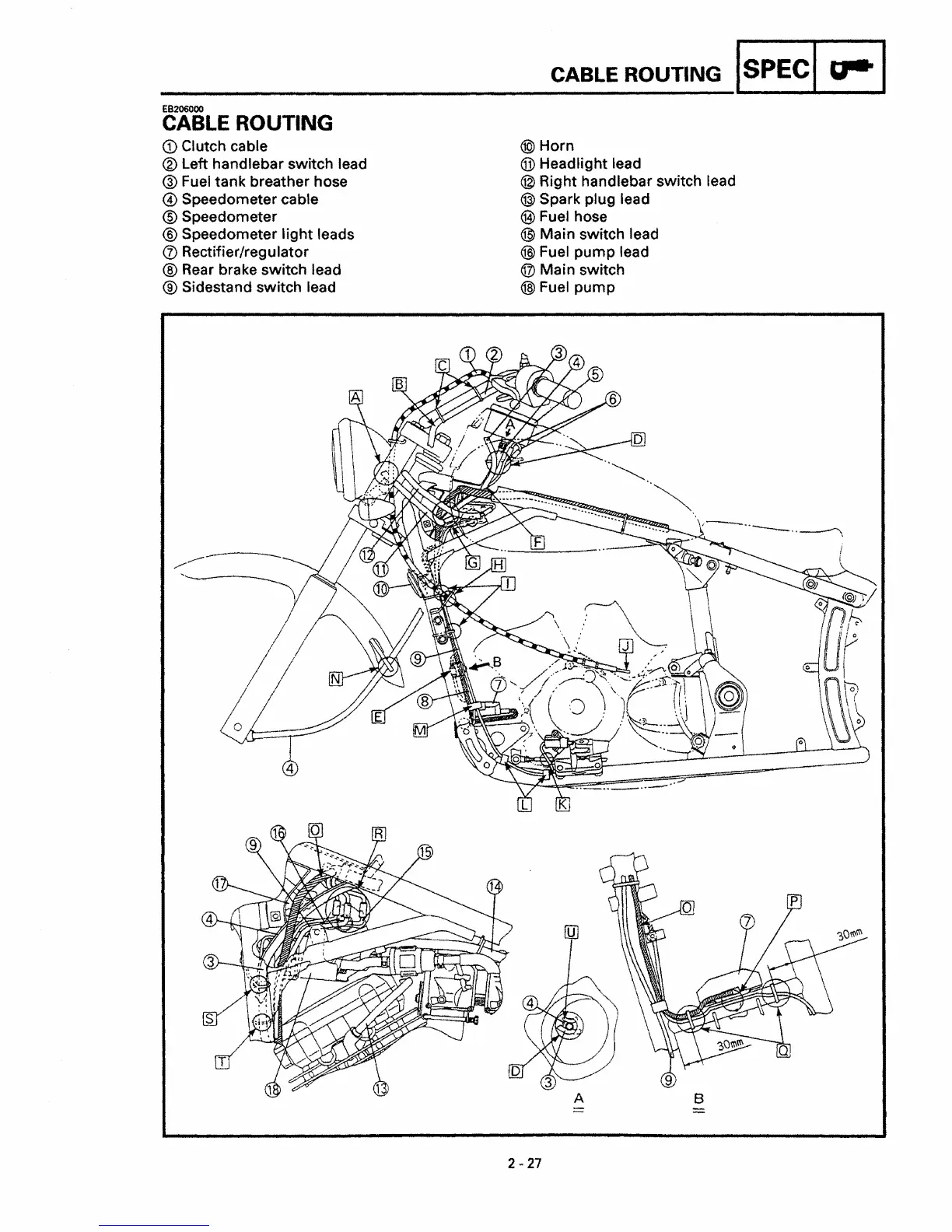

CABLE ROUTING
CD Clutch cable
® Left handlebar switch lead
® Fuel tank breather hose
@ Speedometer cable
® Speedometer
® Speedometer light leads
(j) Rectifier/regulator
® Rear brake switch lead
® Sidestand switch lead
CABLE ROUTING ISPECI ~ I
@Horn
(jJ) Headlight lead
@ Right handlebar switch lead
@ Spark plug lead
® Fuel hose
@ Main switch lead
@ Fuel pump lead
® Main switch
@Fuel pump
