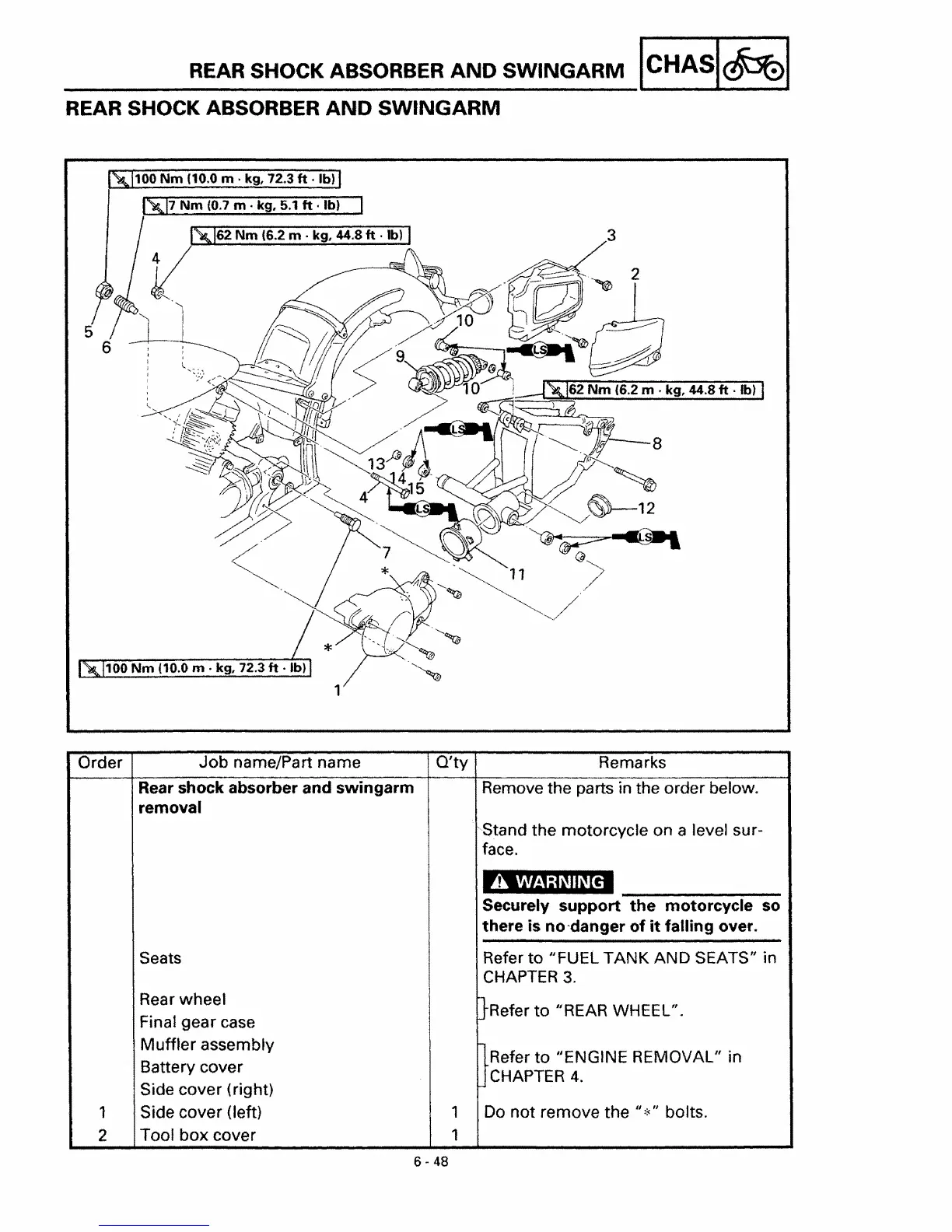

REAR SHOCK ABSORBER AND SWINGARM ICHASI~I
REAR SHOCK ABSORBER AND SWINGARM
[~]100 Nm (10.0 m . kg, 72.3 ft . Ib) I
~7 Nm (0.7 m . kg, 5.1 ft· Ib)
62 Nm (6.2 m . kg, 44.8 ft . Ib)
100
Nm (10.0 m . kg, 72.3 ft· Ib)
1
Order Job name/Part name
Rear shock absorber and swingarm
removal
Seats
3
Remove the parts in the order below.
Stand the motorcycle on a level sur-
face.
A WARNING
Securely support the motorcycle so
there
is no -danger of it falling over.
Refer to "FUEL TANK AND SEATS" in
CHAPTER 3.
1
2
Rear wheel
Final gear case
Muffler assembly
Battery cover
Side cover (right)
Side cover (left)
Tool box cover
6 - 48
Refer to "REAR WHEEL".
Refer to
IIENGINE REMOVAL" in
CHAPTER 4.
1 Do not remove the /1::<" bolts.
