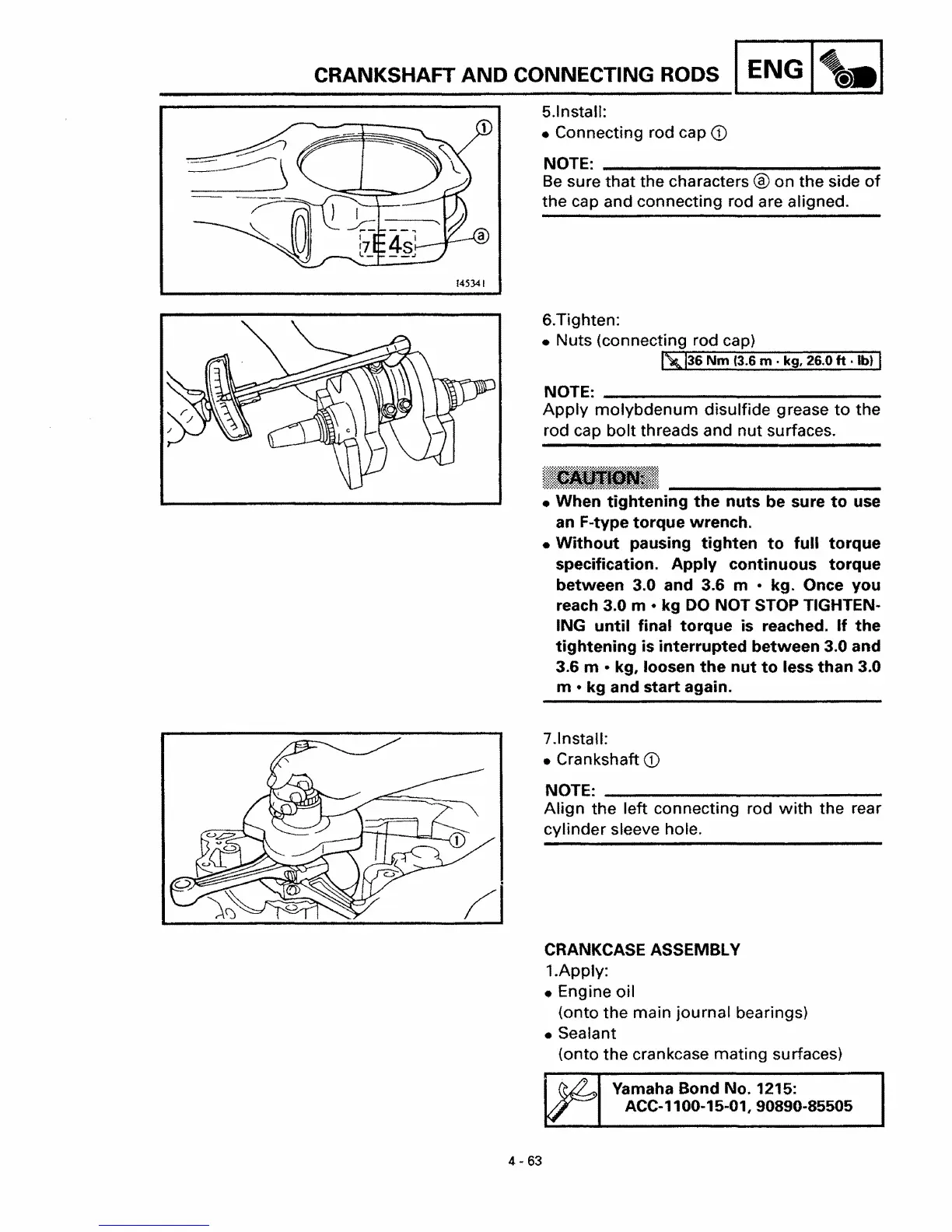

CRANKSHAFT AND CONNECTING RODS ENG
5.1nstall:
• Connecting rod cap
CD
NOTE: _
Be sure that the characters ® on the side of
the cap and connecting rod are aligned.
145341
6.Tighten:
• Nuts (connecting rod cap)
riJ~36~N~m~(3~.6~m-. ~k9-,~2~6.~O ~ft-. ~Ib~) I
NOTE: _
Apply molybdenum disulfide grease to the
rod cap
bolt threads and nut surfaces.
• When
tightening the nuts be sure to use
an F-type
torque wrench.
•
Without pausing tighten to full torque
specification. Apply continuous torque
between 3.0 and 3.6 m • kg. Once you
reach 3.0 m • kg DO NOT STOP TIGHTEN-
ING
until final torque is reached. If the
tightening is interrupted between 3.0 and
3.6 m • kg, loosen
the nut to less than 3.0
m •
kg and start again.
7.1nstall:
• Crankshaft
CD
NOTE: _
Align the left connecting rod
with the rear
cylinder sleeve hole.
CRANKCASE ASSEMBLY
1.Apply:
• Engine oil
(onto the main journal bearings)
• Sealant
(onto the crankcase mating surfaces)
Yamaha Bond No. 1215:
ACC-11 00-15-0 1, 90890-85505
