Yamaha XVS650 - Caliper Disassembly

FRONT BRAKE ICHASI~I
2
2
r
\
Order
Job name/Part name
Q'ty
Remarks

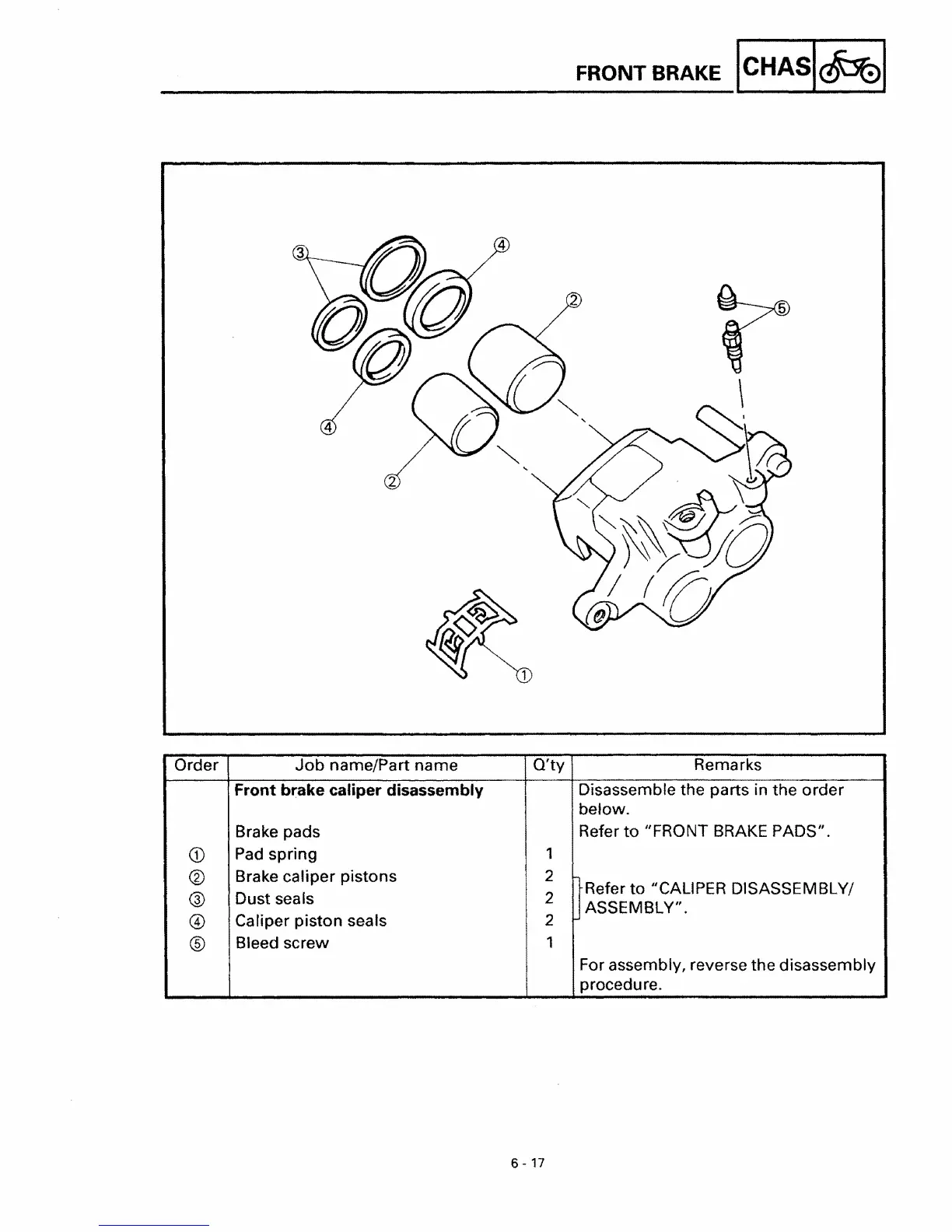

Front brake caliper disassembly
Disassemble the parts in the order
below.
Brake pads
Refer
to uFRONT BRAKE PADS".
CD
Pad spring
1
®
Brake caliper pistons
2
®
Dust seals
2
~Referto "CALIPER DISASSEMBLY/
ASSEMBLY".
@ Caliper piston seals
2
®
Bleed screw
1
For assembly, reverse the disassembly
procedure.
6 - 17
