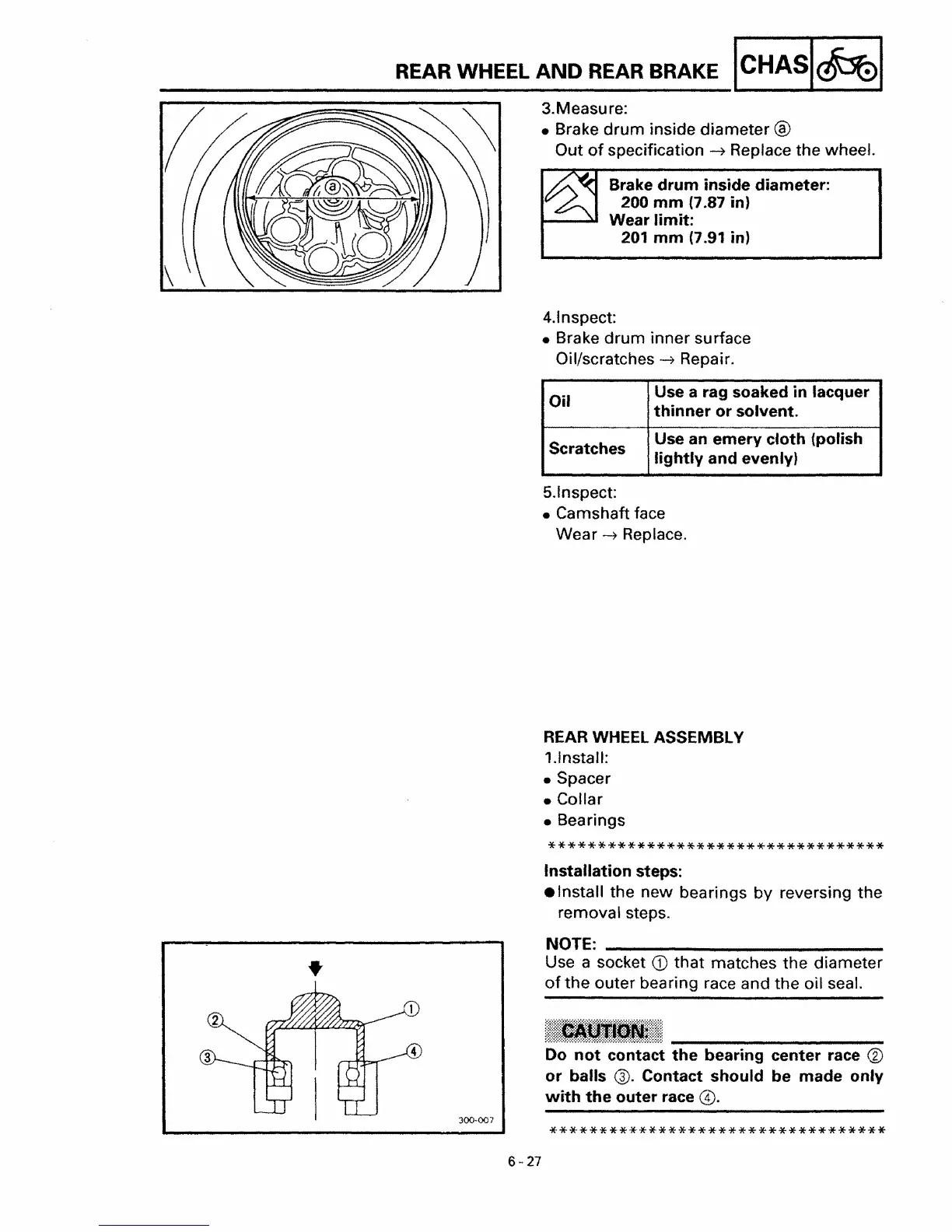

REAR WHEEL AND REAR BRAKE ICHASIAI
3.Measure:
• Brake
drum inside diameter ®
Out of specification --7 Replace the wheel.
Brake drum inside diameter:
200
mm (7.87 in)
Wear
limit:
201 mm (7.91 in)
4.lnspect:
• Brake
drum inner surface
Oil/scratches
--7 Repair.
Oil
Use a rag soaked in lacquer
thinner or solvent.
Scratches
Use an
emery cloth (polish
lightly and evenly)
5.1nspect:
• Camshaft face
Wear
--7 Replace.
REAR WHEEL ASSEMBLY
1.1nstall:
• Spacer
• Collar
• Bearings
**********************************
Installation steps:
.Install the new bearings by reversing the
removaI steps.
•
NOTE: _
Use a socket CD that matches the diameter
of the outer bearing race and the oil seal.
Do not contact the bearing center race ®
or balls @. Contact should be made only
with the outer race @.
300-007
**********************************
6 - 27
