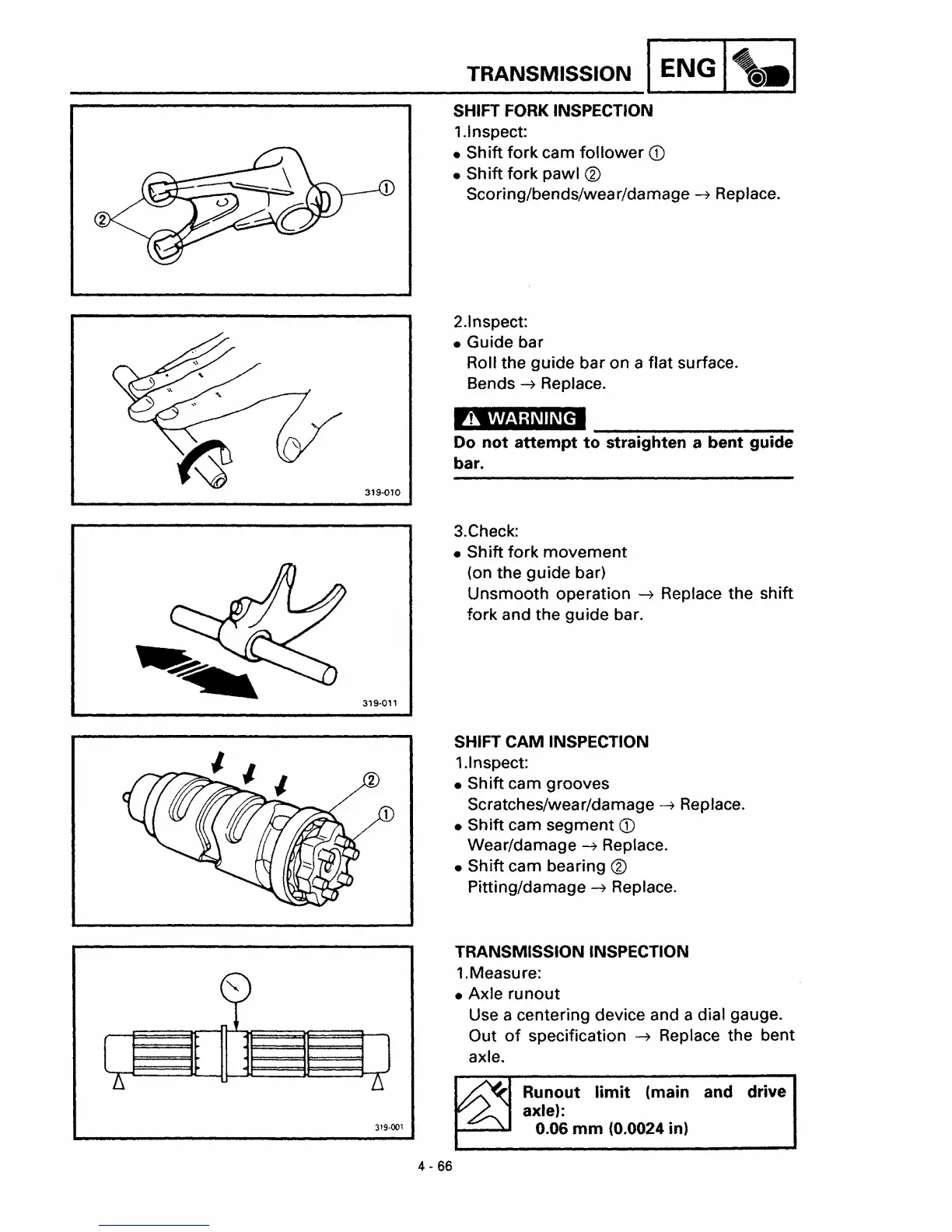

TRANSMISSION ENG
SHIFT FORK INSPECTION
1.1nspect:
• Shift
fork cam follower CD
• Sh ift fork pawl ®
Scoring/bends/wear/damage -7 Replace.
319-010
319-011
2.lnspect:
• Guide bar
Roll the guide
bar on a flat surface.
Bends
-7 Replace.
A WARNING
Do not attempt to straighten a bent guide
bar.
3.Check:
•
Sh ift fork movement
(on the guide bar)
Unsmooth operation
-7 Replace the shift
fork and the guide bar.
319-001
4·66
SHIFT CAM INSPECTION
1.1nspect:
• Shift cam grooves
Scratches/wear/damage
-7 Replace.
• Shift cam segment
CD
Wear/damage -7 Replace.
•
Shift cam bearing ®
Pitting/damage -7 Replace.
TRANSMISSION INSPECTION
1.Measure:
• Axle
runout
Use a centering device and a dial gauge.
Out
of specification -7 Replace the bent
axle.
Runout limit (main and drive
axle):
0.06 mm (0.0024 in)
