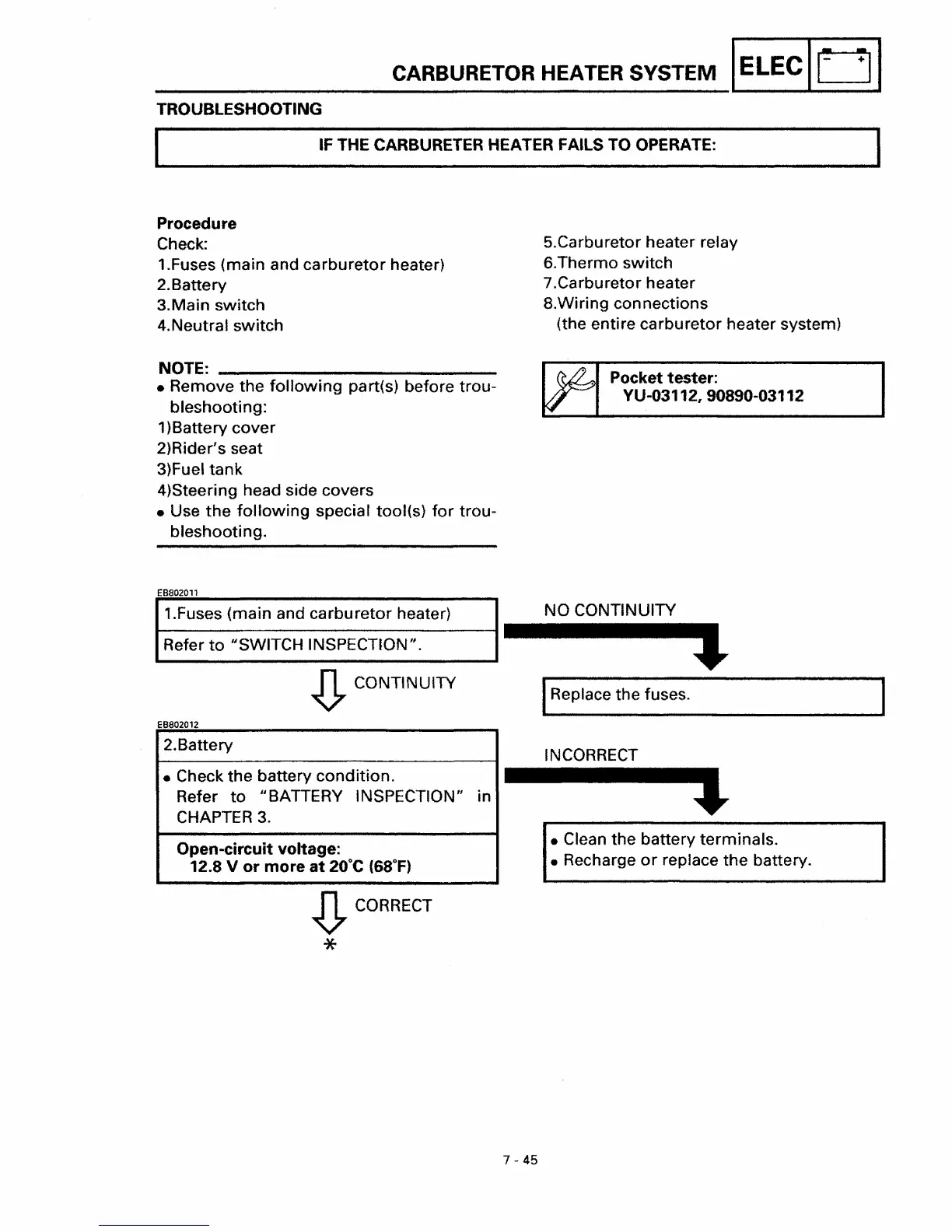

Yamaha XVS650 - Troubleshooting; Carburetor Heater System

CARBURETOR HEATER SYSTEM I ELEC I0 I
TROUBLESHOOTING
IF THE CARBURETER HEATER
FAilS TO OPERATE:
Procedure
Check:
1.Fuses (main and
carburetor heater)
2. Battery
3.Main switch
4.Neutral switch
5.Carburetor heater relay
6.Thermo switch
7.Carburetor heater
8.Wiring connections
(the entire carburetor heater system)
NOTE: _
• Remove the following pa rt(s) before trou-
bleshooting:
1)Battery
cover
2)Rider's seat
3)Fuel tank
4)Steering head side covers
• Use
the following special tool(s) for trou-
bleshooting.
EBS02011
Pocket tester:
YU-03112,90890-03112
1.Fuses (main and
carburetor heater)
Refer
to IJSWITCH INSPECTION".
~ CONTINUITY
EB802012
2. Battery
• Check the battery
condition.
Refer to
"BATIERY
INSPECTION"
in
CHAPTER
3.
Open-circuit voltage:
12.8 V
or more at 20°C (68°F)
.D7 CORRECT
*
NO CONTINUITY
IReplace the fuses.
INCORRECT
• Clean the battery terminals.
• Recharge
or replace the battery.
7 - 45
