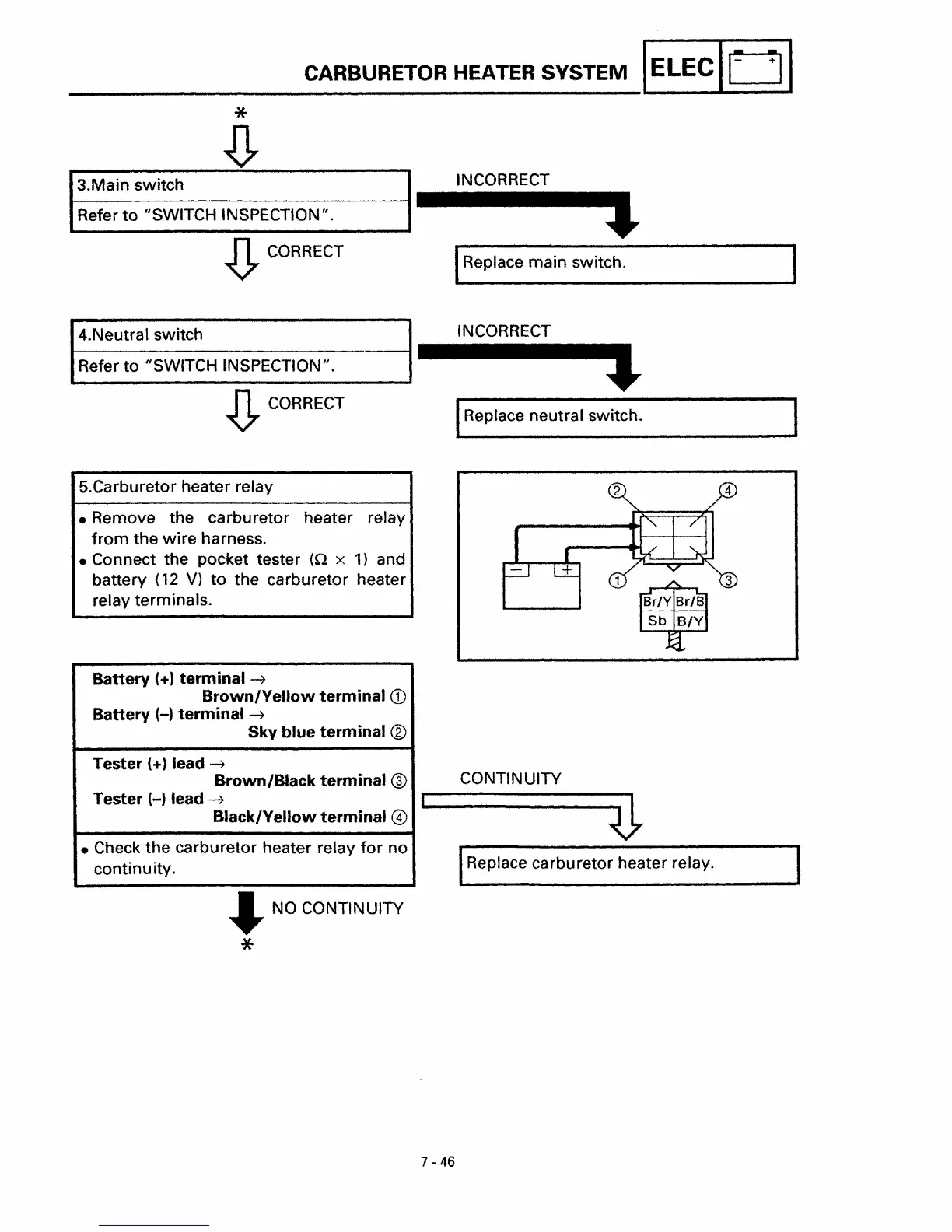

CARBURETOR HEATER SYSTEM IELEC 11:31
3.Main switch
Refer
to IISWITCH INSPECTION 11.
~ CORRECT
4.Neutral switch
Refer
to IISWITCH INSPECTION II.
~ CORRECT
5.Carburetor heater relay
• Remove the carburetor heater relay
from the wire harness.
• Connect the pocket tester
(0 x 1) and
battery (12
V) to the carburetor heater
relay termina
Is.
Battery (+) terminal ~
Brown/Yellow terminal CD
Battery (-) terminal ~
Sky blue terminal ®
Tester (+) lead ~
Brown/Black terminal ®
Tester (-) lead ~
Black/Yellow terminal @
• Check the carburetor heater relay for no
continuity.
""'" NO CONTINUITY
*
INCORRECT
IReplace main switch.
INCORRECT
IReplace neutral switch.
CONTINUITY
IReplace carburetor heater relay.
7 - 46
