LUBRICATION DIAGRAMS ISPECI U-I
EB205000

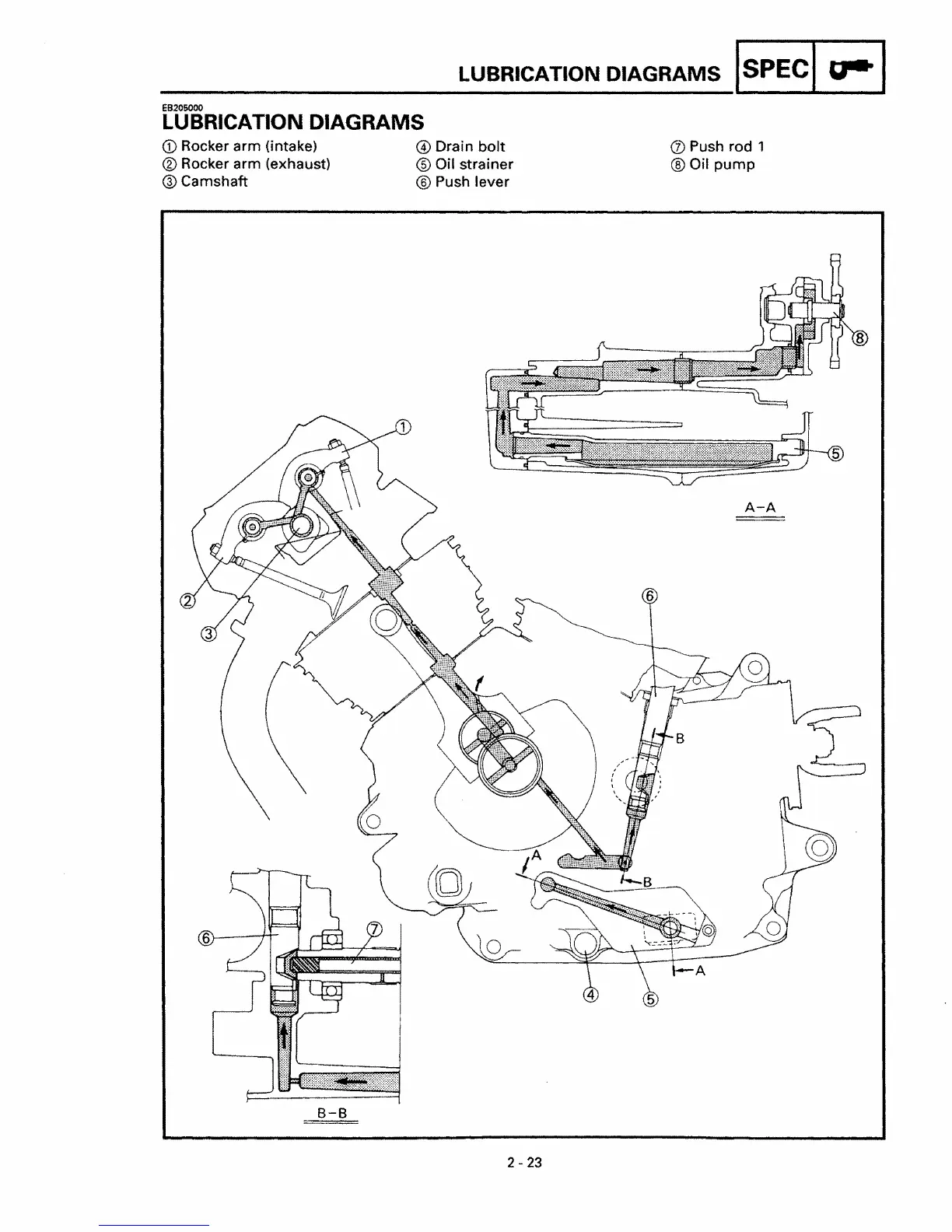

LUBRICATION DIAGRAMS
CD Rocker arm (intake)
® Rocker arm (exhaust)
® Camshaft
@ Drain bolt
® Oil strainer
® Push lever
(j) Push rod 1
® Oil pump
2 - 23
