Yamaha XVS650 - Cylinder Head Covers

ENGINE REMOVAL ENG

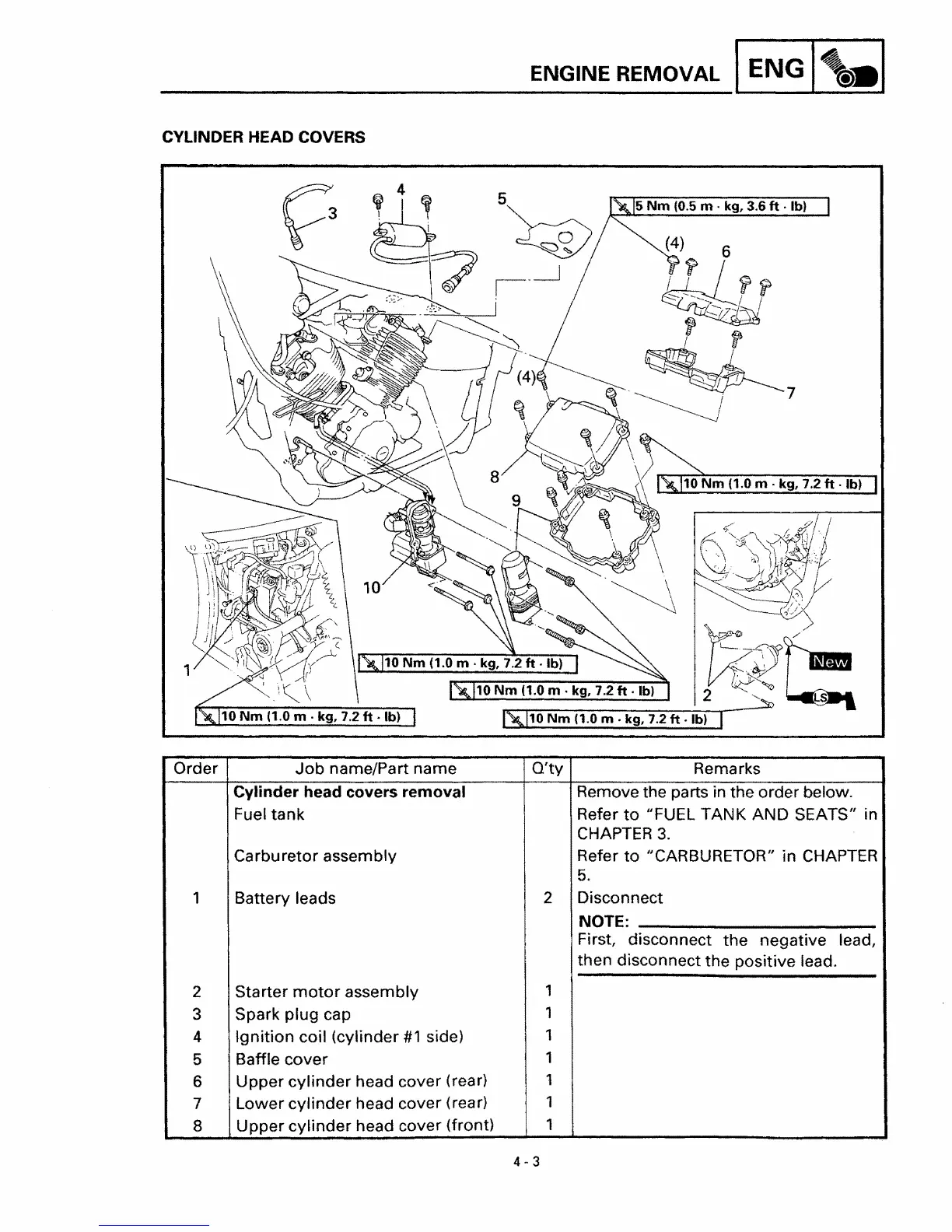

CYLINDER HEAD COVERS
4
10 Nm (1.0 m· kg, 1.2 ft ·Ib)
j'~;
" {j')
10Nm(1.0m·kg,7.2ft.lbl ~~r--.-
10 Nm (1.0 m· kg, 1.2 It ·Ib) 2 K:::, ~ ~
tT-T":"":"'~~~~ -----' ~10 Nm (1.0 m . kg, 1.2 It . Ib) ~
Order
Job name/Part name
Qfty
Remarks
Cylinder head covers removal
Remove the parts in the order below.
Fuel
tank Refer to IIFUEL TANK AND SEATS
fI
in
CHAPTER 3.
Carburetor assembly
Refer
to "CARBURETOR
fI
in CHAPTER
5.
1
Battery leads
2
Disconnect
NOTE:
First
f
disconnect the negative lead
f
then disconnect the positive lead.
2 Starter motor assembly
1
3 Spark plug cap
1
4
Ignition coil (cylinder #1 side)
1
5
Baffle cover
1
6
Upper cylinder head cover (rear)
1
7
Lower cylinder head cover (rear)
1
8
Upper cylinder head cover (front)
1
4-3
