IMPORTANT INFORMATION II~~~ I~I
EB101030

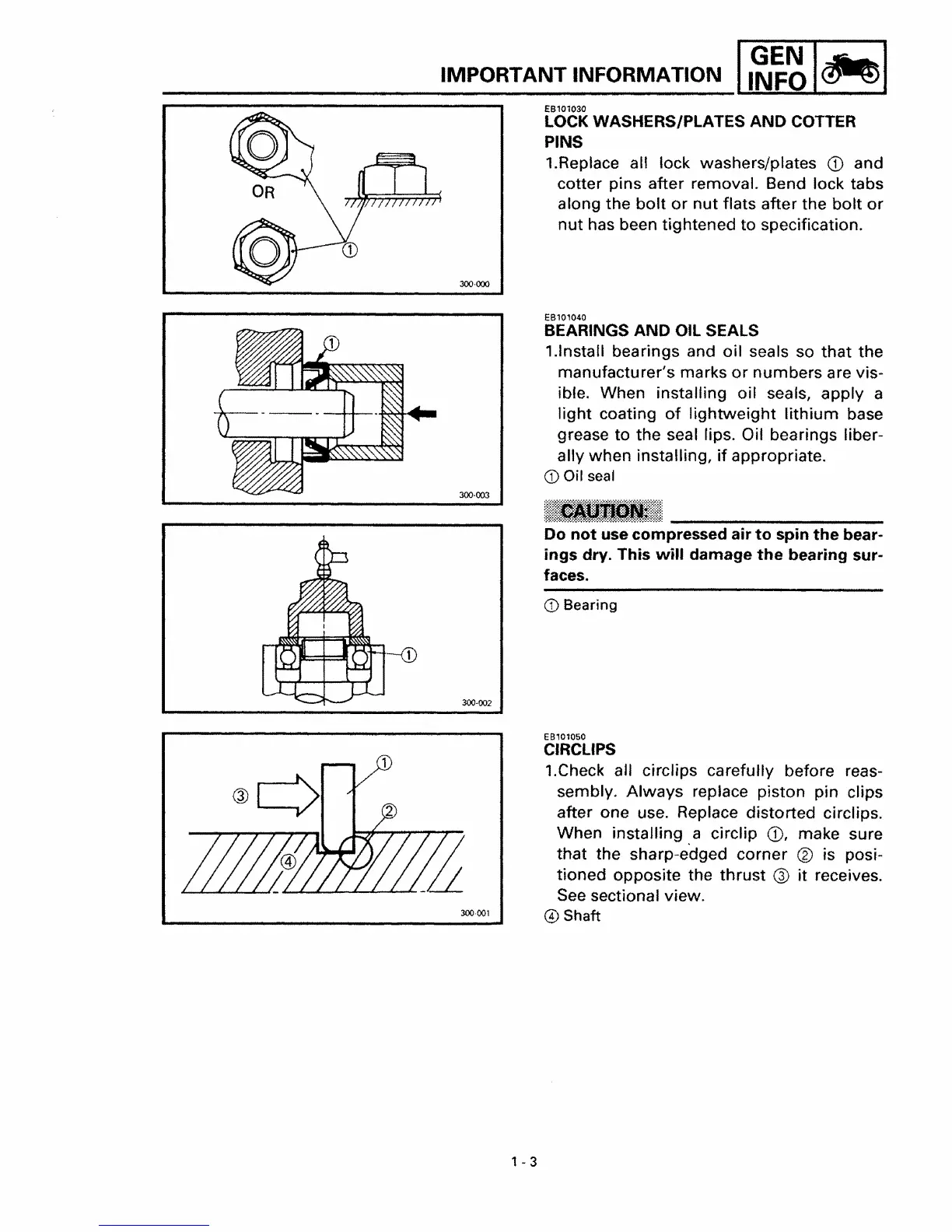

LOCK WASHERS/PLATES AND COTTER
PINS
1.Replace all lock washers/plates CD and
cotter pins after removal. Bend lock tabs
along the bolt or nut flats after the bolt or
nut has been tightened to specification.
300·000
EB101040
BEARINGS AND OIL SEALS
1.1nstall bearings and oil seals so that the
manufacturer's marks or numbers are vis-
ible. When
installing oil seals, apply a
light coating of lightweight lithium base
grease
to the seal lips. Oil bearings liber-
ally when installing, if appropriate.
<D Oil seal
300·003
Do not use compressed air to spin the bear-
ings dry. This will damage the bearing sur-
faces.
<D Bearing
300-002
EB101050
CIRCLIPS
1.Check all circlips carefully before reas-
sembly.
Always replace piston pin clips
after one use. Replace distorted circlips.
When installing a circlip CD, make sure
that the sharp-edged corner ® is posi-
tioned opposite the thrust @ it receives.
See sectional
view .
..... 300_.00_1....@Shaft
