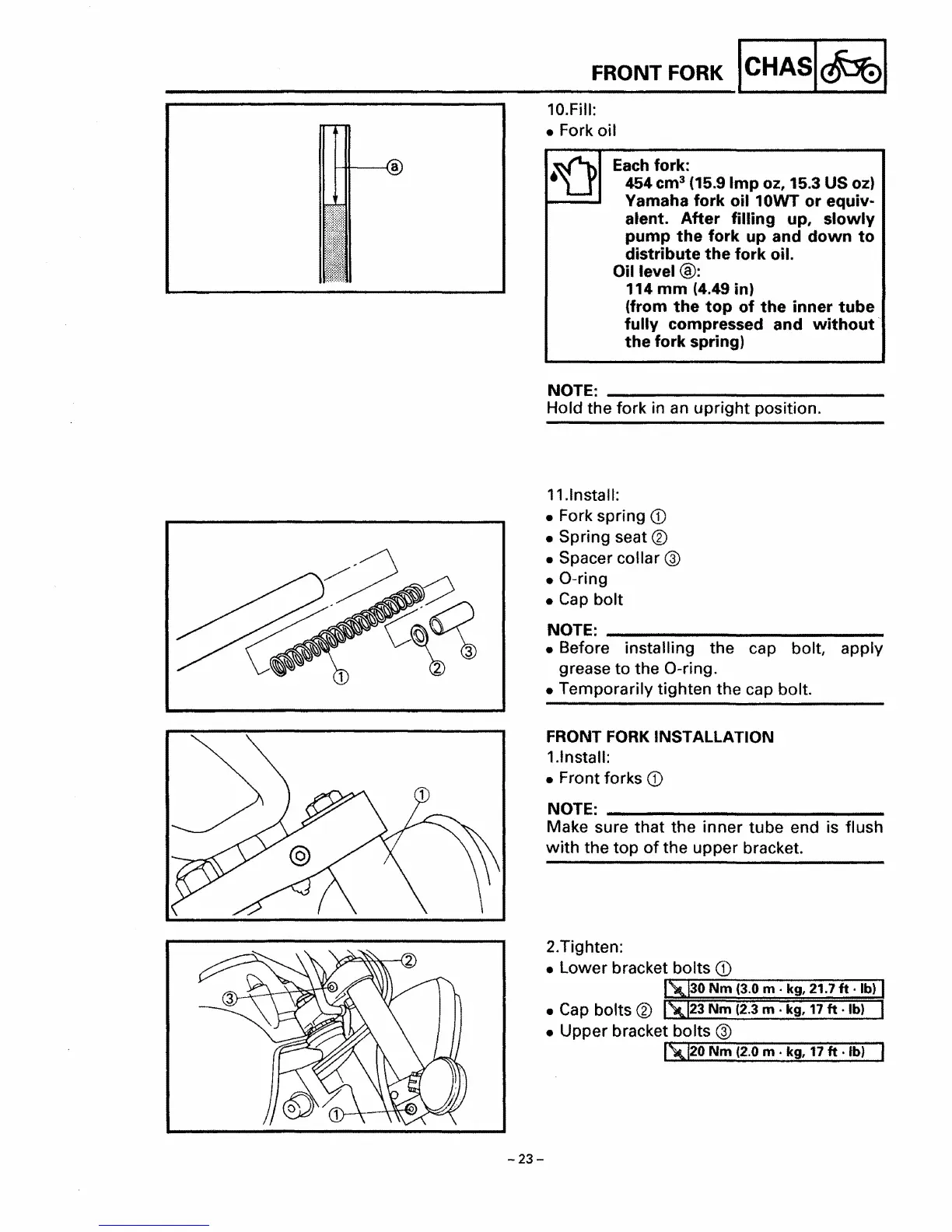

Yamaha XVS650 - FRONT FORK

~~~~~~~~~~~~F_R_O_N_T_ro_R_K_ICHA3~1
1a.Fill:
• Fork oil
Each fork:
454 cm
3
(15.9 Imp OZ, 15.3 US oz)
Yamaha
fork oil 10WT or equiv~
alent. After filling up, slowly
pump the fork up and down to
distribute the fork oil.
Oil level ®:
114 mm (4.49 in)
(from
the top of the inner tube
fully compressed and without
the fork spring)
NOTE: _
Hold the fork in an upright position.
11.lnstall:
• Fork spring
CD
• Spring seat ®
• Spacer collar ®
• O-ring
• Cap
bolt
NOTE: _
• Before installing the cap bolt, apply
grease to the O-ring.
•
Temporarily tighten the cap bolt.
FRONT FORK INSTALLATION
1.tnstall:
• Front forks
CD
NOTE: _
Make sure that the inner tube end is flush
with the top of the upper bracket.
2.Tighten:
•
Lower bracket bolts CD
~~~O~N~m~(3-.0-m-. k-g-, 2--1--.7~ft-.~lb~q
• Cap bolts ® ~23 Nm (2.3 m . kg, 17 ft . fb) I
• Upper bracket bolts ®
~~20~N~m~(2~.O-m~. k-g-, 1~7~ft-.~lb--) -l
-23-
