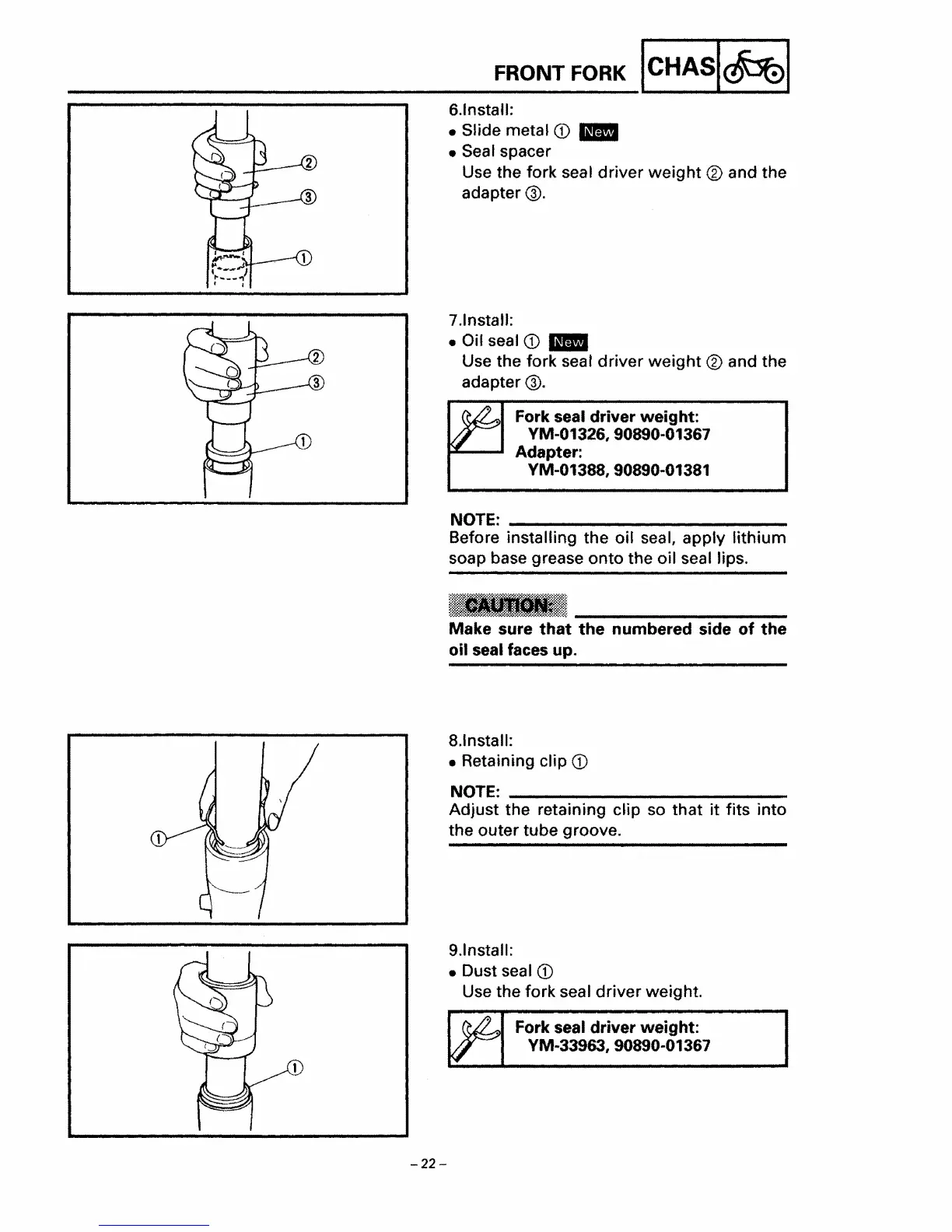

~~~~~~~~~~~~F_R_O_N_T_ro_R_K_ICHA3~1
6.1nstall:
• Slide metal
(j) ..
• Seal spacer
Use the fork seal driver weight
® and the
adapter@.
NOTE: _
Before installing the oil seal, apply lithium
soap base grease onto the oil seal lips.
1.1nstall:
• Oil seal
(j) .-
Use the fork seal driver weight ® and the
adapter@.
Fork seal driver weight:
YM-01326,90890-01367
Adapter:
YM-01388,90890-01381
.. < ----------
Make sure that the numbered side of the
oil seal faces up.
a.lnstall:
• Retaining clip
(j)
NOTE: _
Adjust the retaining clip so that it fits into
the outer tube groove.
9.lnstall:
• Dust
sea I (j)
Use the fork seal driver weight.
Fork seal driver weight:
YM-33963,90890-01367
-22-
