Yamaha XVS650 - Chapter 4; Engine; Engine Removal; Mufflers, Brake Pedal and Side Cover

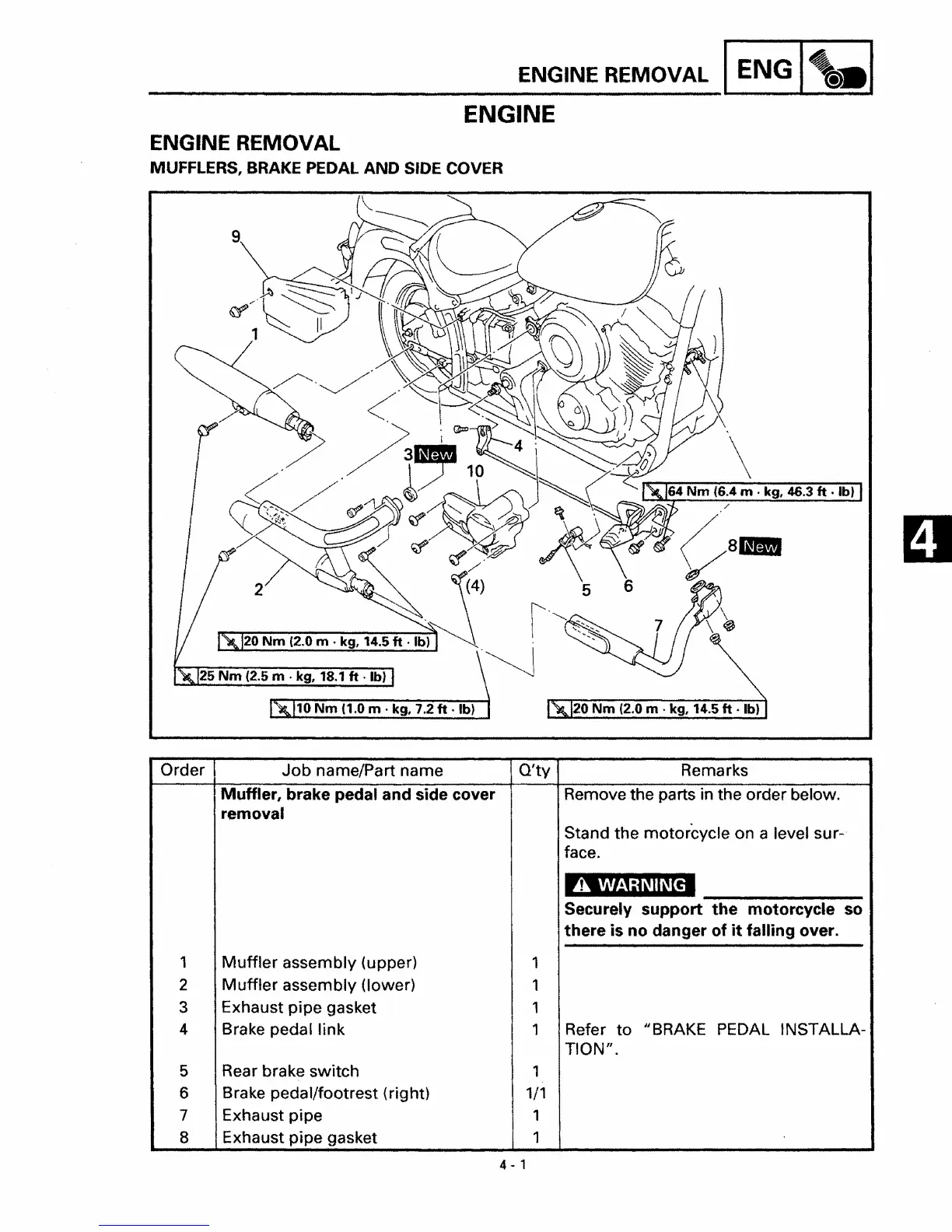

ENGINE REMOVAL I ENG I \iiI
ENGINE
ENGINE REMOVAL
MUFFLERS, BRAKE PEDAL AND SIDE COVER
9
25 Nm (2.5 m . kg, 18.1 ft . Ib)
10
Nm (1.0 m· kg, 7.2ft ·Ib)
Order Job name/Part name
Muffler, brake pedal and side cover
removal
\
Q'ty Rema rks
Remove the parts in the order below.
Stand the motorcycle on a level
sur-
face.
A WARNING
Securely support the motorcycle so
there is no danger of it falling over.
1
2
3
4
Muffler assembly (upper)
Muffler assembly (lower)
Exhaust pipe gasket
Brake pedal link
1
1
1
1
Refer to IIBRAKE PEDAL INSTALLA-
TION".
5 Rear brake switch
6 Brake pedal/footrest (right)
7 Exhaust pipe
8 Exhaust pipe gasket
1
1/1
1
1
4 - 1
