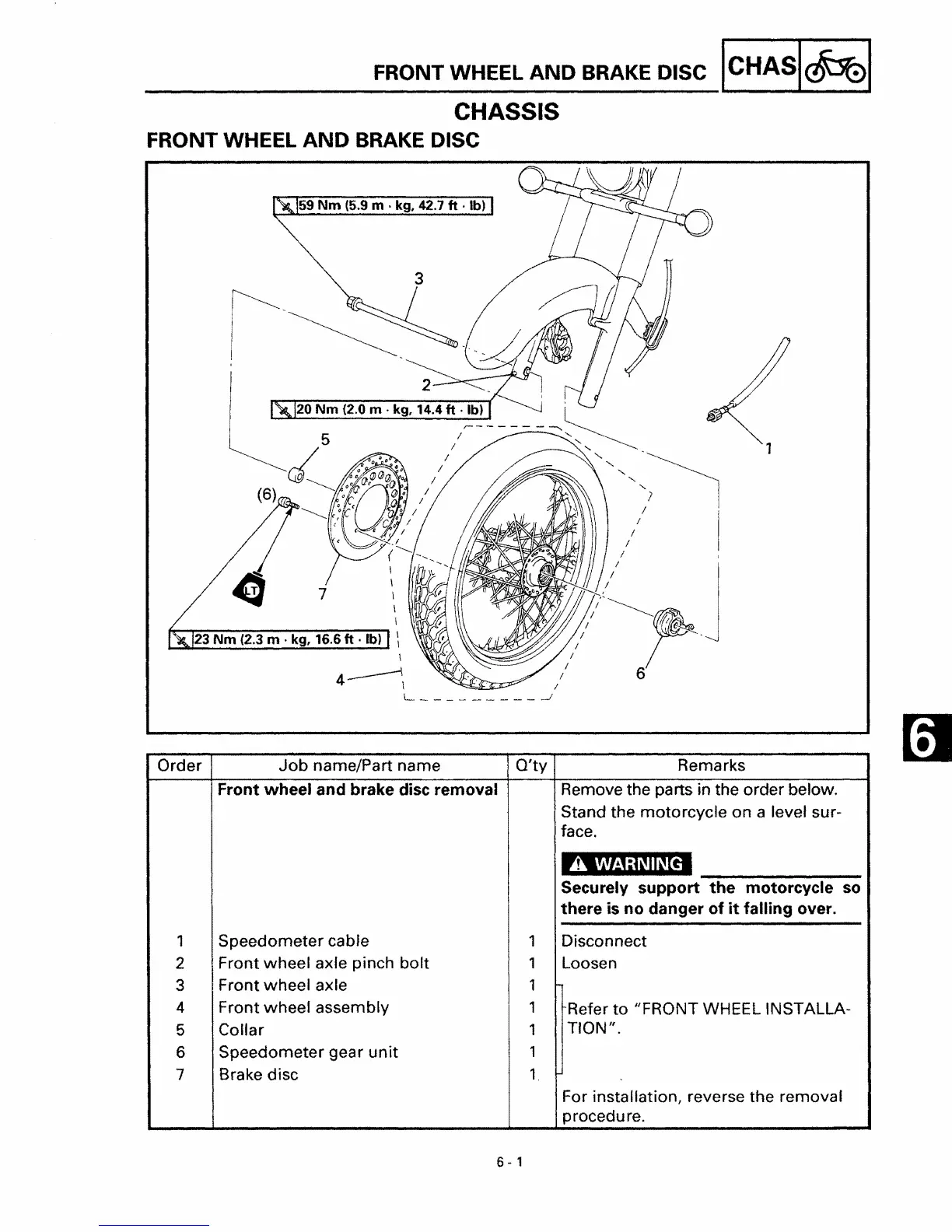

FRONT WHEEL AND BRAKE DISC ICHASI~I
CHASSIS
FRONT WHEEL AND BRAKE DISC
59 Nm (5.9 m . kg, 42.7 ft· Ib)
20
Nm {2.0 m . kg, 14.4 ft . Ib}
Order Job name/Part name
Front
wheel and brake disc removal
1
I
I
I
I
I
I J
I
I
/~
,/ ~.
/ 6
O'ty Remarks
Remove the parts in the order below.
Stand the motorcycle on a level sur-
face.
A WARNING
1
2
3
4
5
6
7
Speedometer cable
Front wheel axle pinch
bolt
Front wheel axle
Front wheel assembly
Collar
Speedometer gear
unit
Brake disc
Securely
support the motorcycle so
there
is no danger of it falling over.
1 Disconnect
1 Loosen
1
1 Refer to "FRONT WHEEL INSTALLA-
1 TION".
1
1
For installation, reverse the removal
procedure.
