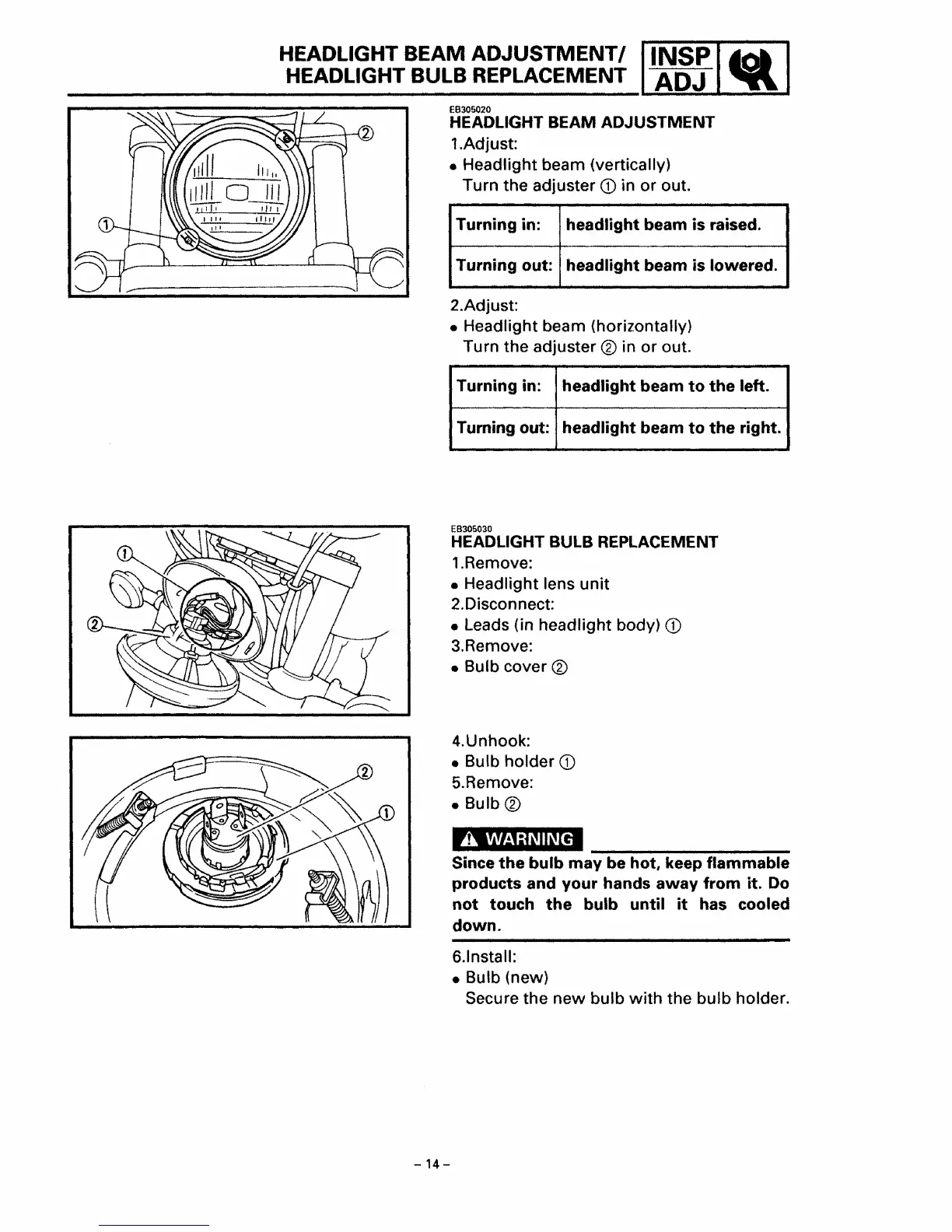

HEADLIGHT BEAM ADJUSTMENTI IINSP I'~ I
HEADLIGHT BULB REPLACEMENT ADJ ~
EB30S020
HEADLIGHT BEAM ADJUSTMENT
1.Adjust:
• Headlight beam (vertically)
Turn the adjuster
CD in or out.
Turning in: headlight beam is raised.
Turning out: headlight beam is lowered.
2.Adjust:
• Headlight beam (horizontally)
Turn the adjuster
® in or out.
Turning in: headlight beam
to the left.
Turning out: headlight beam
to the right.
EB305030
HEADLIGHT BULB REPLACEMENT
1.Remove:
• Headlight lens unit
2.Disconnect
• Leads (in headlight body)
CD
3.Remove:
• Bulb cover
®
4.Unhook:
•
Bu lb holder CD
5.Remove:
• Bulb
®
A WARNING
Since the bulb may be hot, keep flammable
products and
your hands away from it. Do
not touch the bulb until it has cooled
down.
6.1nstall:
• Bulb (new)
Secure the new bulb
with the bulb holder.
-14 -
