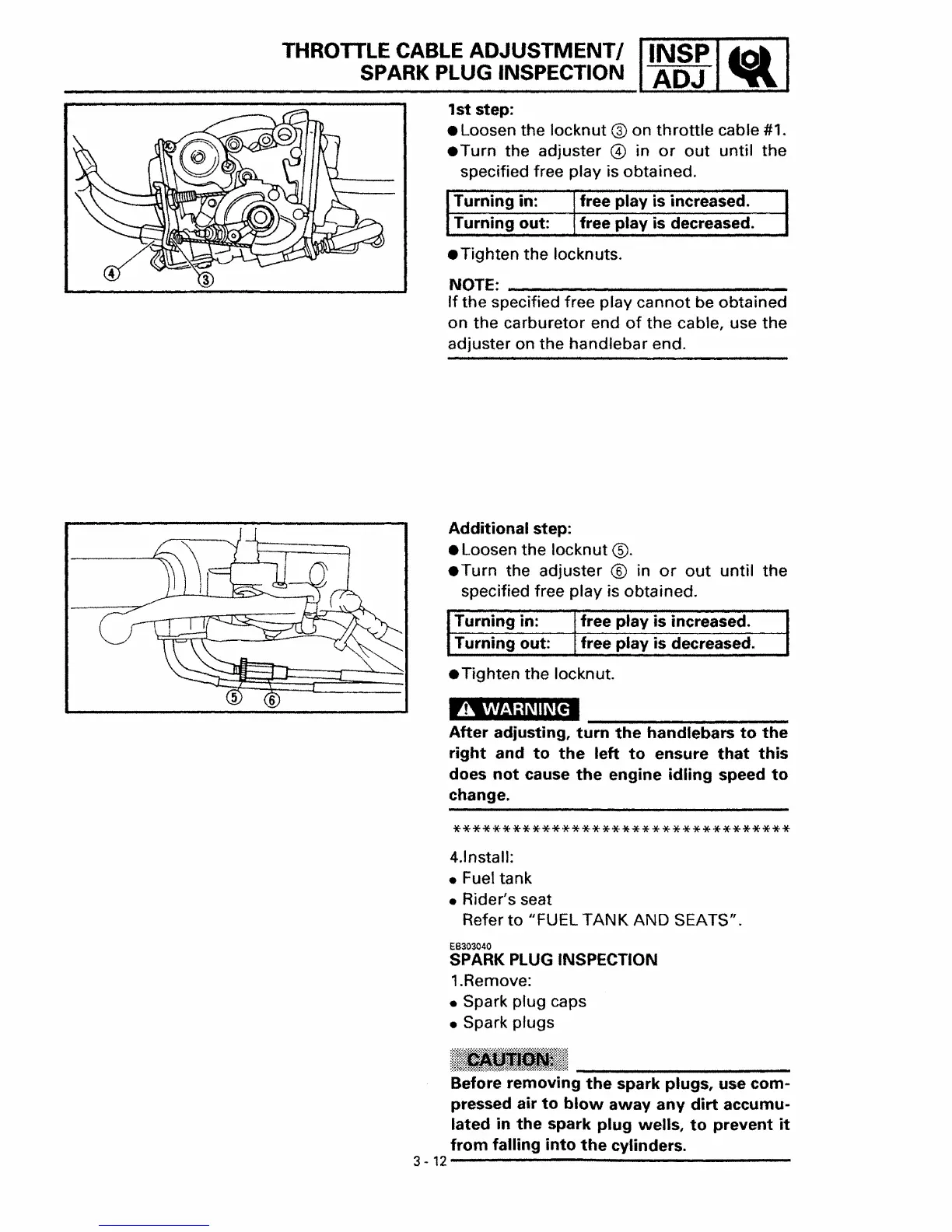

Yamaha XVS650 - Throttle Cable Adjustment; Spark Plug Inspection

1st step:
• Loosen the locknut
® on throttle cable #1.
• Turn the adjuster
@ in or out until the
specified free play is obtained.
• Tighten the locknuts.
NOTE: _
If the specified free play cannot be obtained
on the carburetor end
of the cable, use the
adjuster on the handlebar end.
free
play is increased.
free
play is decreased.
Turning out:
Turning in:
THROTTLE CABLE ADJUSTMENT/ IINSPI to) I
SPARK PLUG INSPECTION ADJ ~
• Tighten the locknut.
A WARNING
Additional step:
• Loosen the locknut
®.
• Turn the adjuster ® in or out until the
specified free play is obtained.
free play
is decreased.
free play
is increased.
Turning out:
Turning in:
After adjusting, turn the handlebars to the
right and to the left to ensure that this
does not cause the engine idling speed to
change.
**********************************
4.1nstall:
• Fuel tank
• Rider's seat
Refer
to "FUEL TANK AND SEATS".
EB303040
SPARK PLUG INSPECTION
1.Remove:
• Spark plug caps
• Spark plugs
Before removing
the spark plugs, use com
m
pressed air to blow away any dirt accumu-
lated
in the spark plug wells, to prevent it
from falling into the cylinders.
3~ 12----------------
