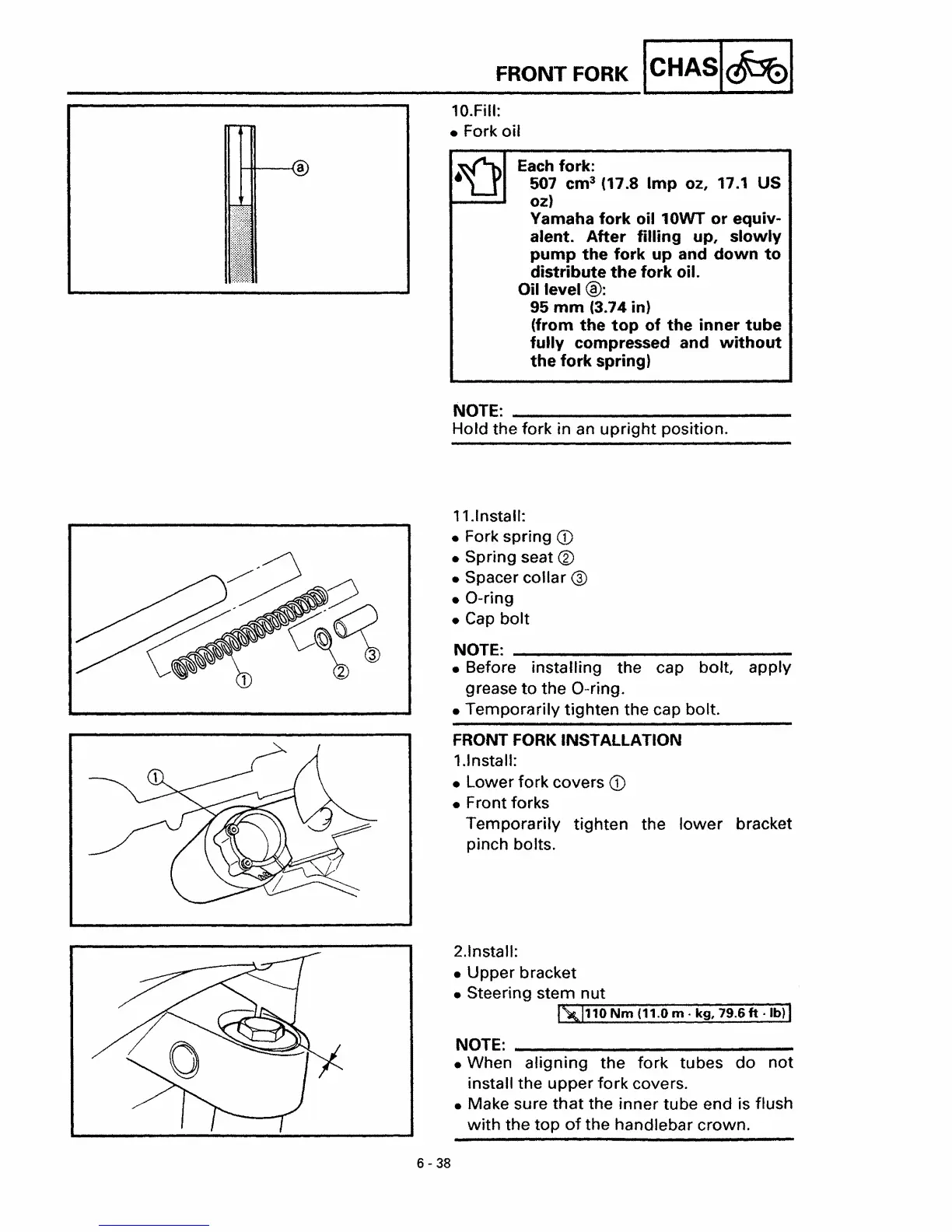

_____________ FR_O_N_T_F_O_RK_ICHASIAI
10.Fill:
• Fork
oil
Each fork:
507
cm
3
(17.8 Imp OZ, 17.1 US
oz)
Yamaha fork oil 10WT or equiv-
alent.
After filling up, slowly
pump the fork up and down to
distribute the fork oil.
Oillevel @:
95 mm (3.74 in)
(from
the top of the inner tube
fully compressed and without
the fork spring)
NOTE: _
Hold the fork in an upright position.
11.1 nstaII:
• Fork spring CD
• Spring seat ®
• Spacer collar @
• O-ring
• Cap
bolt
NOTE: _
• Before installing the cap bolt, apply
grease to the O-ring.
•
Temporarily tighten the cap bolt.
FRONT FORK INSTALLATION
1.1nstall:
•
Lower fork covers <D
• Front forks
Temporarily tighten the lower bracket
pinch bolts.
2.lnstall:
•
Upper bracket
• Steering
stem nut
~~11~O~N~m---(1-1.""'O-m-.""'k-g~, 7-:'9-:'.6~ft-.-::lb~H
NOTE: _
• When aligning the fork tubes do not
install the upper fork covers.
• Make sure
that the inner tube end is flush
with the top of the handlebar crown.
6 - 38
