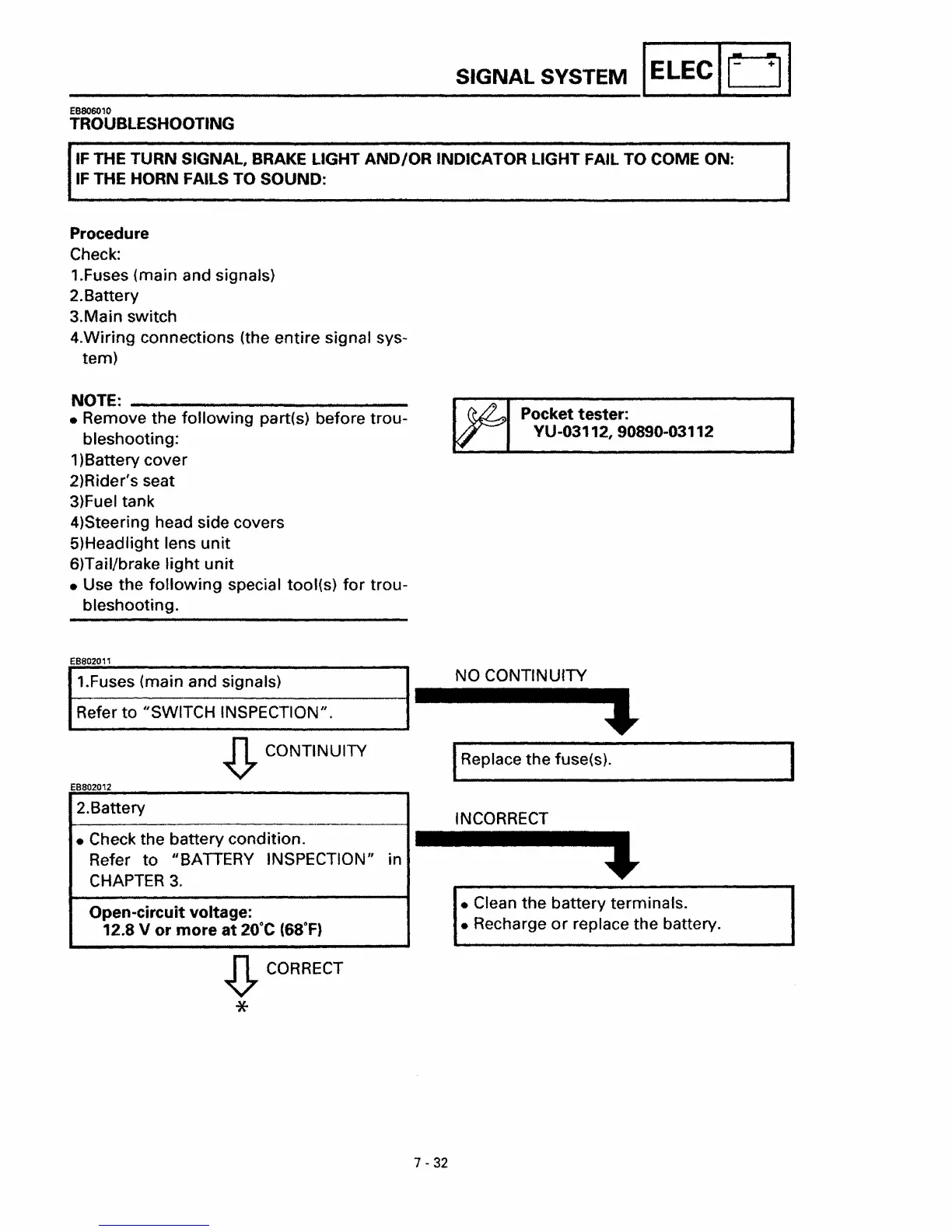

SIGNAL SYSTEM I
ELEC
I
[:=J
I
EB806010
TROUBLESHOOTING
IF
THE TURN SIGNAL, BRAKE LIGHT
AND/OR
INDICATOR LIGHT FAIL TO COME ON:
IF
THE HORN FAILS TO SOUND:
Procedure
Check:
1.Fuses (main and signals)
2.
Battery
3.Main switch
4.Wiring connections (the entire signal sys-
tem)
NOTE: _
• Remove the following part(s) before trou-
bleshooting:
1)Battery cover
2)Rider's seat
3)Fuel tank
4)Steering head side covers
5)Headlight lens unit
6)Tail/brake
light
unit
• Use the
following
special tool(s)
for
trou-
bleshooting.
Pocket
tester:
YU-03112, 90890-03112
EB802011
1.Fuses (main and signals)
Refer
to
"SWITCH INSPECTION".
~
CONTINUITY
EB802012
2.Battery
• Check the battery condition.
Refer to
"BATIERY INSPECTION" in
CHAPTER
3.
Open-circuit voltage:
12.8 V
or
more
at
20°C
(68°F)
~
CORRECT
*
NO
CONTINUITY
IReplace
the
fuse(s).
INCORRECT
• Clean the battery terminals.
• Recharge
or
replace the battery.
7 - 32
