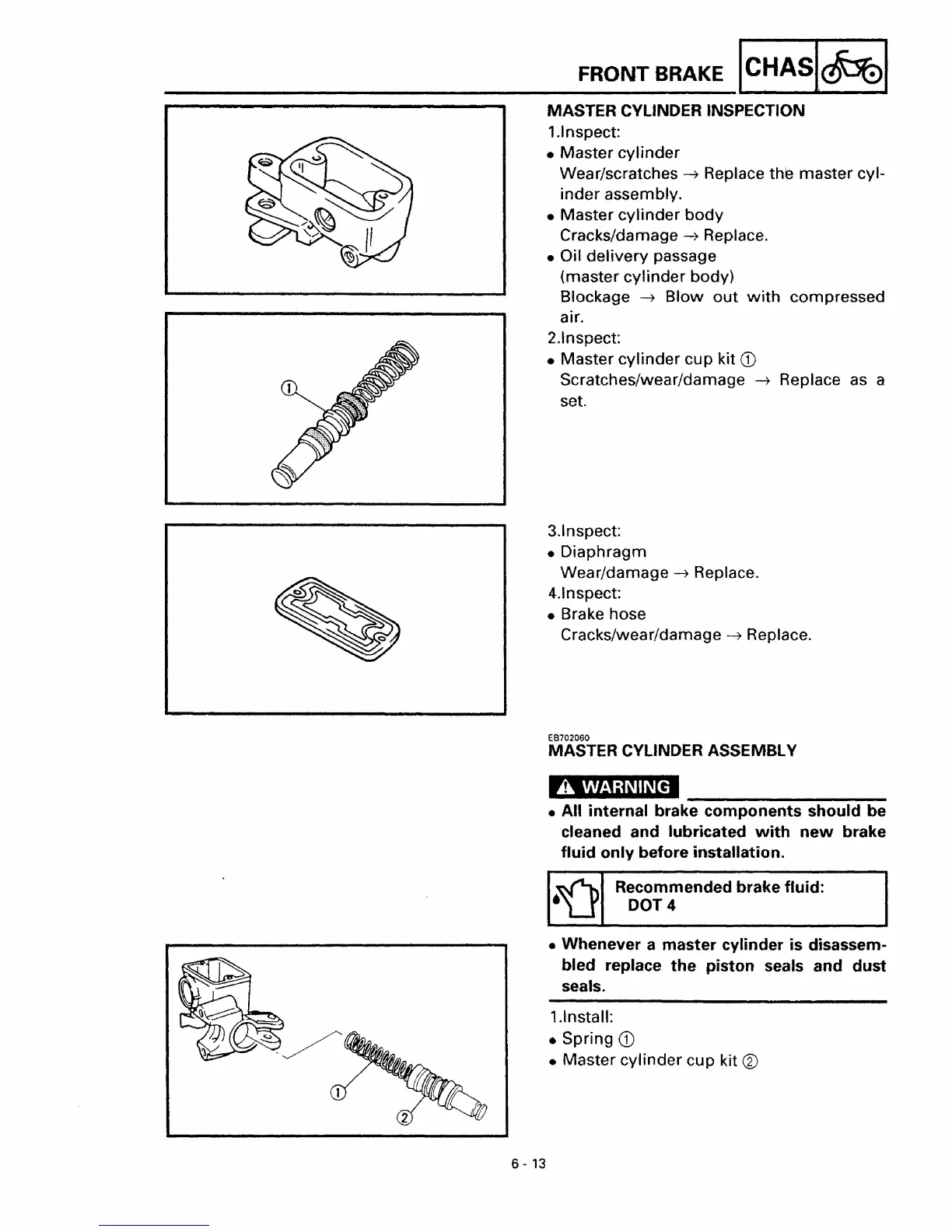

FRONT BRAKE ICHASl~1
MASTER CYLINDER INSPECTION
1.lnspect:
• Master cylinder
Wear/scratches
--7 Replace the master cyl-
inder assembly.
• Master cylinder body
Cracks/damage
--7 Replace.
• Oil delivery passage
(master cylinder body)
Blockage
--7 Blowout with compressed
air.
2.1nspect:
• Master cylinder cup kit
CD
Scratches/wear/damage --7 Replace as a
set.
3.1nspect:
• Diaphragm
Wea r/damage
--7 Replace.
4.lnspect:
• Brake hose
Cracks/wear/damage
--7 Replace.
EB702060
MASTER CYLINDER ASSEMBLY
~
----------
• All internal brake components should be
cleaned and lubricated
with new brake
fluid only before installation.
~ Recommended brake fluid:
·V DOT 4
• Whenever a master cylinder is disassem-
bled replace
the piston seals and dust
seals.
1.1nstall:
• Spring
CD
• Master cylinder cup kit ®
