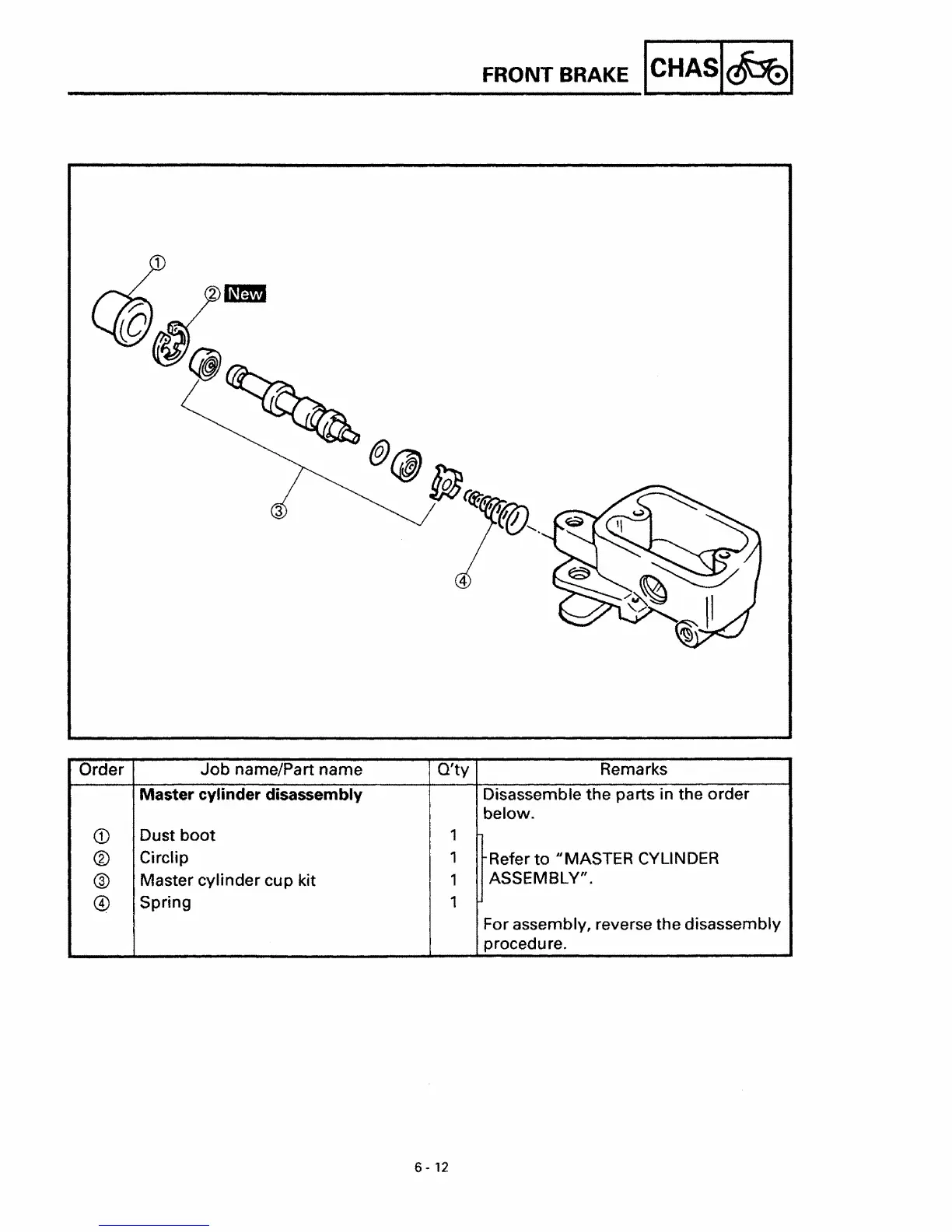

FRONT BRAKE ICHASIAI
Order
Job name/Part name
Q'ty Remarks
Master cylinder disassembly
Disassemble the parts in the order
below.
CD
Dust boot
1
®
Circlip
1
Refer to "MASTER CYLINDER
®
Master cylinder cup kit
1
ASSEMBLY".
@
Spring
1
For assembly, reverse the disassembly
procedure.
6 - 12
