Yamaha XVS650 - Page 212

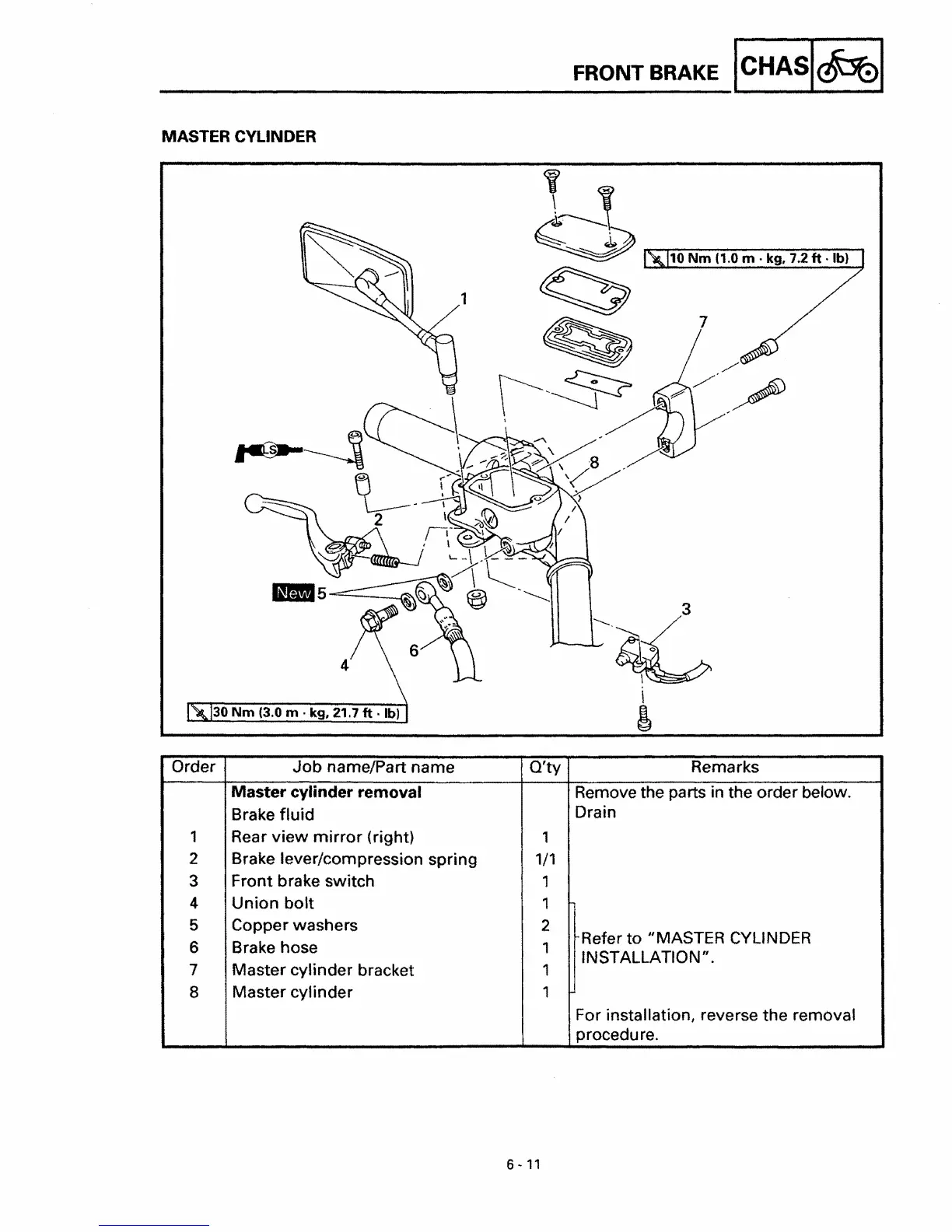

MASTER CYLINDER
4
30 Nm (3.0 m· kg, 21.7 it· Ibl
FRONT BRAKE ICHASI~I
10 Nm (1.0 m· kg, 7.2 it ·Ib)
7
Order
Job name/Part name
Q'ty
Remarks
Master cylinder removal
Remove the parts in the order below.
Brake fluid
Drain
1
Rear view mirror (right)
1
2
Brake lever/compression spring 1/1
3
Front brake switch
1
4 Union bolt
1
5 Copper washers
2
6
Brake hose
1
Refer to "MASTER CYLINDER
INSTALLATION".
7 Master cylinder bracket
1
8
Master cylinder 1
For installation, reverse the removal
procedure.
