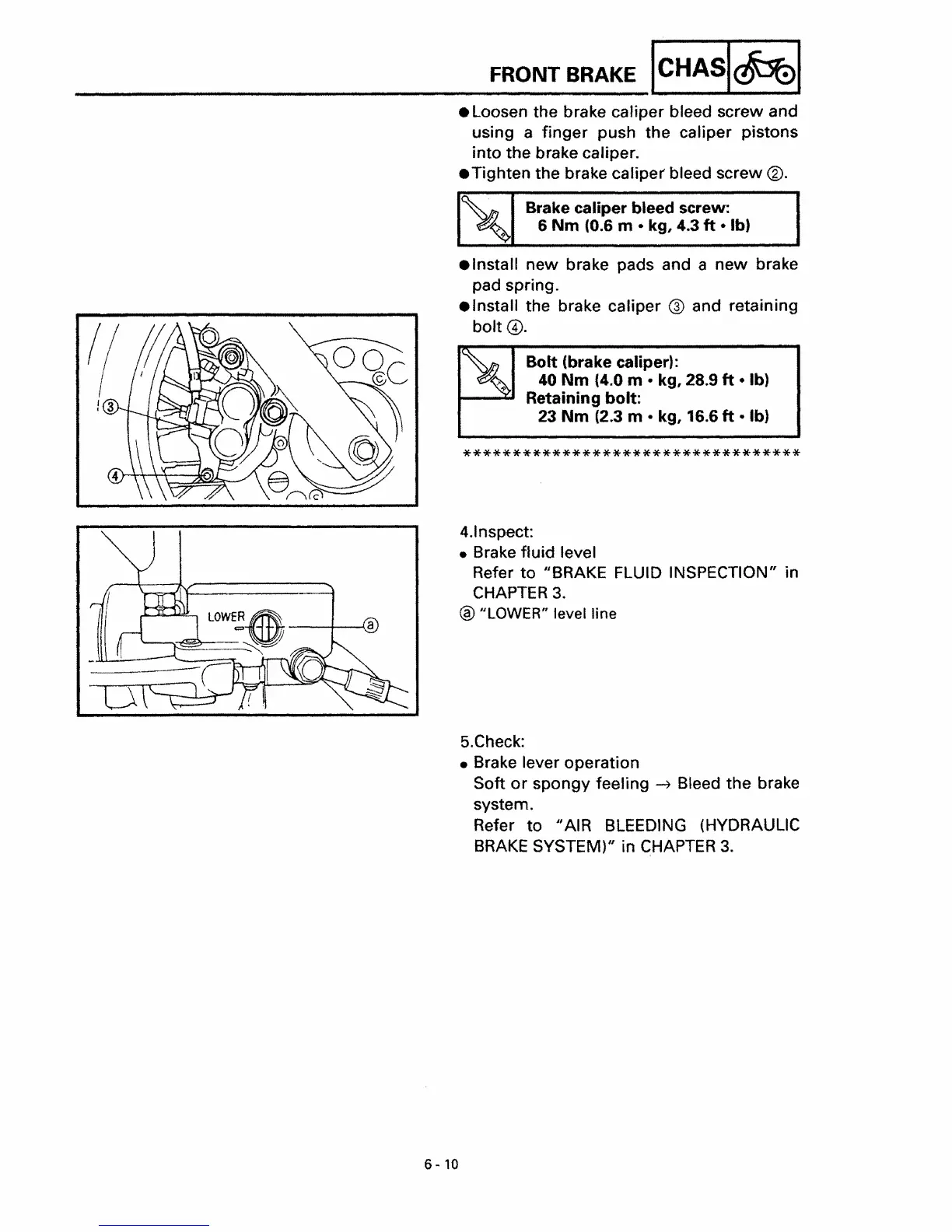

FRONT BRAKE I
CHASIAI
• Loosen the brake caliper bleed screw and
using a finger push the caliper pistons
into the brake caliper.
• Tighten the brake caliper bleed screw
®.
~
.b.
Brake caliper bleed screw:
~~
6
Nm
(0.6 m • kg, 4.3
ft
• Ib)
.Install
new brake pads and a
new
brake
pad spring.
• 'nstall the brake caliper
@ and retaining
bolt@.
Bolt
(brake caliper):
40
Nm
(4.0 m •kg, 28.9 ft •
Ib)
Retaining
bolt:
23
Nm
(2.3 m • kg, 16.6
ft
·Ib)
**********************************
4.lnspect:
• Brake fluid level
Refer
to
"BRAKE FLUID INSPECTION" in
CHAPTER
3.
® "LOWER" level line
5.Check:
• Brake lever operation
Soft
or
spongy feeling
~
Bleed
the
brake
system.
Refer to
JI
AIR
BLEEDING (HYDRAULIC
BRAKE
SYSTEMV' in
CHAPTER
3.
6 -
10
