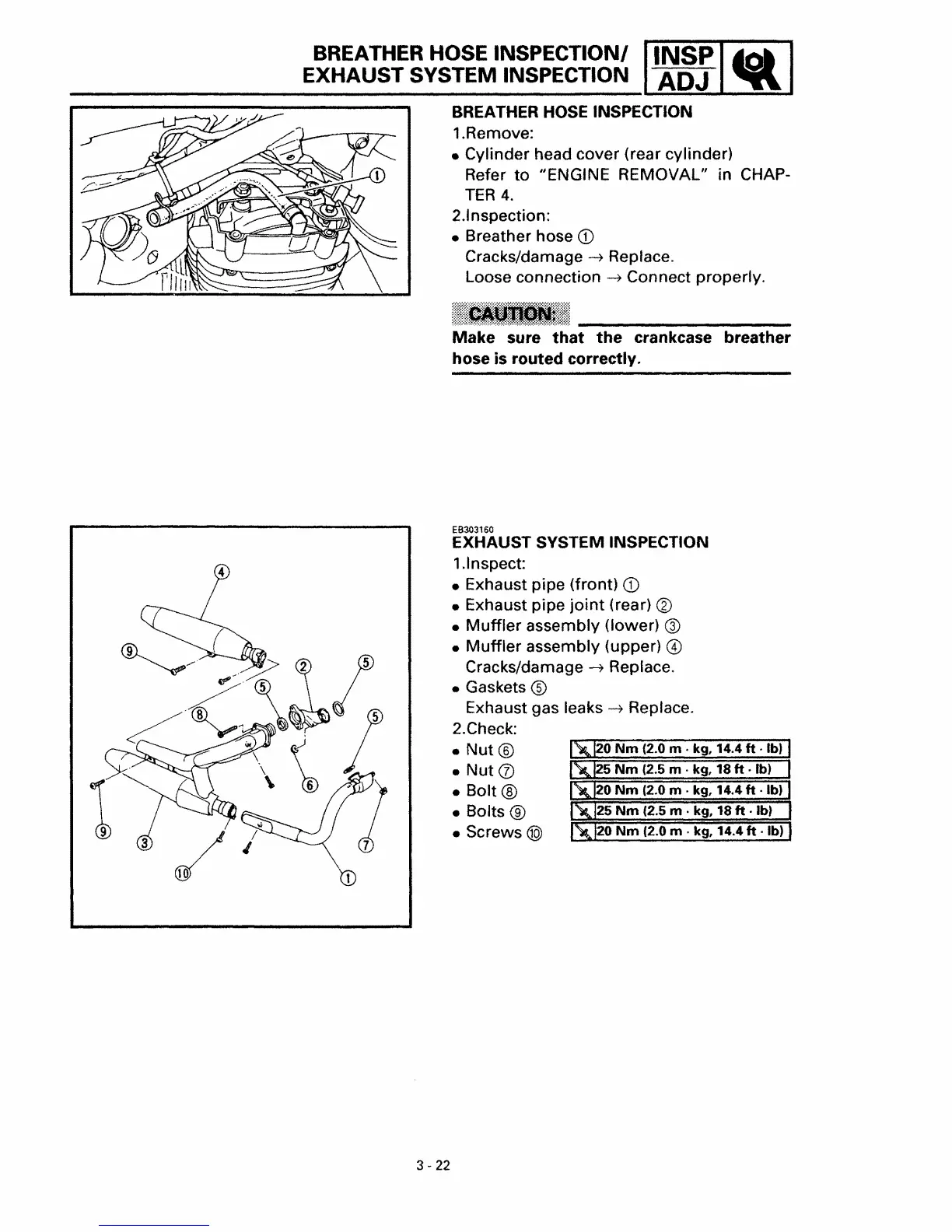

Yamaha XVS650 - Breather Hose Inspection; Exhaust System Inspection

[~]20 Nm (2.0 m . kg, 14.4 It . Ib)
~25 Nm (2.5 m . kg, 18 It . Ib)
~20 Nm (2.0 m . kg, 14.4 It . Ib)
~25 Nm (2.5 m . kg, 18 It . Ib)
~20 Nm (2.0 m . kg, 14.4 It . Ib)
4
BREATHER HOSE INSPECTION/ IINSP I to) I
EXHAUST SYSTEM INSPECTION ADJ ~
......,;;"..,;;;,;;;;;;;;;,~iI.---. .........
BREATHER HOSE INSPECTION
1.Remove:
• Cylinder head cover (rear cylinder)
Refer
to IIENGINE REMOVAL" in CHAP-
TER 4.
2.1 nspection:
• Breather hose
<D
Cracks/damage ~ Replace.
Loose connection
~ Connect properly.
~~l~jlj~1111_~~~l~1! _
Make sure that the crankcase breather
hose is routed correctly.
EB303160
EXHAUST SYSTEM INSPECTION
1.lnspect:
• Exhaust pipe (front)
CD
• Exhaust pipe joint (rear) @
• Muffler assembly (lower) @
• Muffler assembly (upper) @
Cracks/damage -1 Replace.
• Gaskets
®
Exhaust gas leaks ---7 Replace.
2.Check:
•
Nut®
• Nut (J)
• Bolt@
• Bolts ®
• Screws@
3 - 22
