Yamaha XVS650 - Caliper Inspection

~~
q-o

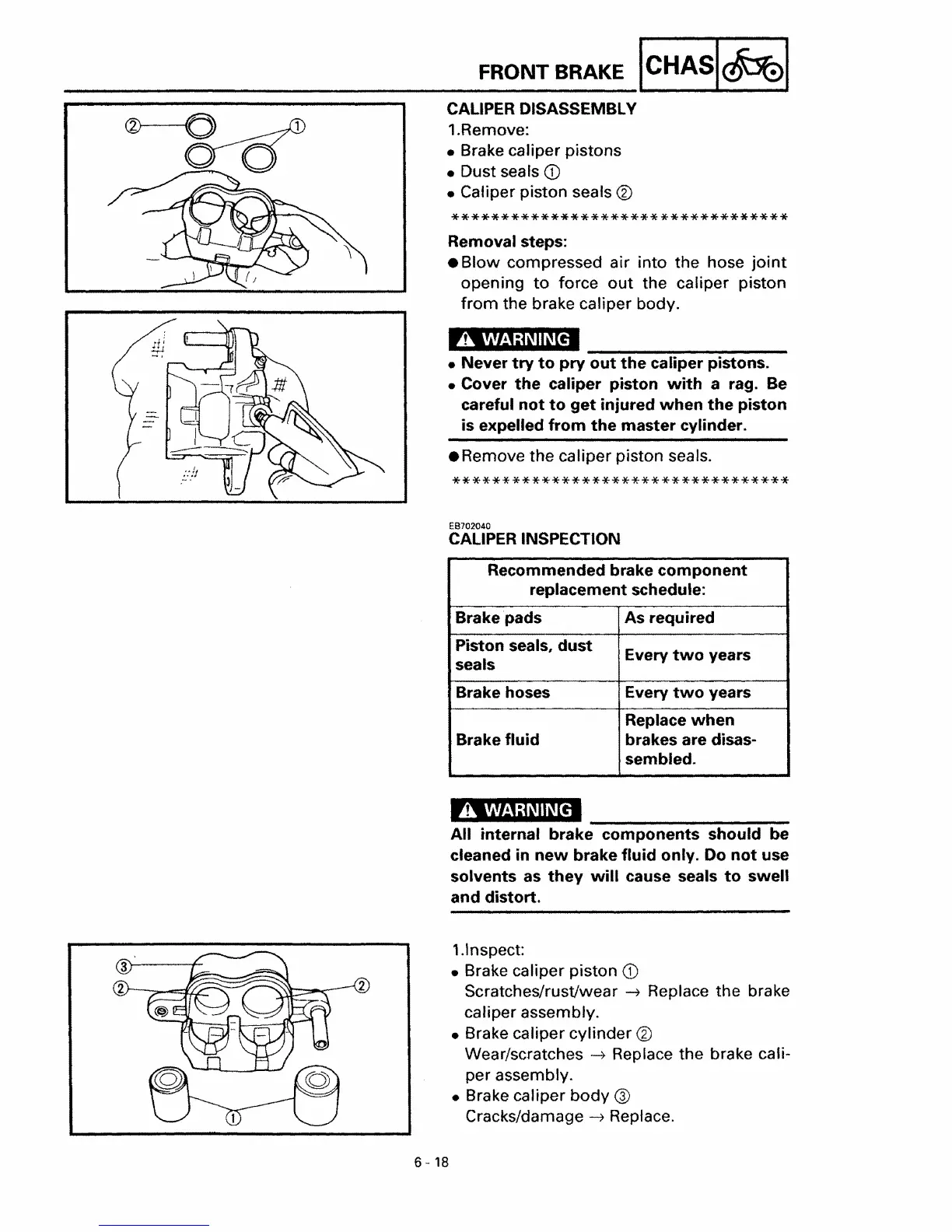

FRONT BRAKE ICHASI~I
CALIPER OISASSEMBLV
1.Remove:
• Brake caliper pistons
• Dust seals
CD
• Caliper piston seals ®
**********************************
Removal steps:
•
Blow compressed air into the hose joint
opening to force out the caliper piston
from the brake caliper body.
A WARNING
• Never try to pry out the caliper pistons.
• Cover
the caliper piston with a rag. Be
careful
not to get injured when the piston
is expelled from the master cylinder.
• Remove
the caliper piston seals.
**********************************
EB702040
CALIPER INSPECTION
Recommended brake
component
replacement schedule:
Brake pads
As required
Piston seals,
dust
Every two years
seals
Brake hoses
Every
two years
Replace
when
Brake fluid
brakes are disas-
sembled.
A WARNING
All internal brake components should be
cleaned in
new brake fluid only. Do not use
solvents as
they will cause seals to swell
and distort.
1.lnspect:
• Brake caliper piston
CD
Scratches/rust/wear ~ Replace the brake
caliper assembly.
• Brake caliper cylinder
®
Wear/scratches ~ Replace the brake cali-
per assembly.
• Brake caliper
body @
Cracks/damage ~ Replace.
6 - 18
