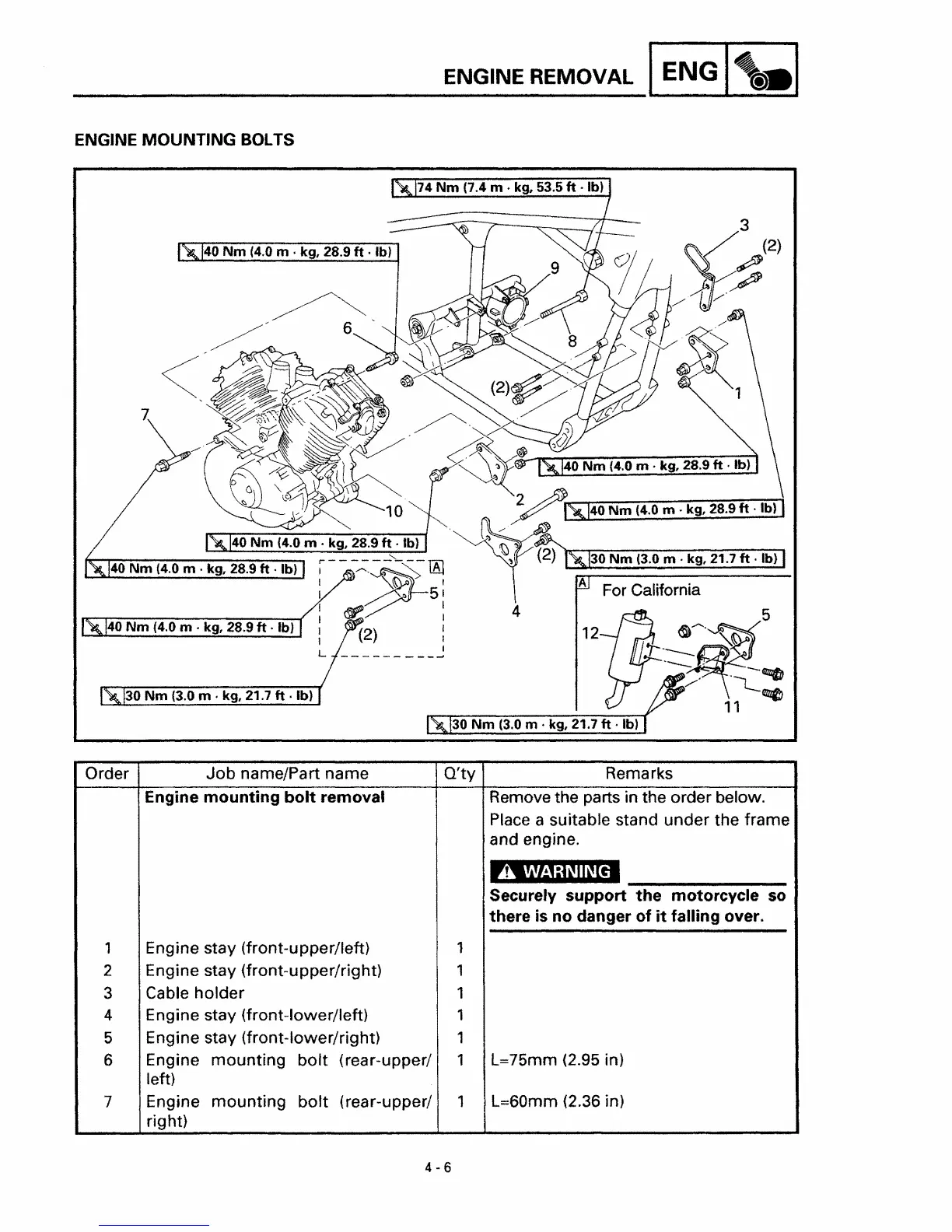

ENGINE REMOVAL
ENG
@).
ENGINE
MOUNTING
BOl
T8
74
Nm
(7.4
m·
kg, 53.5 It
·Ib)
40
Nm
(4.0
m . kg, 28.9 It . Ib)
1
40
Nm
(4.0 m . kg, 28.9 It . Ib)
30
Nm
(3.0 m . kg, 21.7
It·
Ib)
Order
Job
name/Part name
Engine
mounting
bolt
removal
Q'ty
Rema rks
Remove the parts in the order below.
Place a suitable stand
under
the frame
and engine.
A
WARNING
Securely
support
the
motorcycle
so
there
is no danger
of
it
falling over.
1 Engine stay (front-upper/left) 1
2 Engine stay (front-upper/right)
1
3 Cable
holder
1
4 Engine stay (front-lower/left) 1
5 Engine stay (front-lower/right) 1
6 Engine mounting
bolt
(rear-upper/ 1 L=75mm (2.95 in)
left)
7 Engine
mounting
bolt
(rear-upper/ 1 L=60mm (2.36 in)
right)
To Next Page
