Yamaha XVS650 - Page 114

40 Nm (4.0 m . kg, 28.9 ft . Ib)
7
40 Nm (4.0 m . kg, 28.9 ft . Ib)
30
Nm (3.0 m· kg, 21.7 ft .Ib)

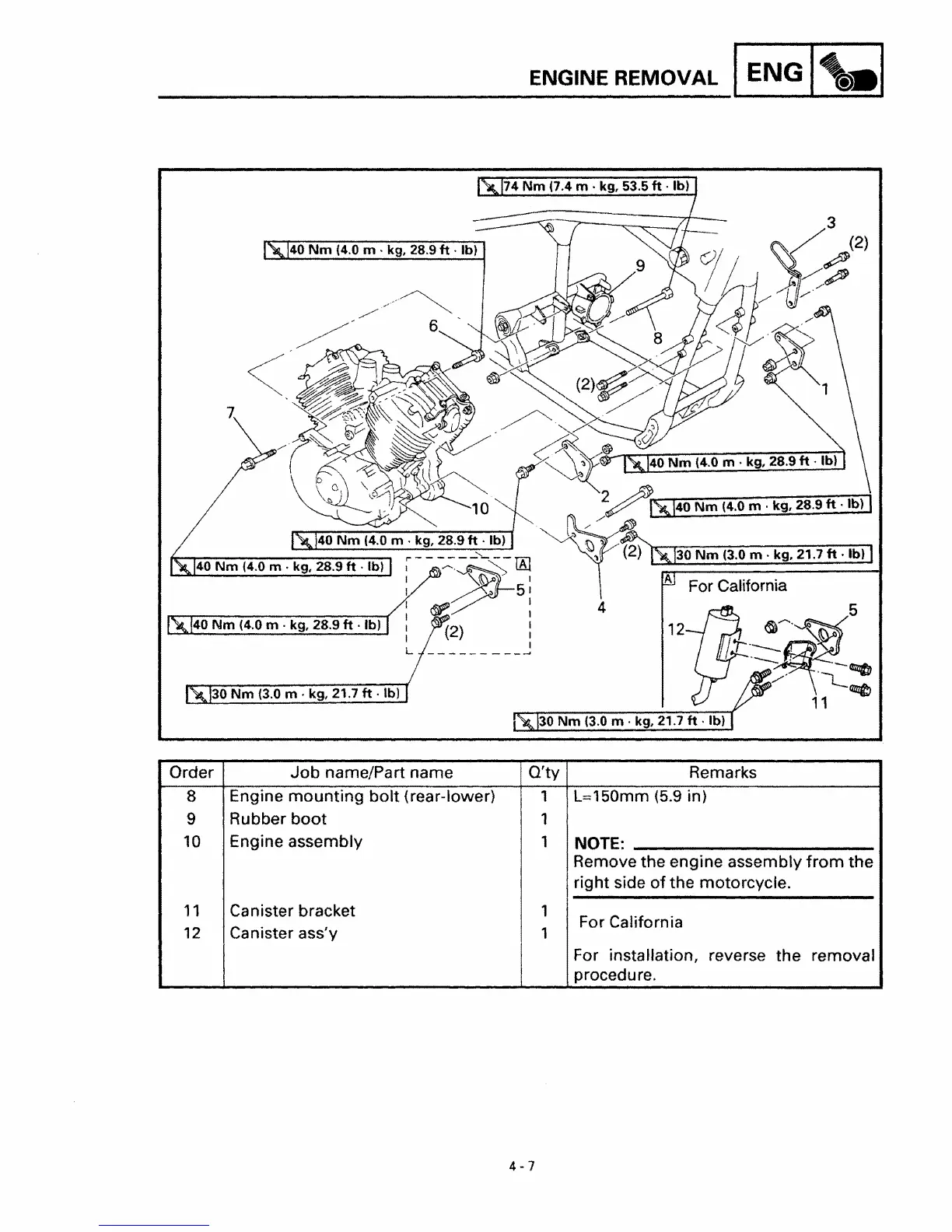

ENGINE REMOVAL ENG
74 Nm (7.4 m· kg, 53.5 ft· Ib)
Order
Job name/Part name
Q'ty
Remarks
8
Engine
mounting bolt (rear-lower) 1
L:::::150mm (5.9 in)
9
Rubber boot 1
10
Engine assembly
1
NOTE:
Remove the engine assembly from the
right side
of the motorcycle.
11
Canister bracket
1
For California
12 Canister ass'y
1
For installation,
reverse the removal
procedure.
4-7
