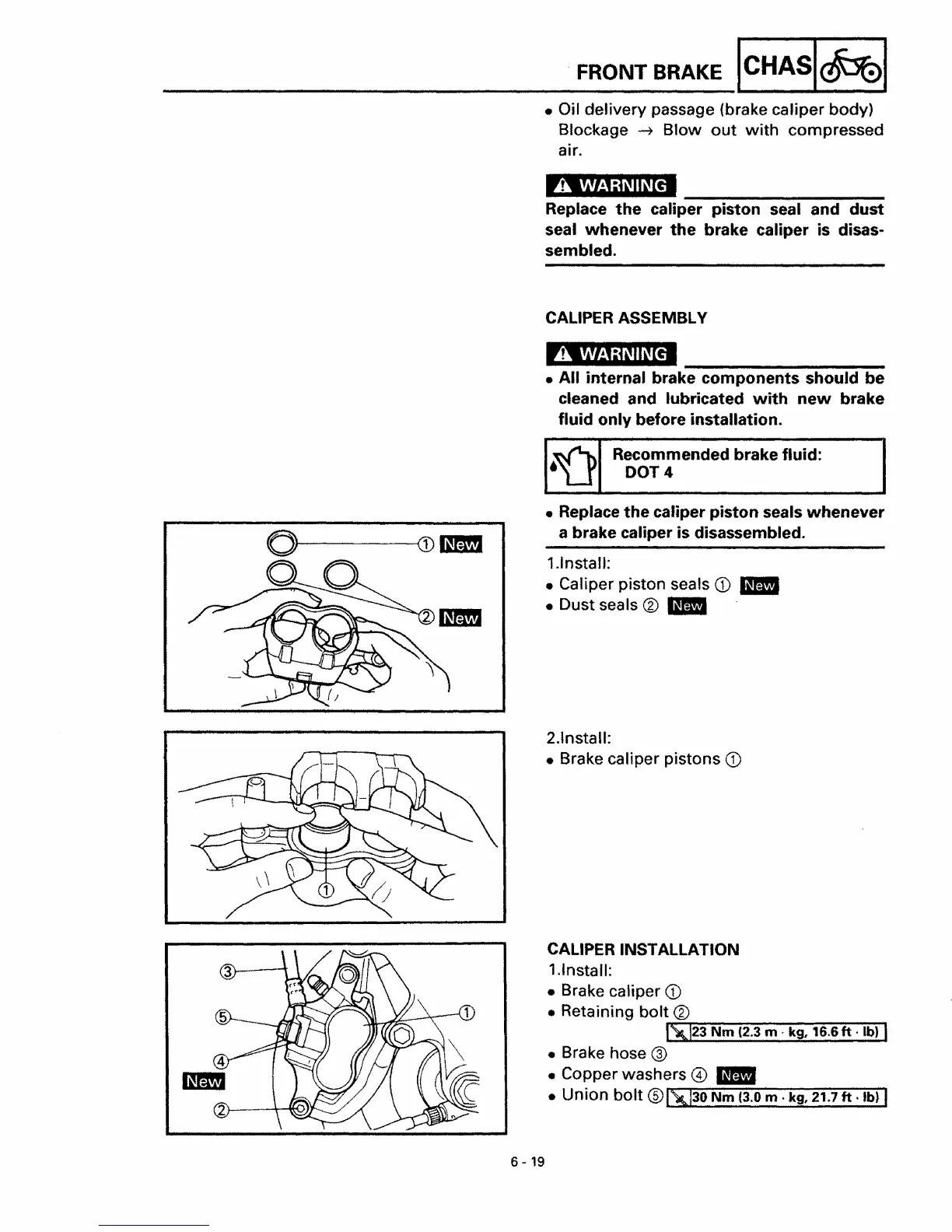

Yamaha XVS650 - Caliper Assembly; Caliper Installation

f-------(j) ..
FRONT BRAKE I
CHAS
I<ffi::5fu1
• Oil delivery passage (brake caliper body)
Blockage -t Blowout with compressed
air.
A WARNING
Replace the caliper piston seal and dust
seal whenever the brake caliper is disas-
sembled.
CALIPER ASSEMBLY
A WARNING
• All internal brake components should be
cleaned and lubricated
with new brake
fluid only before installation.
~ Recommended brake fluid:
·U 00T4
• Replace the caliper piston seals whenever
a brake caliper is disassembled.
1.1nstall:
• Caliper
piston seats CD ..
• Dust seals ® ..
2.1nstall:
• Brake caliper
pistons CD
CALIPER INSTALLATION
1.lnstall:
• Brake caliper
CD
• Retaining bolt ®
~~3 ~N:--m-::(~2.~3 -m-. -:-kg-,-::'1~6.~6 ~ft-· ':':"'lb~q
• Brake hose ®
• Copper washers @ ..
• Union bolt ® ~~30~N--m~(3-.0-m-. k-g-, 2--1--.7~ft-.~lb~q
6 - 19
