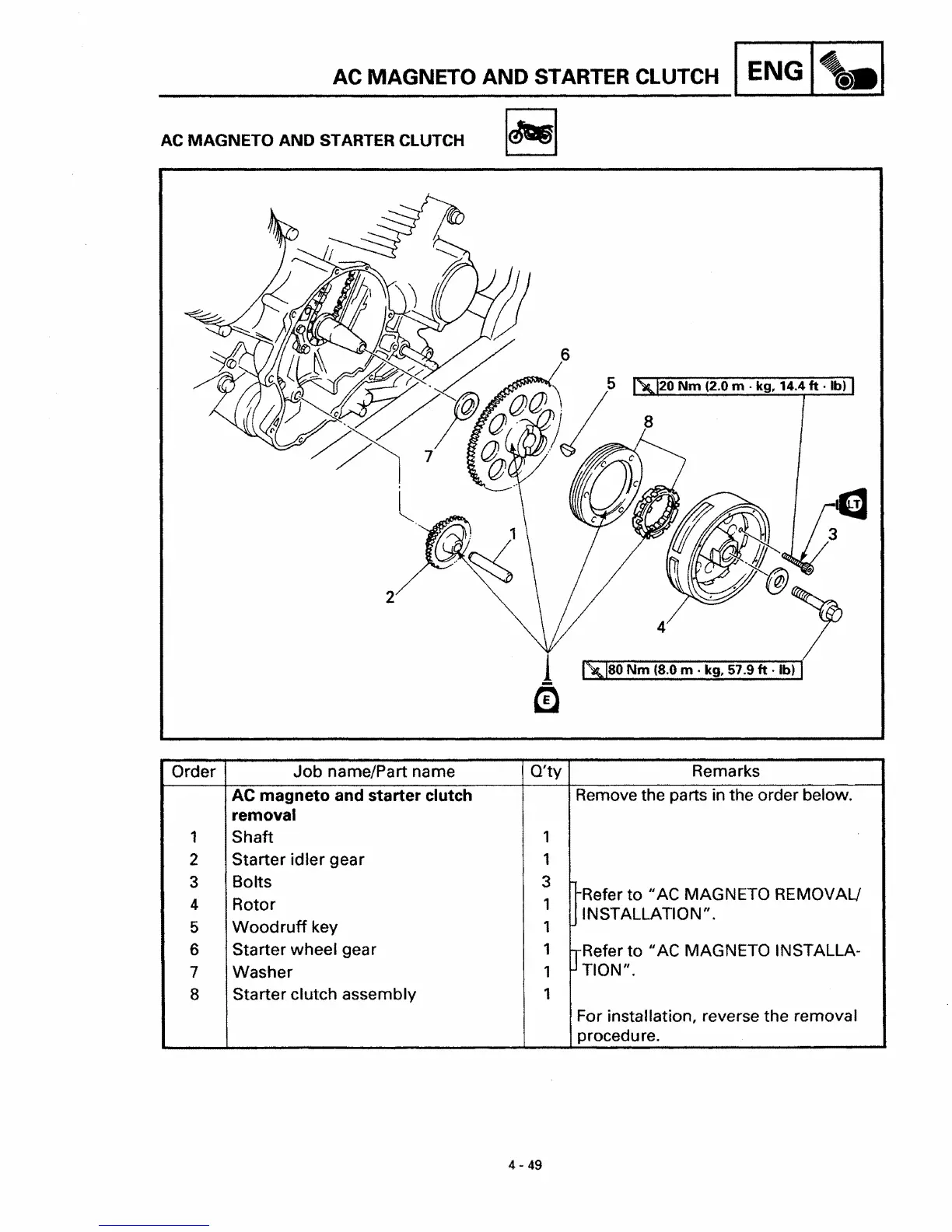

AC MAGNETO AND STARTER CLUTCH ENG
AC MAGNETO AND STARTER CLUTCH
1 80 Nm (8.0 m· kg, 57.9 It ·Ib)
m
ad
3
Order Job name/Part name
Q'ty
Remarks
AC magneto and starter clutch
Remove the parts in the order below.
removal
1 Shaft
1
2 Starter idler gear
1
3
Bolts 3
4
Rotor
1
J~eferto HAC MAGNETO REMOVAU
INSTALLA TI ON" .
5
Wood ruff key 1
6 Starter wheel gear
1
rRefer to 11 AC MAGNETO INSTALLA-
7 Washer
1
TION".
8
Starter clutch assembly
1
For installation, reverse the removal
procedure.
4 - 49
