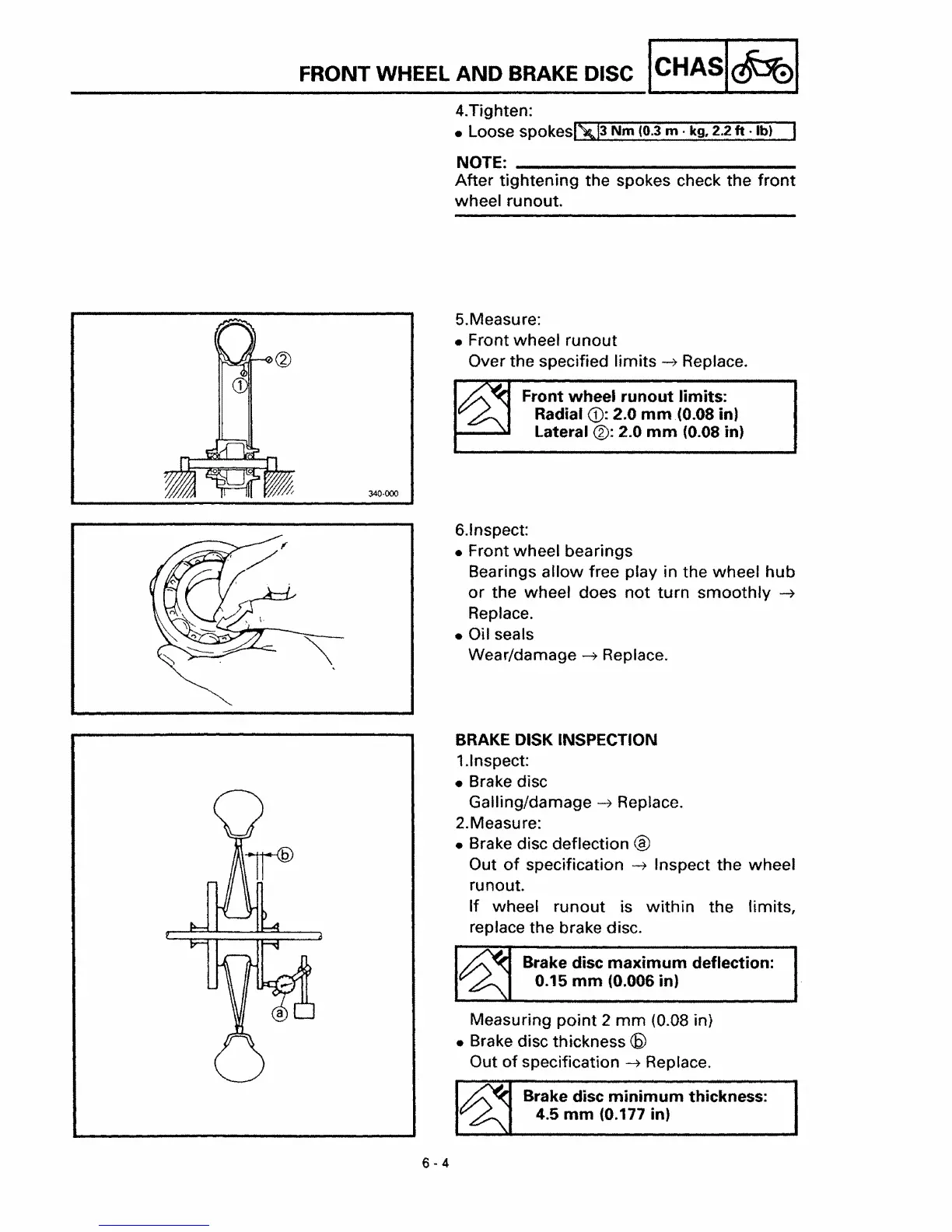

FRONT WHEEL AND BRAKE DISC ICHASI~I
4.Tighten:
• Loose
spokes~3 Nm (0.3 m . kg. 2.2 It . Ib) I
NOTE: _
After tightening the spokes check the front
wheel runout.
5.Measure:
• Front wheel
runout
Over the specified limits -7 Replace.
Front
wheel runout limits:
Radial CD: 2.0 mm(0.08 in)
Lateral
®: 2.0 mm (0.08 in)
340·000
6.1nspect:
• Front wheel bearings
Bearings
allow free play in the wheel hub
or the wheel does not turn smoothly ~
Replace.
•
Oil seals
Wear/damage
-7 Replace.
Measuring
point 2 mm (0.08 in)
• Brake disc thickness
(£)
Out of specification -7 Replace.
BRAKE DISK INSPECTION
1.1nspect
• Brake disc
Galling/damage
-7 Replace.
2.Measure:
• Brake disc deflection
®
Out of specification -7 Inspect the wheel
runout.
If wheel runout is within the limits,
replace the brake disc.
Brake disc
minimum thickness:
4.5 mm (0.177 in)
Brake disc
maximum deflection:
0.15 mm (0.006 in)
6-4
