Yamaha XVS650 - Front Fork Assembly

~~~~~~~~~~~~F_R_O_N_T_ro_R_K_ICHA~~1
EB703030

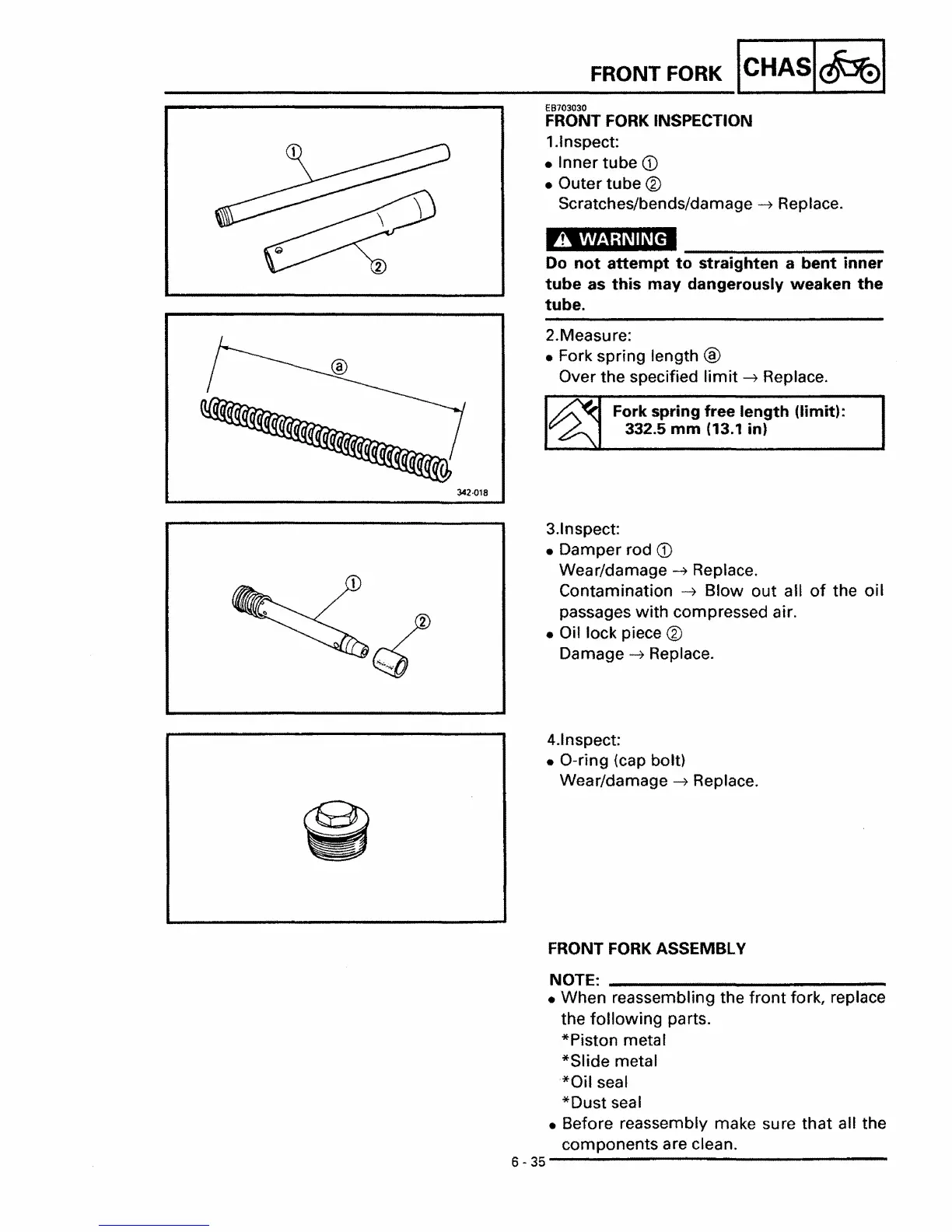

FRONT FORK INSPECTION
1.1nspect:
• Inner tube
CD
• Outer tube ®
Scratches/bends/damage ---? Replace.
A WARNING
Do not attempt to straighten a bent inner
tube as this may dangerously weaken the
tube.
2.Measure:
• Fork spring length
®
Over the specified limit ---? Replace.
Fork spring free length (limit):
332.5
mm (13.1 in)
342·018
3.1nspect:
• Damper rod
CD
Wear/damage ---? Replace.
Contamination
-7 Blowout all of the oil
passages with compressed air.
• Oil lock piece
®
Damage ---? Replace.
4.1nspect:
•
a-ring (cap bolt)
Wear/damage
---? Replace.
FRONT FORK ASSEMBLY
NOTE: _
• When reassembling the front fork, replace
the
following parts.
*Piston metal
*Slide metal
*Oil seal
*Dust seal
• Before reassembly make sure
that all the
components are clean.
6 ~ 35----------------
