CHASSIS

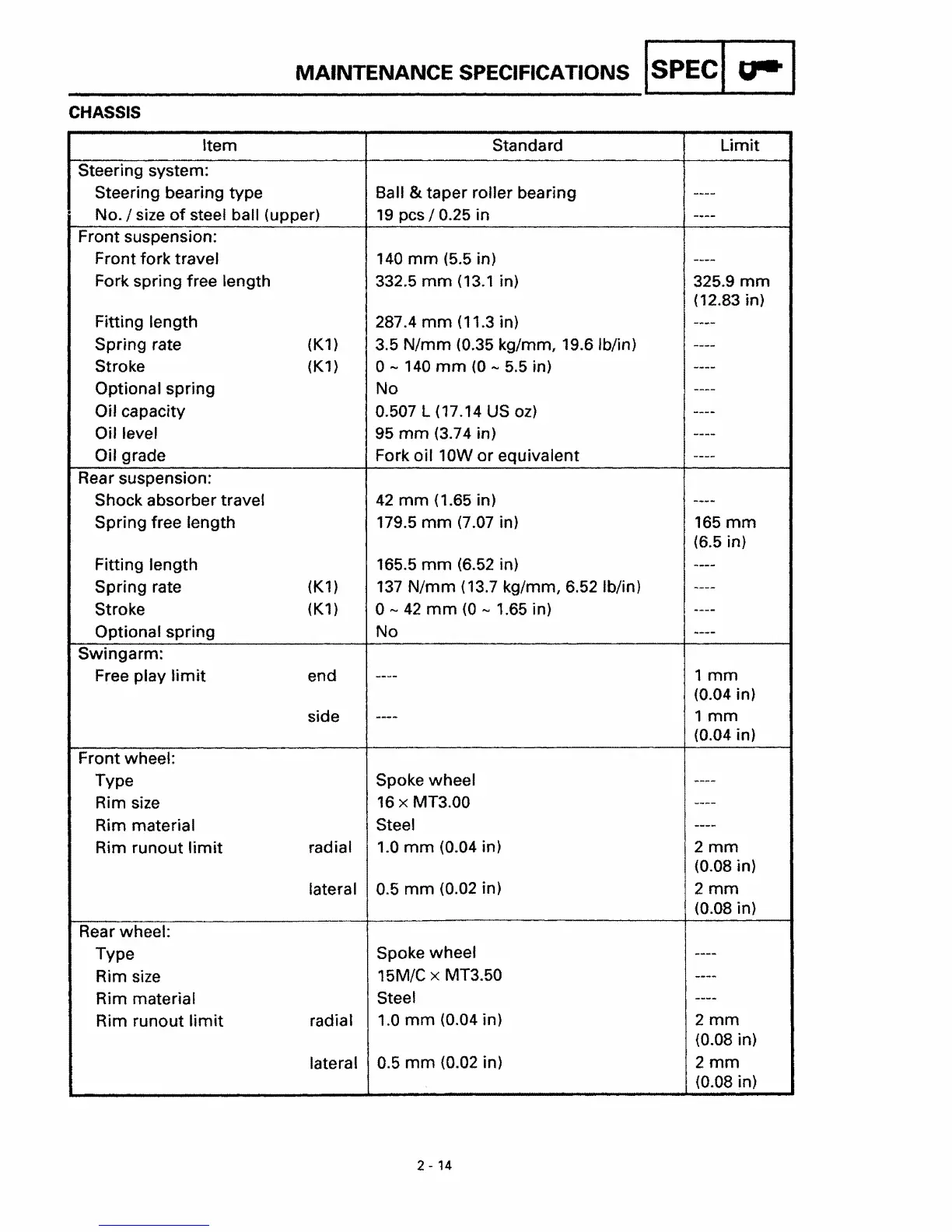

MAINTENANCE SPECIFICATIONS ISPECI U-I
Item Standard
Limit
Steering system:
Steering bearing type
Ball
& taper roller bearing
----
No. I size of steel ball (upper) 19 pcs 10.25 in
-.--
Front suspension:
Front fork travel
140 mm (5.5 in)
----
Fork spring free length 332.5 mm (13.1 in)
325.9
mm
(12.83 in)
Fitting length
287.4
mm (11.3 in)
----
Spring rate
(K1 )
3.5 N/mm (0.35 kg/mm, 19.6 Ib/in)
----
Stroke
(K1 )
o- 140 mm (0 - 5.5 in)
----
Optional spring No
----
Oil capacity 0.507 L (17.14 US oz)
----
Oilleve)
95 mm (3.74 in)
----
Oil grade Fork oil lOW or equivalent
----
Rear suspension:
Shock absorber travel
42 mm (1.65 in)
----
Spring free length
179.5
mm (7.07 in)
165 mm
(6.5 in)
Fitting length
165.5
mm (6.52 in)
----
Spring rate
(K1 )
137 N/mm (13.7 kg/mm, 6.52 Ib/in)
----
Stroke
(K1 )
0- 42 mm (0 - 1.65 in)
----
Optional spring No
----
Swingarm:
Free play
limit end
-_ .... -
1 mm
(0.04 in)
side
---- 1mm
(0.04 in)
Front wheel:
Type
Spoke wheel
----
Rim size
16 x MT3.00
----
Rim material
Steel
----
Rim runout limit
radial
1.0
mm (0.04 in)
2mm
(0.08 in)
lateral
0.5
mm (0.02 in)
2mm
(0.08 in)
Rear wheel:
Type
Spoke wheel
----
Rim size
15M/C x MT3.50
----
Rim material
Steel
----
Rim runout limit
radial
1.0 mm (0.04 in)
2mm
(0.08 in)
lateral
0.5
mm (0.02 in) 2mm
(0.08 in)
2 - 14
