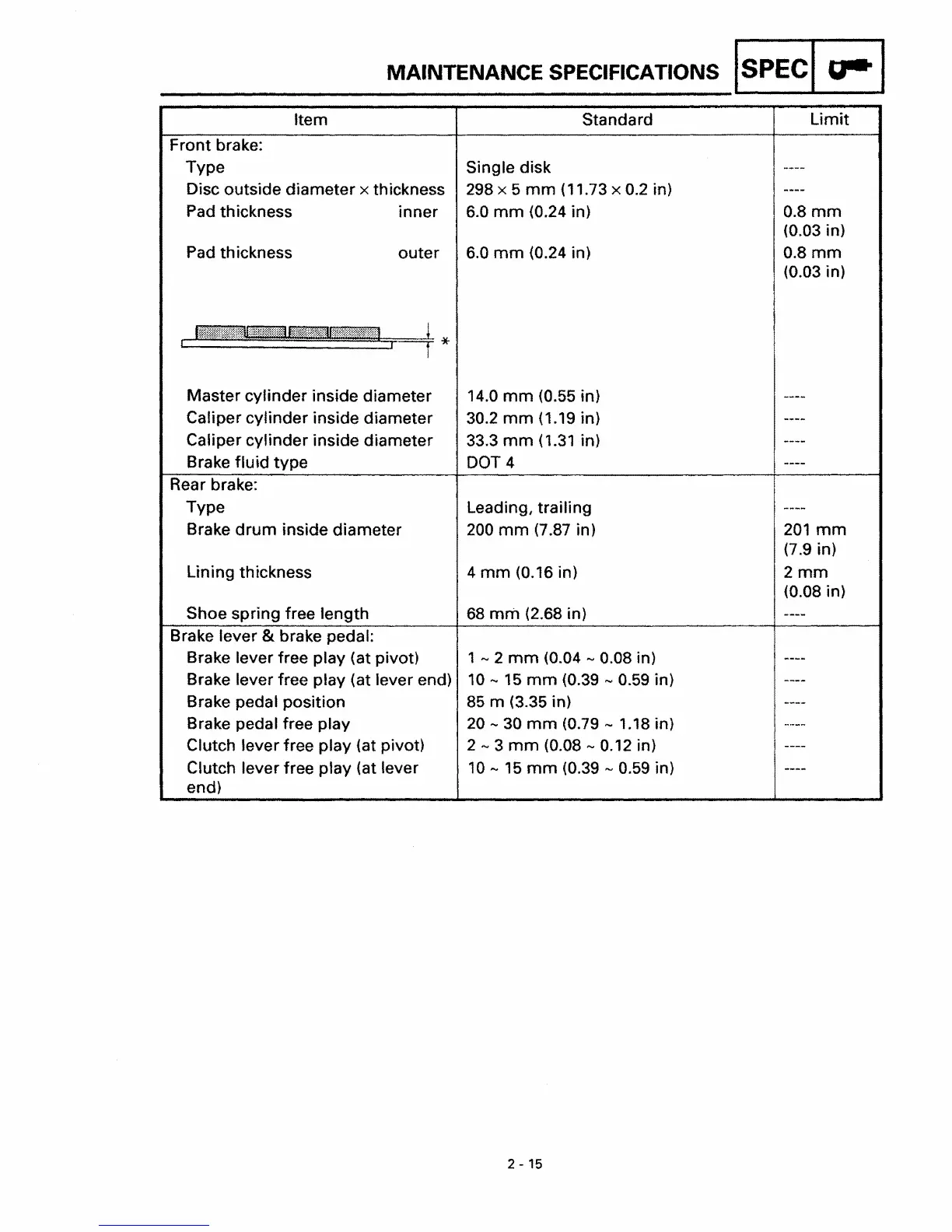

MAINTENANCE SPECIFICATIONS
ISPECI
0-1
Item
Standard
Limit
Front brake:
Type
Single disk
----
Disc outside diameter x thickness
298 x 5
mm
(11.73 x 0.2 in)
----
Pad
th
ickness
inner
6.0
mm
(0.24 in)
0.8mm
(0.03 in)
Pad thickness
outer
6.0
mm
(0.24 in)
0.8mm
(0.03 in)
1 *
t
Master cylinder inside diameter
14.0
mm
(0.55 in)
----
Caliper cylinder inside diameter 30.2
mm
(1.19 in)
----
Caliper cylinder inside diameter 33.3
mm
(1.31
in)
----
Brake
fluid
type
DOT 4
----
Rear brake:
Type
Leading, trailing
_
...
_-
Brake
drum
inside diameter
200
mm
(7.87 in)
201
mm
(7.9 in)
Lining thickness
4
mm
(0.16 in)
2mm
(0.08 in)
Shoe spring free length
68
mm
(2.68 in)
----
Brake lever & brake pedal:
Brake lever free play (at pivot)
1
....
2
mm
(0.04
....
0.08 in)
----
Brake lever free play (at lever end)
10",
15
mm
(0.39
....
0.59 in)
----
Brake pedal position
85
m (3.35 in)
----
Brake pedal free play
20", 30
mm
(0.79
....
1.18 in)
....
_
...
-
Clutch lever free play (at pivot)
2
....
3
mm
(0.08
....
0.12 in)
----
Clutch lever free play (at lever
10
....
15
mm
(0.39
....
0.59 in)
----
end)
2 - 15
