Yamaha XVS650 - Sidestand and Crankcase Cover (Left)

ENGINE REMOVAL ENG

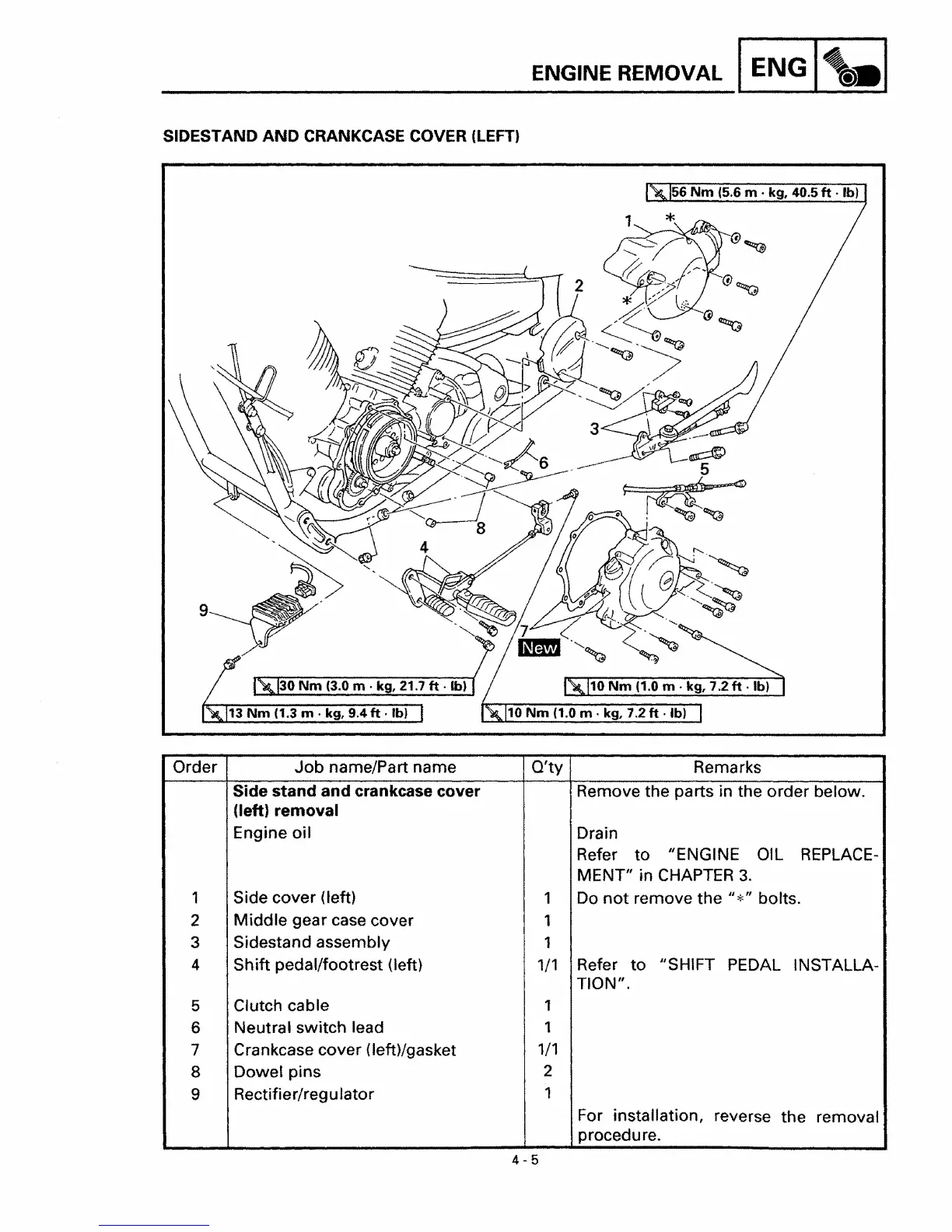

SIDESTAND AND CRANKCASE COVER (LEFT)
56 Nm (5.6 m . kg, 40.5 ft . rb)
9
13 Nm (1.3 m· kg, 9.4ft· rb)
Order Job name/Part name Q'ty Remarks
Side stand and crankcase cover
(left) removal
Engine oil
1
Side cover (left)
1
2
Middle gear case cover
1
3
Sidestand assembly
1
4 Shift pedal/footrest (left)
1/1
5
Clutch cable 1
6
Neutral switch lead
1
7
Crankcase cover (Ieft)/gasket
1/1
8
Dowel pins
2
9
Rectifier/regulator
1
Remove
the parts in the order below.
Drain
Refer
to IJENGINE OIL REPLACE-
MENT" in CHAPTER 3.
Do not remove the "*" bolts.
Refer
to "SHIFT PEDAL INSTALLA-
TION".
For installation, reverse the removal
procedure.
