Yamaha XVS650 - Chapter 7. Electrical; Electrical Components

IGNITION COIL:
PRIMARY
WINDING RESISTANCE:
3.8
... 4.6 Q at 20°C (68°F)
SECONDARY WINDING RESISTANCE:
10.1
... 15.1 kQ at 20°C (68"F)

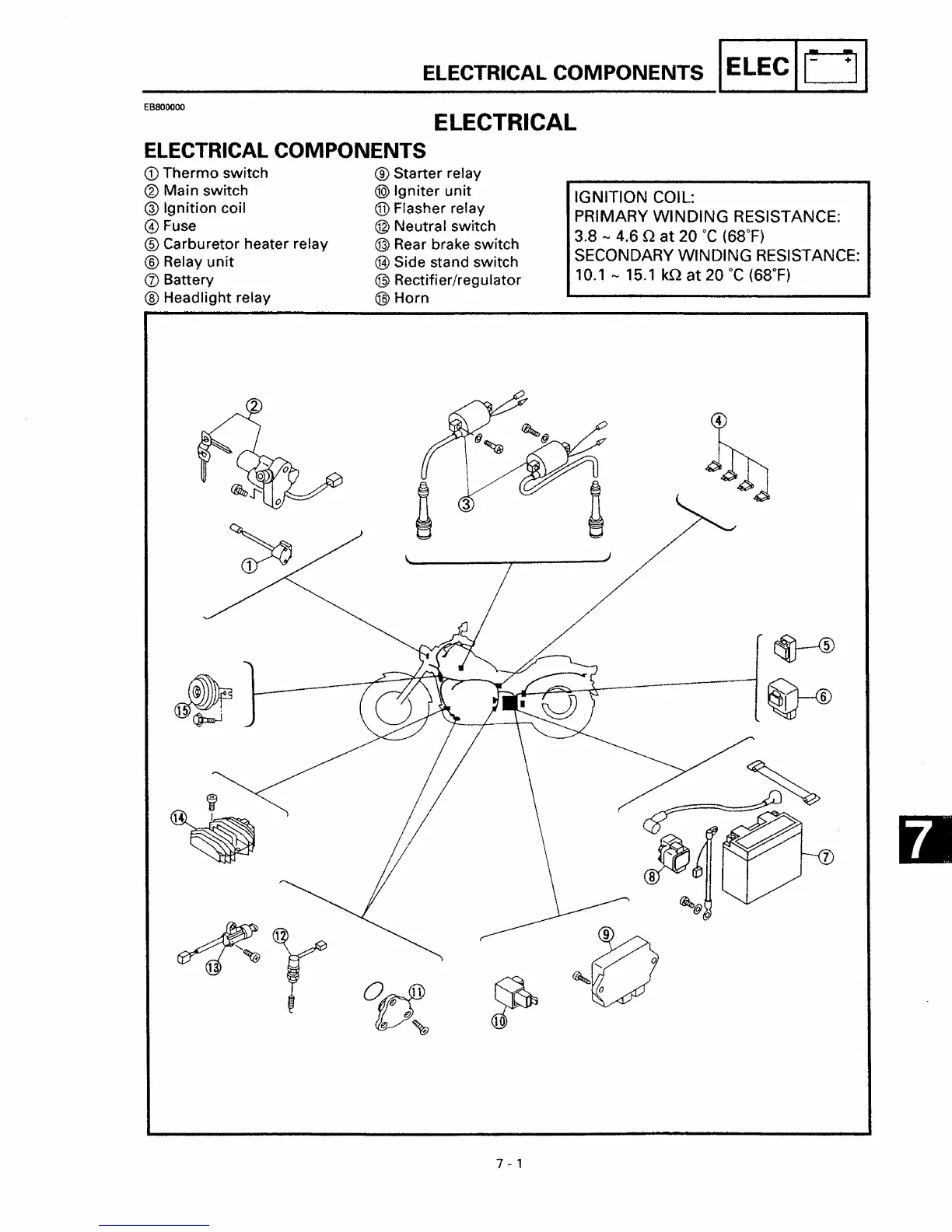

ELECTRICAL COMPONENTS
EB800000
ELECTRICAL
ELECTRICAL COMPONENTS
CD Thermo switch ® Starter relay
® Main switch @) Igniter unit
® Ignition coil ® Flasher relay
@ Fuse @ Neutral switch
® Carburetor heater relay @ Rear brake switch
® Relay unit @ Side stand switch
(j) Battery @> Rectifier/regulator
® Headlight relay @ Horn
7 - 1
