Yamaha XVS650 - Final Drive Gear Disassembly

Bearing retainer wrench:
YM .. 04050, 90890 .. 04050
;:;:: ----------
The final drive shaft bearing retainer has
left-handed threads. To loosen
the retainer
turn it clockwise.
~~~~~~~~~~~_S_H_A_ff~DR_W_E_ICHA3~1

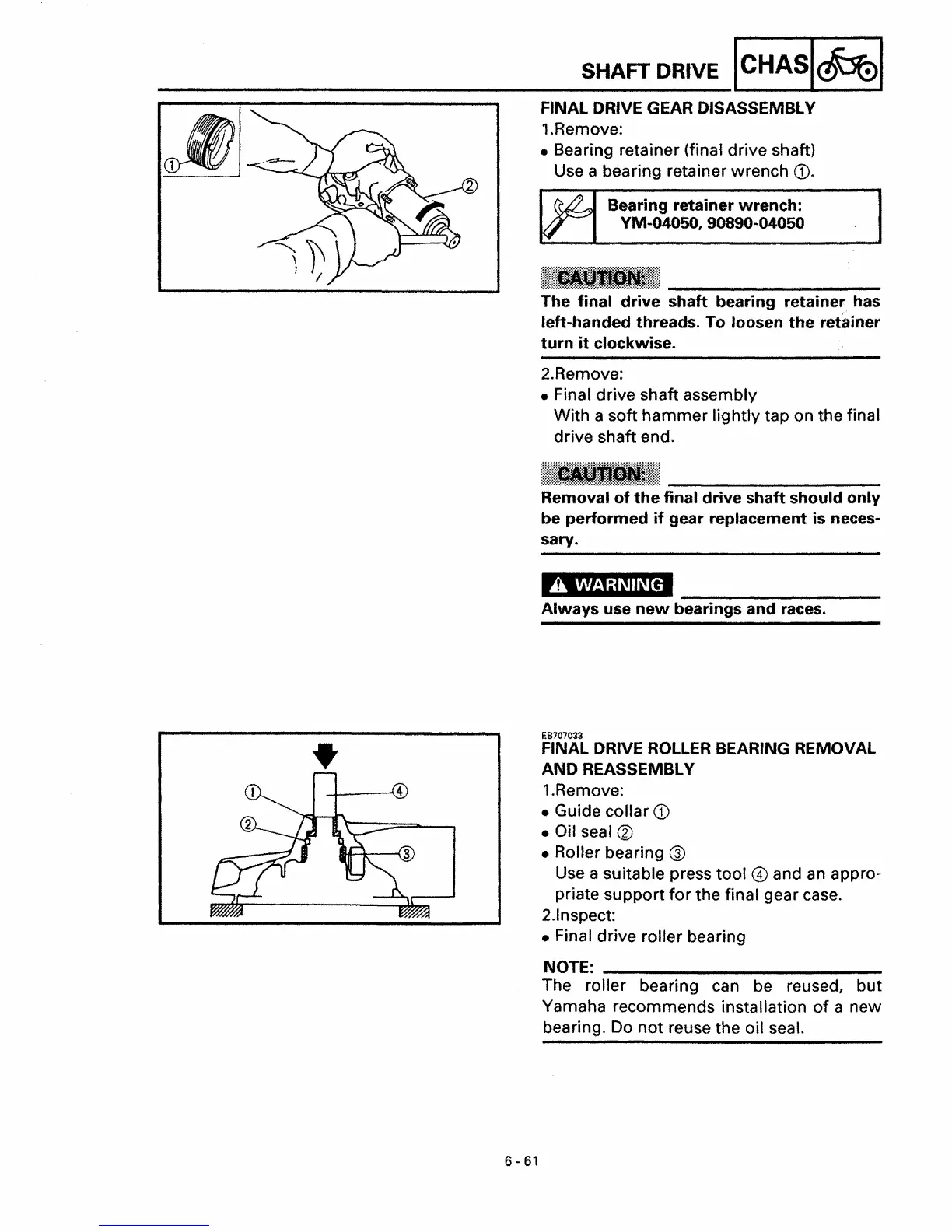

FINAL DRIVE GEAR DISASSEMBLY
1.Remove:
• Bearing retainer (final drive shaft)
Use a bearing retainer wrench
CD.
2.Remove:
• Final drive shaft assembly
With a soft hammer lightly tap on the final
drive shaft end.
Removal
of the final drive shaft should only
be performed
if gear replacement is neces ..
sary.
A WARNING
Always use new bearings and races.
•
EB707033
FINAL DRIVE ROLLER BEARING REMOVAL
AND REASSEMBLY
1.Remove:
• Guide collar
CD
• Oil seal ®
• Roller bearing @
Use a suitable press tool @ and an appro-
priate support
for the final gear case.
2.1nspect:
• Final drive rolter bearing
NOTE: _
The roller bearing can be reused, but
Yamaha recommends installation
of a new
bearing.
Do not reuse the oil seal.
6 - 61
