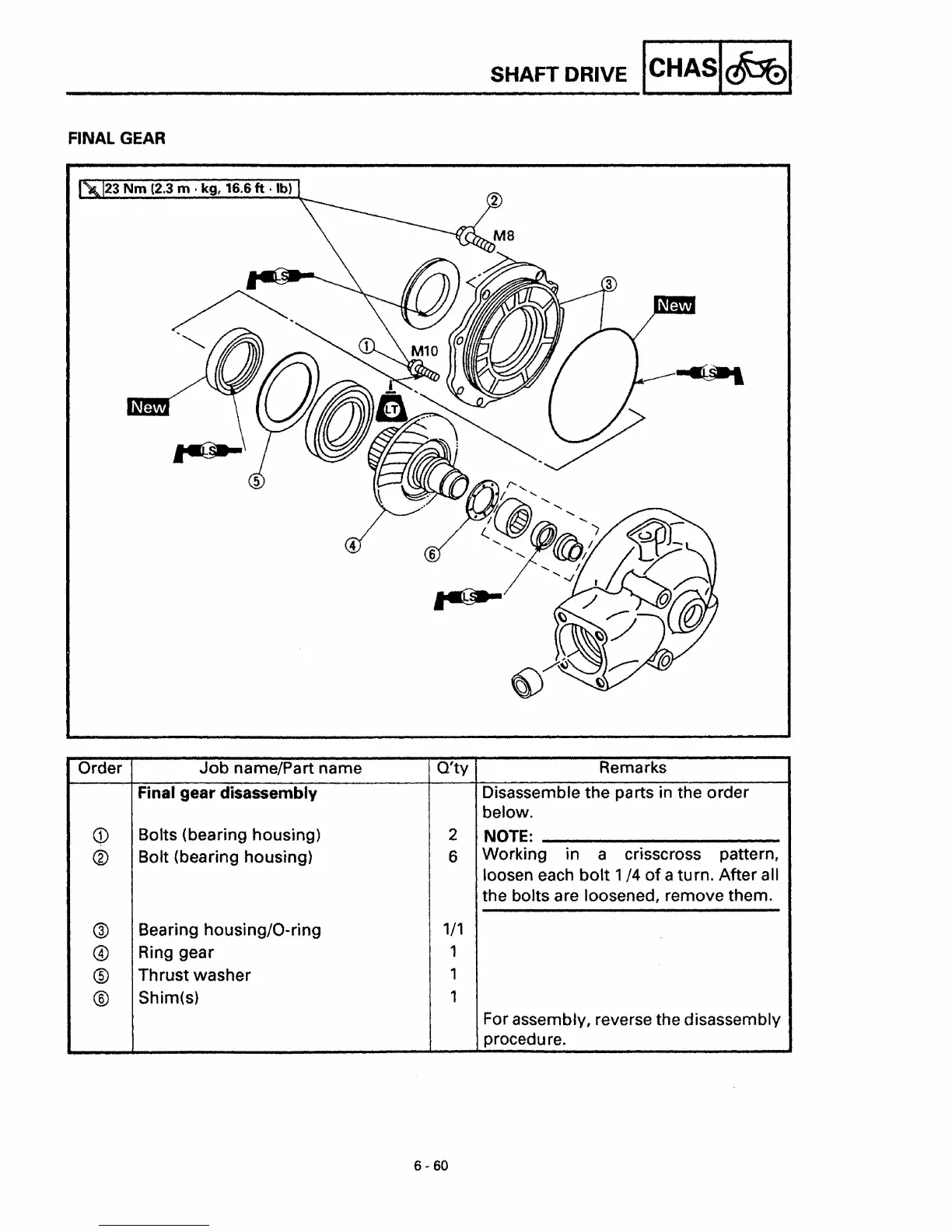

FINAL GEAR
23 Nm (2.3 m . kg, 16.6 ft . Ib)
4
Order Job name/Part name
Q'ty Remarks
Final gear disassembly
Disassemble the parts in the order
below.
Q)
Bolts (bearing housing) 2
NOTE:
®
Bolt (bearing housing)
6
Working
in
a
crisscross
pattern,
loosen each
bolt 1/4 of a turn. After all
the bolts are loosened, remove them.
®
Bearing housing/O~ring
1/1
@ Ring gear
1
®
Thrust washer
1
®
Shim(s)
1
For assembly, reverse the disassembly
procedure.
