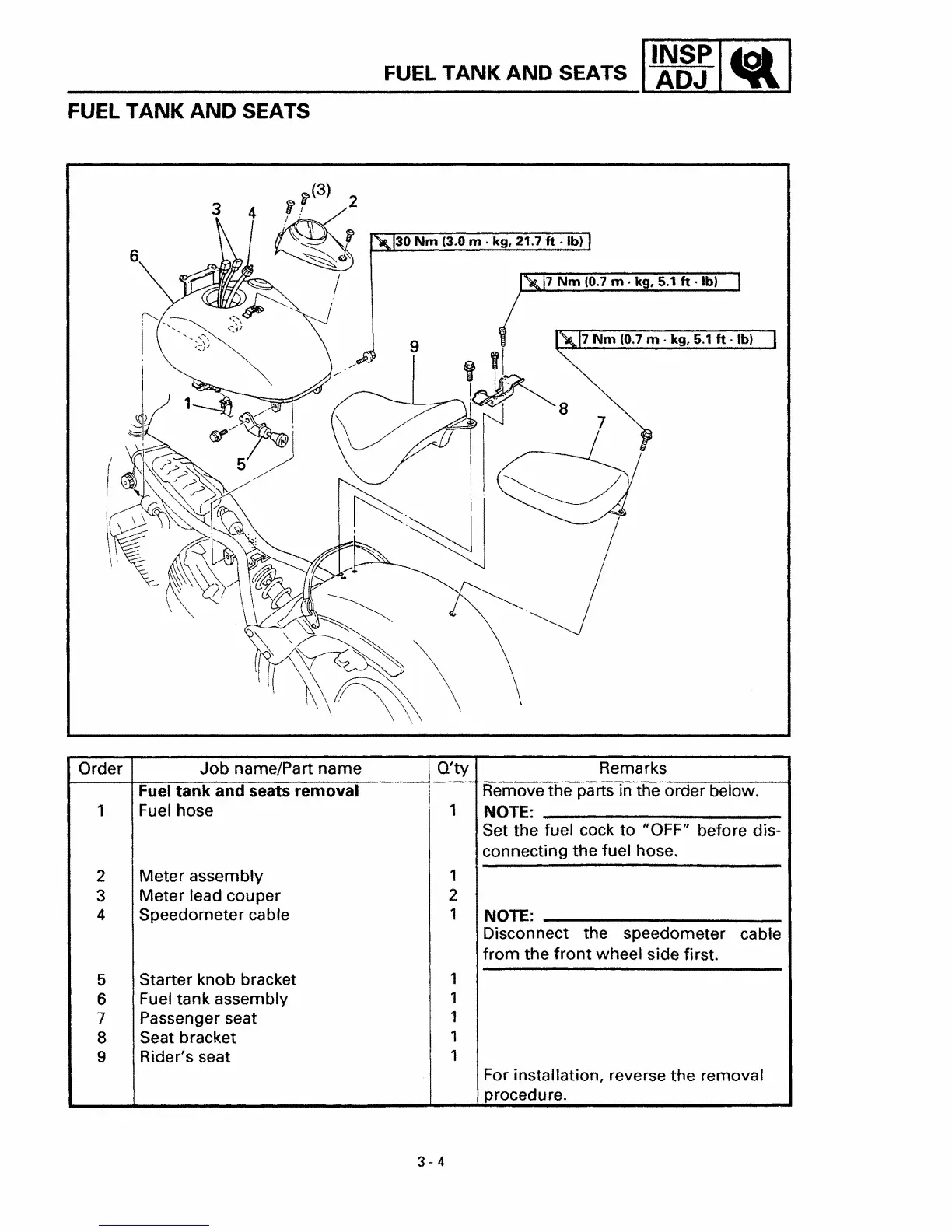

FUEL TANK AND SEATS
FUEL TANK AND SEATS II:gs I_I
30 Nm (3.0 m· kg, 21.7 ft ·Ib)
3
6
9
7 Nm (0.7 m· kg, 5.1 ft .Ib)
7 Nm (0.7 m· kg, 5.1 ft ·Ib)
Order Job name/Part name
a'ty Remarks
Fuel
tank and seats removal
Remove the parts in the order below.
1
Fuel hose
1
NOTE:
Set the fuel cock to "OFF" before dis-
connecting the fuel hose.
2
Meter assembly
1
3
Meter lead couper
2
4 Speedometer cable
1
NOTE:
Disconnect the
speedometer
cable
from the front wheel side first.
5
Starter knob bracket
1
6
Fuel tank assembly
1
7 Passenger seat
1
8
Seat bracket
1
9
Rider's seat
1
For installation, reverse the removal
procedure.
