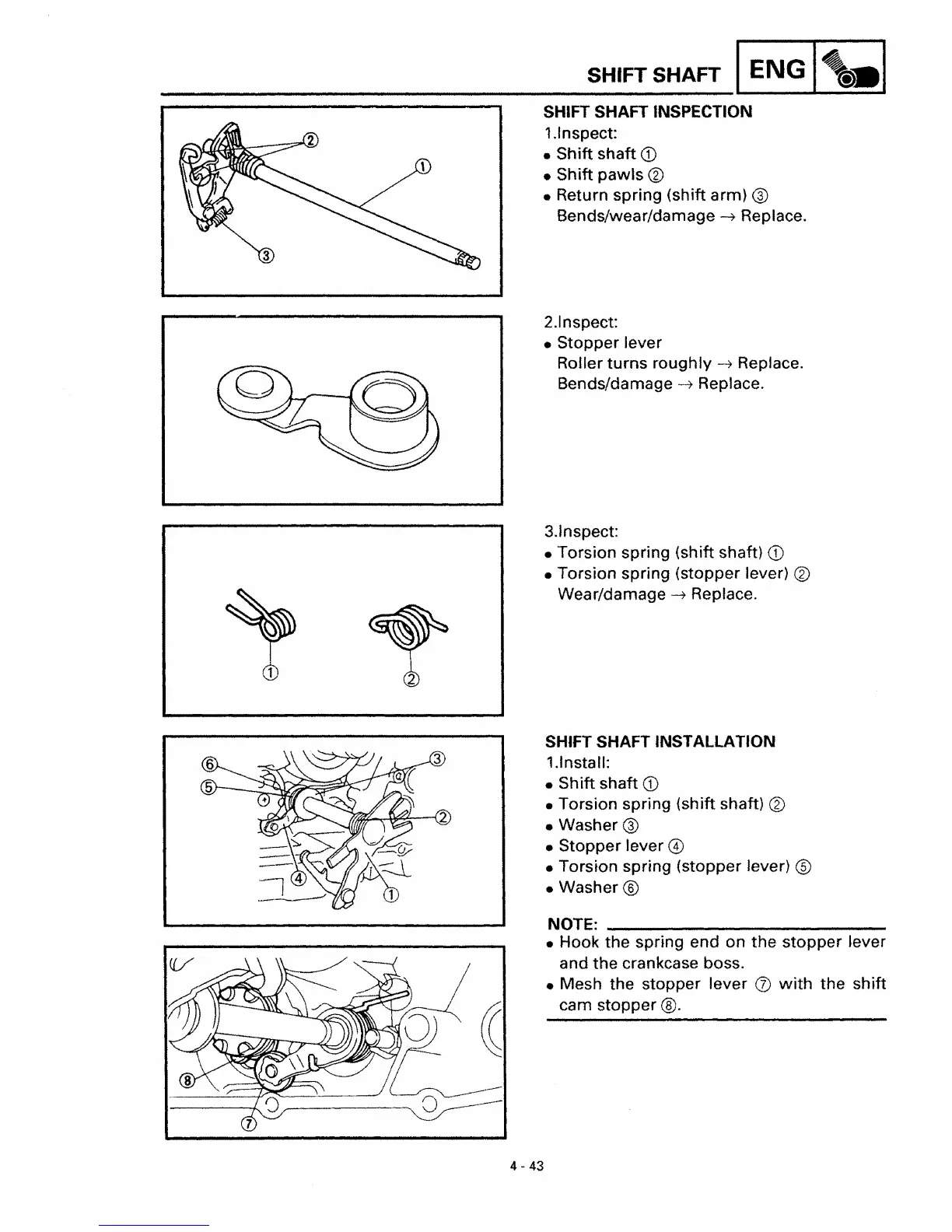

Yamaha XVS650 - Shift Shaft; Shift Shaft Installation

SHIFT SHAFT ENG
SHIFT SHAFT INSPECTION
1.1nspect:
•
Shift shaft CD
• Shift pawls ®
• Return spring (shift arm) @
Bends/wear/damage --7 Replace.
2.1nspect:
• Stopper lever
Roller
turns roughly --7 Replace.
Bends/damage
---t Replace.
3.Jnspect:
• Torsion spring (shift shaft)
CD
• Torsion spring (stopper lever) ®
Wear/damage ---t Replace.
SHIFT SHAFT INSTALLATION
1.lnstall:
•
Shift shaft CD
• Torsion spring (sh ift shaft) ®
• Washer@
• Stopper lever @
• Torsion spring (stopper lever) ®
• Washer@
NOTE: _
• Hook the spring end on the stopper lever
and the crankcase boss.
• Mesh the stopper lever
(J) with the shift
cam stopper
®.
4 - 43
