SHIFT SHAFT
SHIFT SHAFT
ENG
Order
Job
name/Part name
a'ty
Remarks

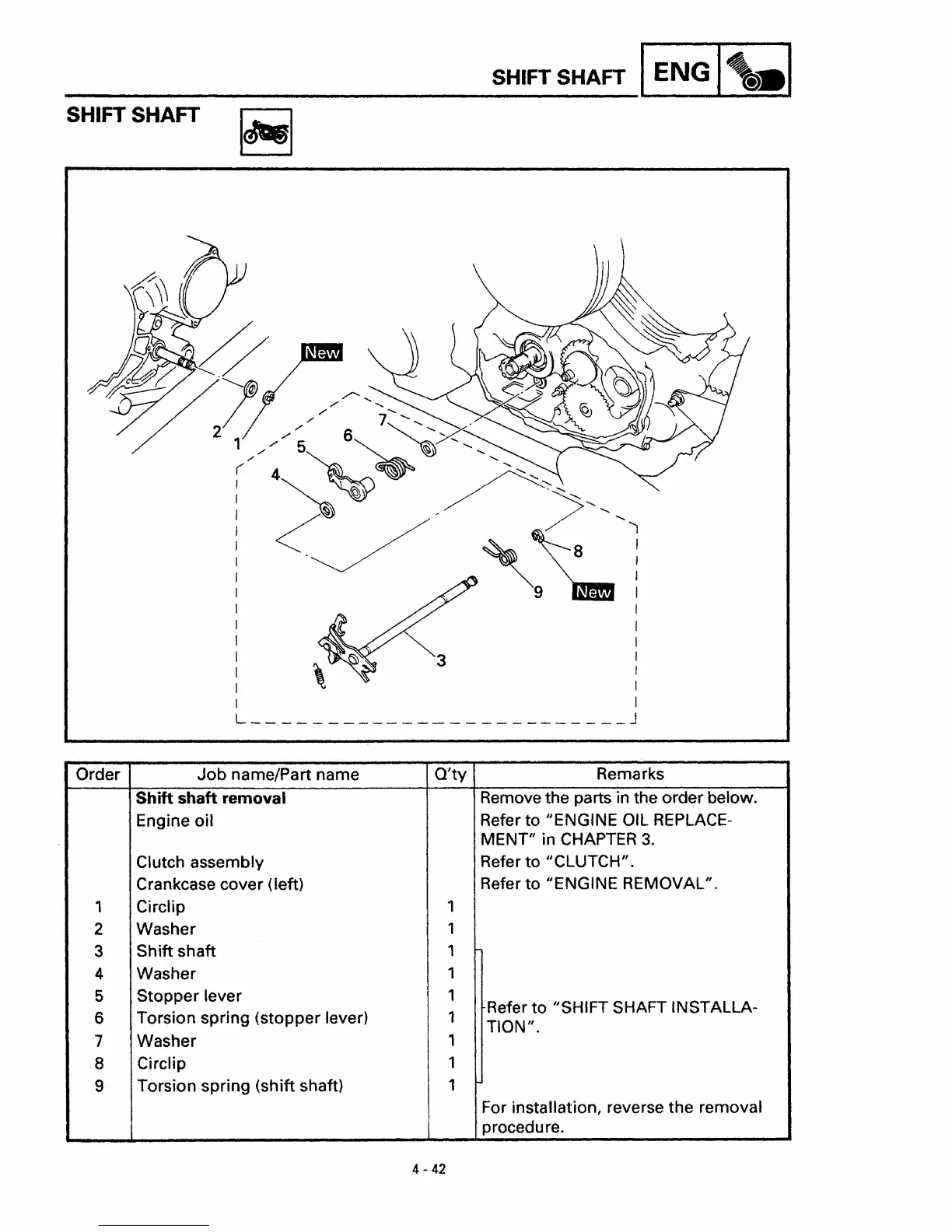

Shift shaft removal
Remove the parts in the order below.
Engine oil
Refer to "ENGINE OIL
REPLACE-
MENT" in
CHAPTER
3.
Clutch assembly
Refer to "CLUTCH".
Crankcase cover (left)
Refer to "ENGINE REMOVAL".
,
Circlip
,
2 Washer
1
3
Shift shaft
1
4 Washer
1
5
Stopper lever
1
~Refer
to IISHIFT SHAFT INSTALLA-
6
Torsion spring (stopper lever)
1
TION".
7 Washer
1
8
Circlip
1
9
Torsion spring (shift shaft)
1
For installation, reverse the removal
procedure.
