Yamaha XVS650 - Front Brake

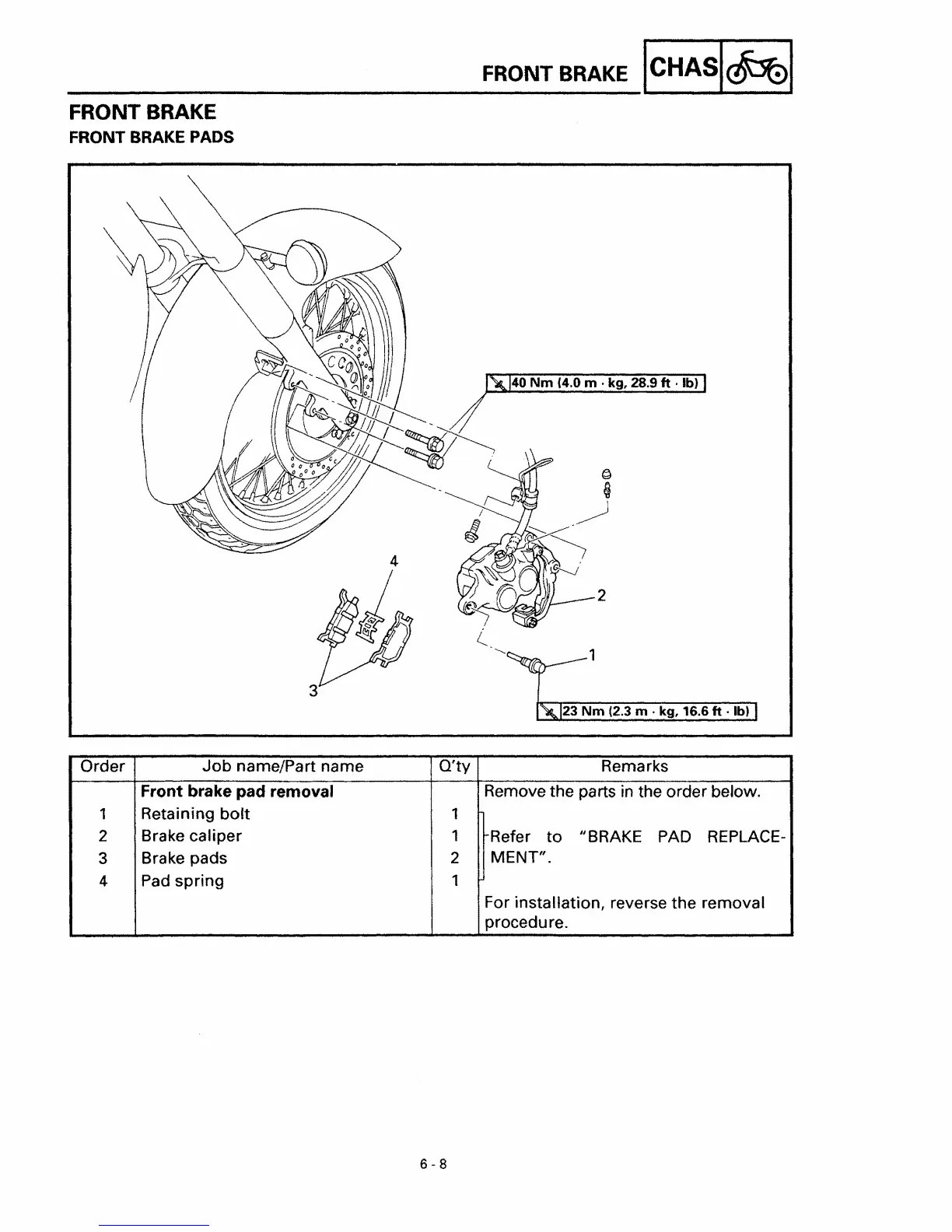

FRONT BRAKE
FRONT BRAKE PADS
3
FRONT BRAKE I CHASI AI
40 Nm (4.0 m . kg, 28.9 It . Ib)
2
1
23 Nm (2.3 m . kg, 16.6 It . Ib)
Order Job name/Part name
Q'ty
Remarks
Front brake pad removal Remove the parts in the order below.
1
Retaining bolt
1
2
Brake
caliper 1
Refer
to
II BRAKE
PAD
REPLACE-
3
Brake pads
2
MENT".
4
Pad spring
1
For installation, reverse the removal
procedure.
6-8
