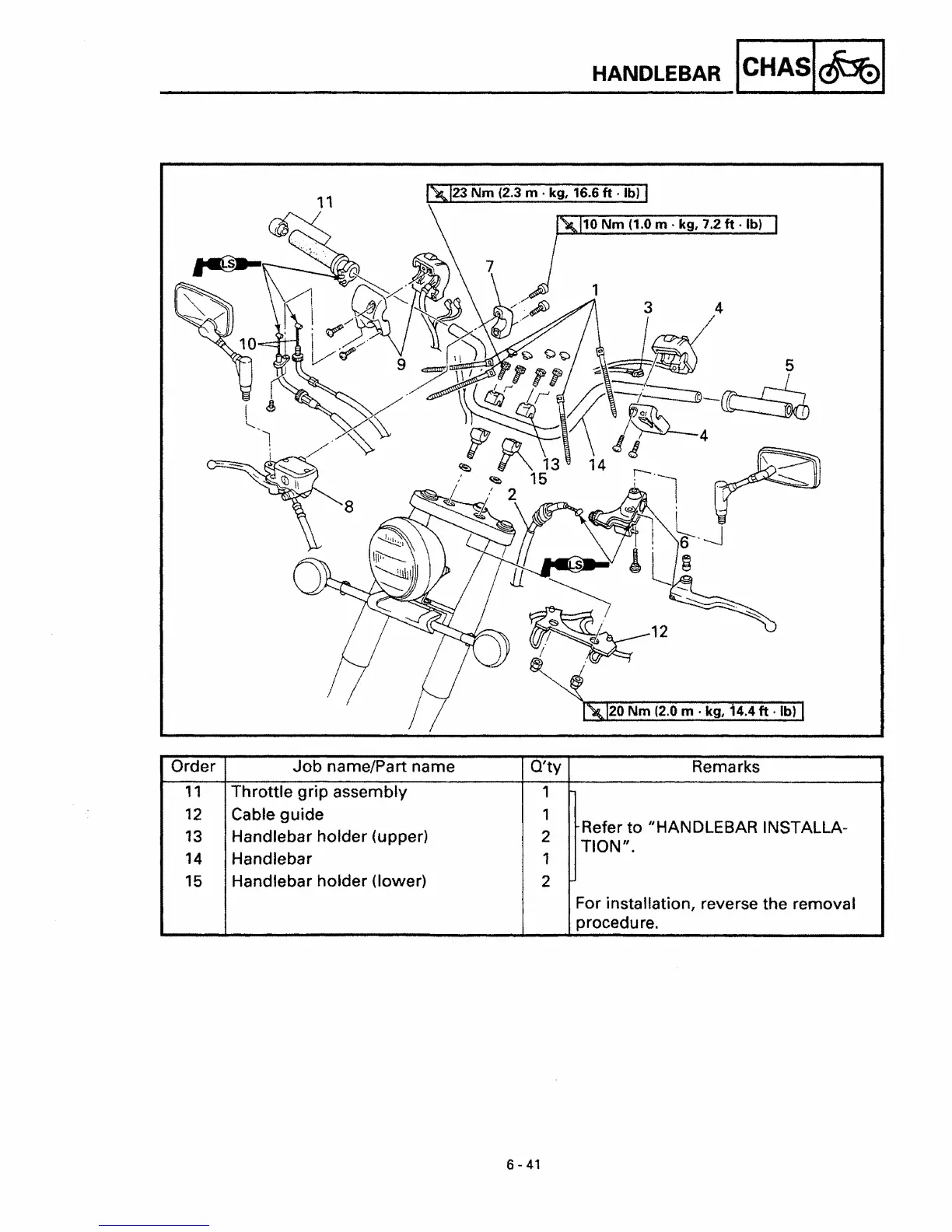

Yamaha XVS650 - Handlebar

~23 Nm (2.3 m . kg, 16.6 it . IbJ I
10 Nm (1.0 m· kg, 7.2 it ·Ib)
20 Nm (2.0 m . kg, ;4.4 it . Ib)
Order
Job name/Part name
Q'ty
Remarks
11 Throttle grip assembly
1
12
Cable guide 1
13 Handlebar holder (upper) 2
~Refer to "HANDLEBAR INSTALLA-
14
Handlebar 1
TION".
15 Handlebar holder (lower)
2
For installation, reverse the removal
procedure.
6 - 41
