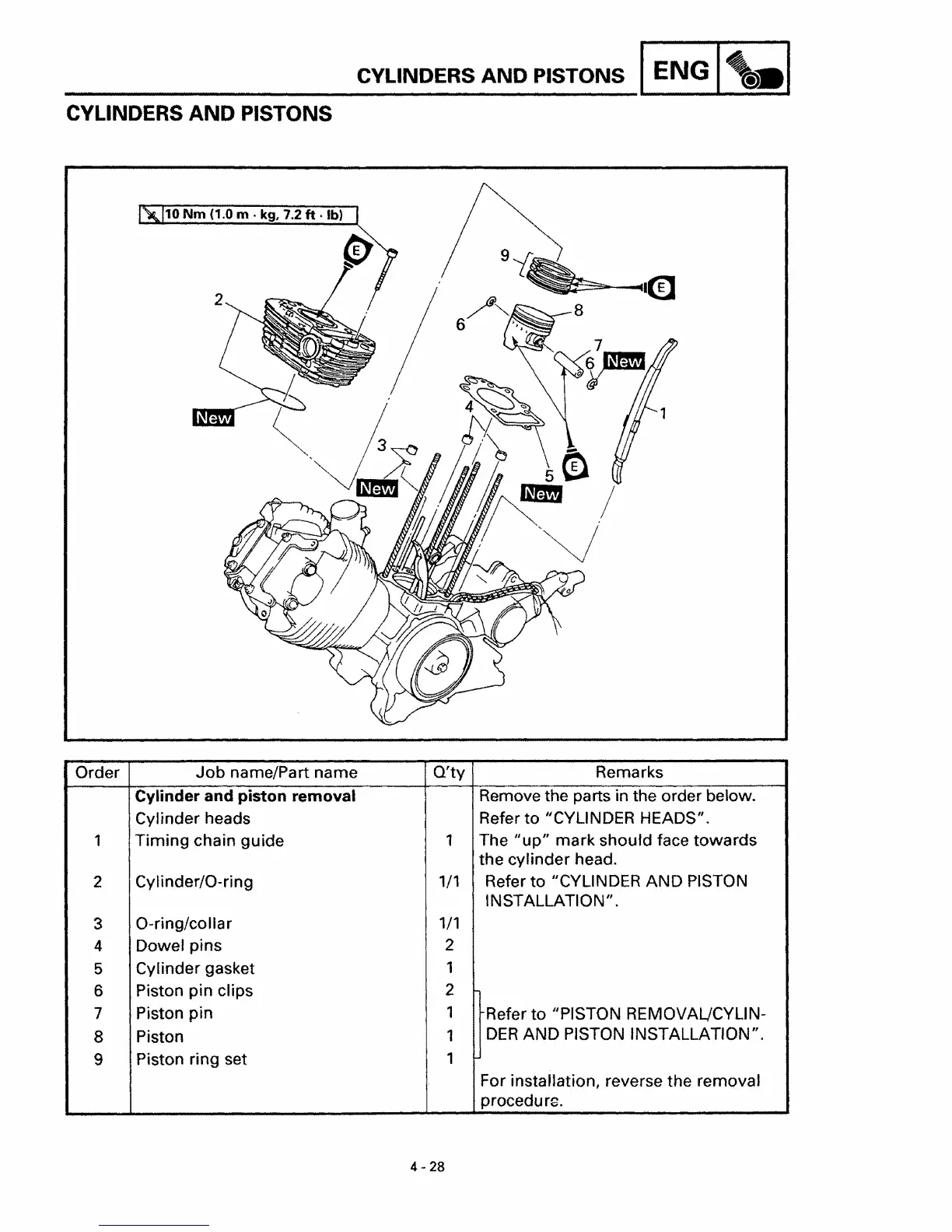

CYLINDERS AND PISTONS
10 Nm (1.0 m . kg, 7.2 ft .Ib)
CYLINDERS AND PISTONS ENG
Order Job name/Part name
Qlty
Remarks
Cylinder and piston removal Remove the parts in the order below.
Cylinder heads Refer to "CYLINDER HEADS".
1 Timing chain guide 1
The "up" mark should face towards
the cylinder head.
2 Cylinder/O-ring 1/1
Refer to "CYLINDER AND PISTON
INSTALLATION".
3
O-ring/collar 1/1
4
Dowel pins
2
5
Cylinder gasket
1
6
Piston pin clips
2
7 Piston pin
1
Refer to "PISTON REMOVAlJCYLlN-
8
Piston
1
DER AND PISTON INSTALLATION",
9
Piston ring set
1
For installation, reverse the removal
procedure.
