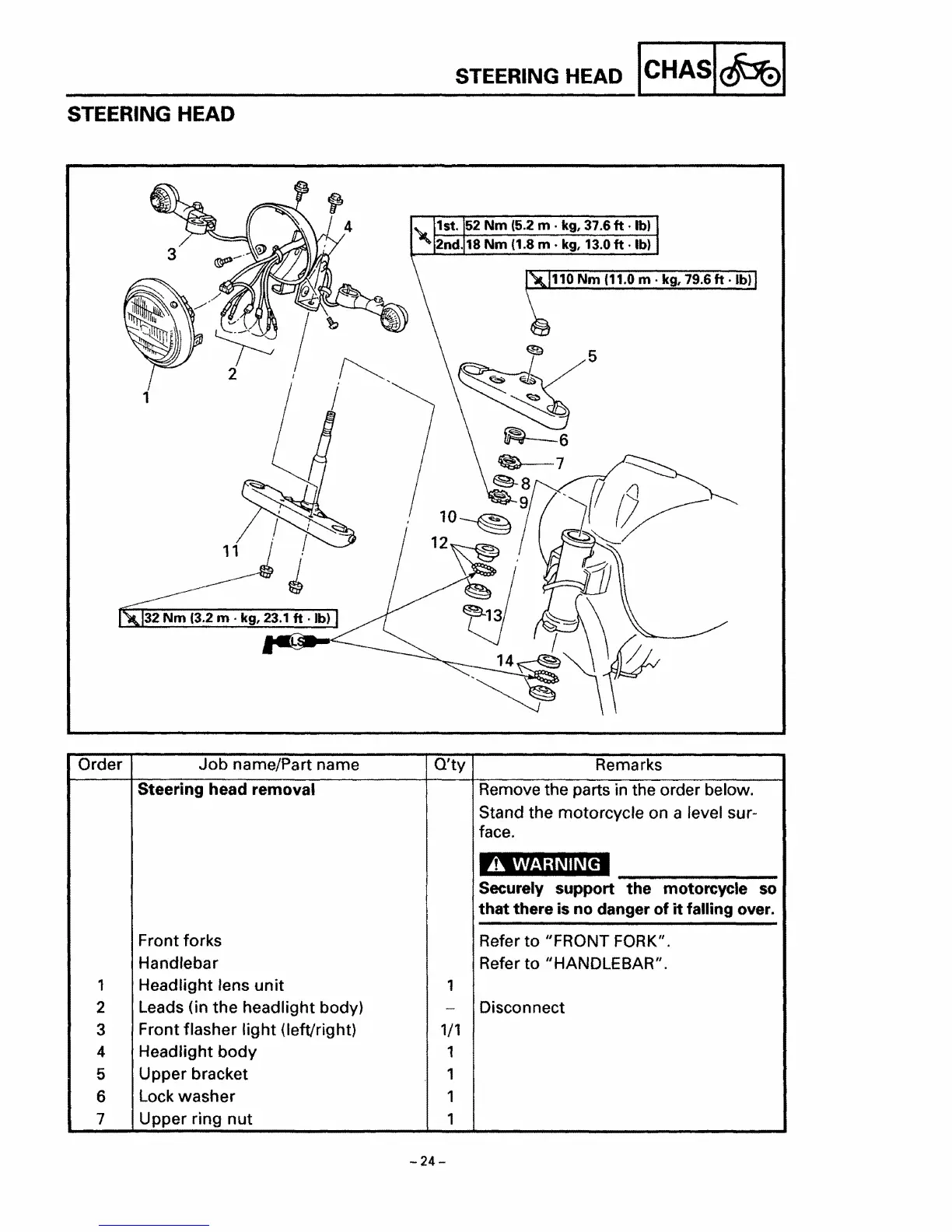

STEERING HEAD
1
Order Job name/Part name
Steering head removal
Front forks
Handlebar
1 Headlight lens
unit
2 Leads (in the headlight body)
3 Front flasher light (left/right)
4 Headlight body
5 Upper bracket
6 Lock washer
7 Upper ring nut
STEERING HEAD ICHASI~I
~ 1st. 52 Nm (5.2 m· kg, 37.6 ft ·Ib)
2nd. 18 Nm (1.8 m· kg, 13.0 ft· Ib)
110 Nm (11.0 m· kg, 79.6ft ·Ib)
5
O'ty Remarks
Remove the parts
in the order below.
Stand the motorcycle on a level sur-
face.
A WARNING
Securely support the motorcycle so
that there is no danger of it falling over.
Refer
to IIFRONT FORK".
Refer
to IJHANDLEBAR".
1
Disconnect
1/1
1
1
1
1
-24-
