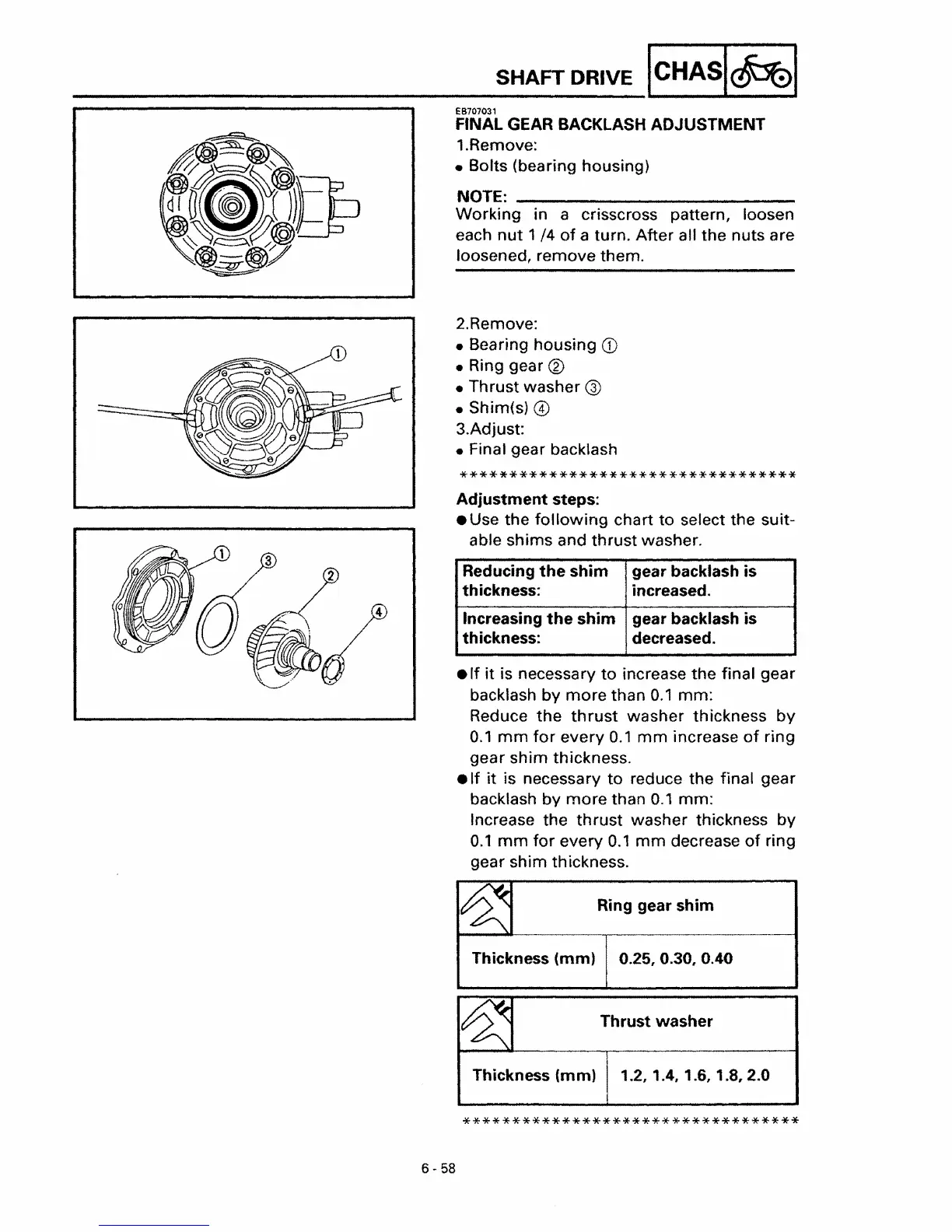

FINAL GEAR BACKLASH ADJUSTMENT
1.Remove:
• Bolts (bearing housing)
NOTE: _
Working in a crisscross pattern, loosen
each
nut
1 /4
of
a turn.
After
all the nuts are
loosened, remove them.
2.Remove:
• Bearing housing
CD
• Ring gear ®
• Thrust washer @
• Shim(s) @
3.Adjust:
• Final gear backlash
**********************************
Adjustment
steps:
e Use the
following
chart
to
select the suit-
able shims and thrust washer.
Reducing
the
shim
gear backlash
is
thickness: increased.
Increasing
the
shim
gear backlash is
thickness:
decreased.
elf
it
is necessary
to
increase the final gear
backlash
by
more
than
0.1
mm:
Reduce
the
thrust
washer thickness
by
0.1
mm
for
every
0.1
mm
increase
of
ring
gear
shim
thickness.
elf
it
is necessary
to
reduce the final gear
backlash by
more
than
0.1
mm:
Increase the
thrust
washer thickness by
0.1
mm
for
every
0.1
mm
decrease
of
ring
gear
sh
im thickness.
Ring gear
shim
0.25, 0.30, 0.40
Thrust washer
Thickness (mm) 1.2, 1.4, 1.6, 1.8,2.0
**********************************
