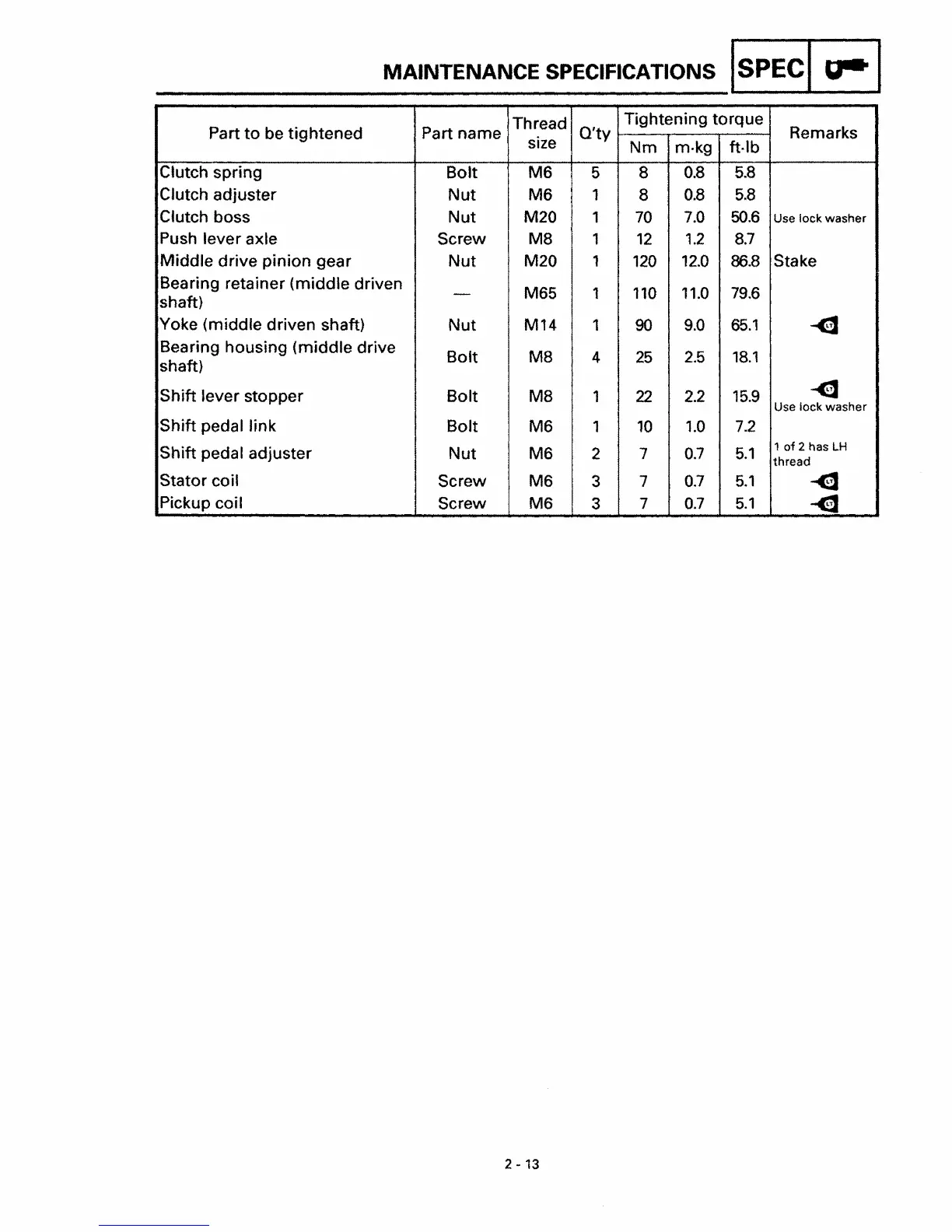

MAINTENANCE SPECIFICATIONS ISPECI cr--I
Part to be tightened Part name
Thread
Q/ty
Tightening torque
Remarks
size
Nm
m·kg ft·lb
Clutch spring
Bolt
M6
5 8
0.8
5.8
Clutch adjuster
Nut M6 1
8
0.8 5.8
Clutch boss Nut M20
1 70
7.0
50.6
Use lock washer
Push lever axle
Screw
M8 1 12 1.2
8.7
Middle drive pinion gear
Nut
M20 1
120
12.0 86.8
Stake
Bearing retainer (middle driven
-
M65 1 110 11.0 79.6
shaft)
Yoke (middle driven shaft)
Nut
M14
1
90
9.0
65.1 -f]
Bearing housing (middle drive
Bolt
M8
4 25
2.5
18.1
shaft)
Shift lever stopper
Bolt
M8
1 22
2.2 15.9
-f]
Use lock washer
Shift pedal link
Bolt
M6
1
10
1.0
7.2
Shift pedal adjuster
Nut
M6 2
7
0.7 5.1
1 of 2 has LH
thread
Stator coil
Screw
M6
3
7
0.7
5.1
-f]
Pickup coil
Screw
M6
3
7 0.7 5.1 -f]
