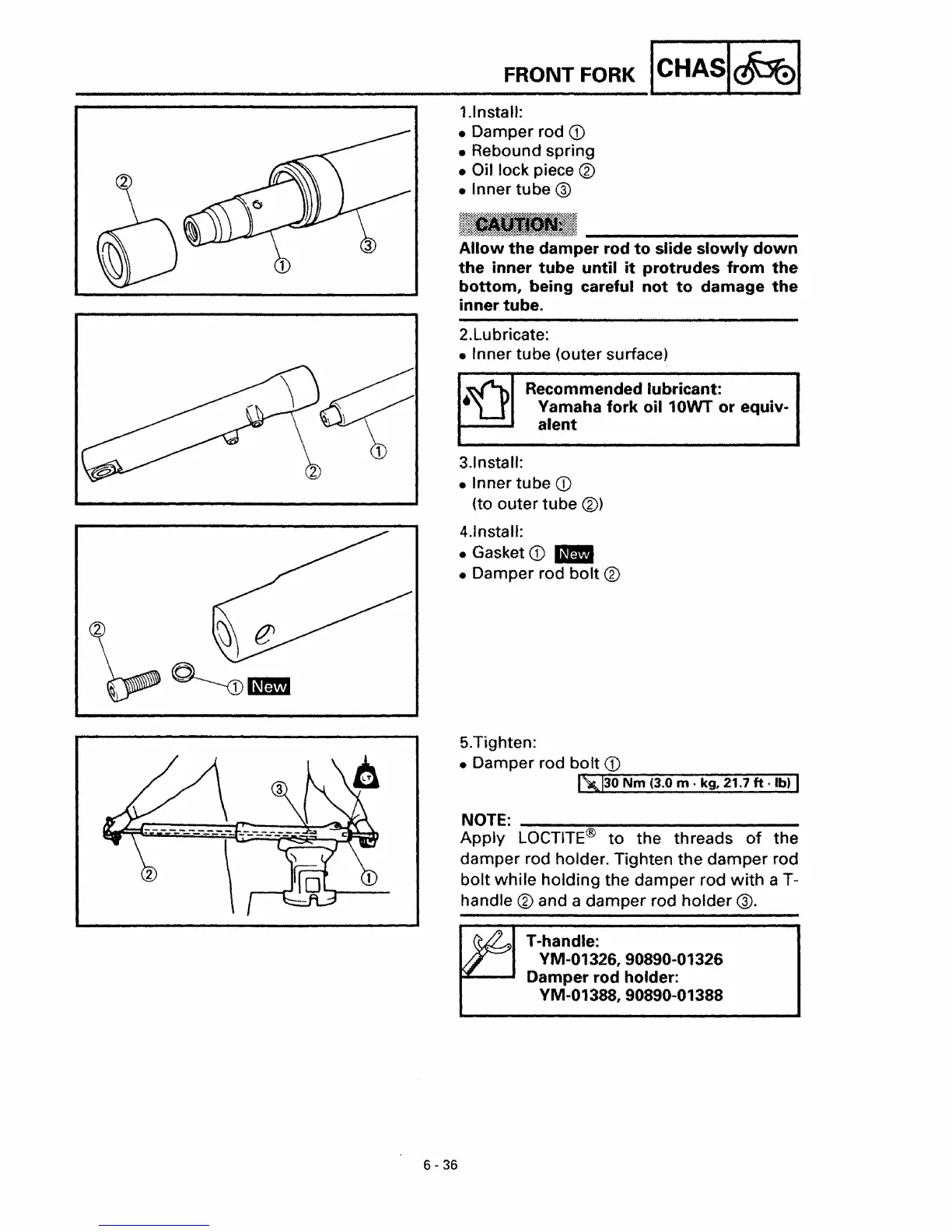

~~~~~~~~~~~~F_R_O_N_T_ro_R_K_ICHMI~1
1.1nstall:
• Damper rod
CD
• Rebound spring
• Oil lock piece
®
• Inner tube ®
Allow the damper rod to slide slowly down
the inner tube until it protrudes from the
bottom, being careful not to damage the
inner tube.
2.Lubricate:
• Inner tube (outer surface)
~ Recommended lubricant:
·U Yamaha fork oil10WT or equiv-
alent
3.1 nsta II:
• Inner tube CD
(to outer tube ®)
4.1nstall:
•
GasketG) _
• Damper rod
bolt ®
5.Tighten:
• Damper rod
bolt G)
~~30~N~m~(3~.o~m-. ~k9-,~2~1.~7 "="ft-· ~Ib~) I
NOTE: __ ~~ _
Apply LOCTITE® to the threads of the
damper rod holder. Tighten the
damper rod
bolt while holding the damper rod with a T-
handle
® and a damper rod holder @.
T-handle:
VM-01326,90890-01326
Damper rod holder:
VM-01388,90890-01388
6 - 36
