~~~~~~~~~~~~F_R_O_N_T_ro_R_K_ICHA3~1

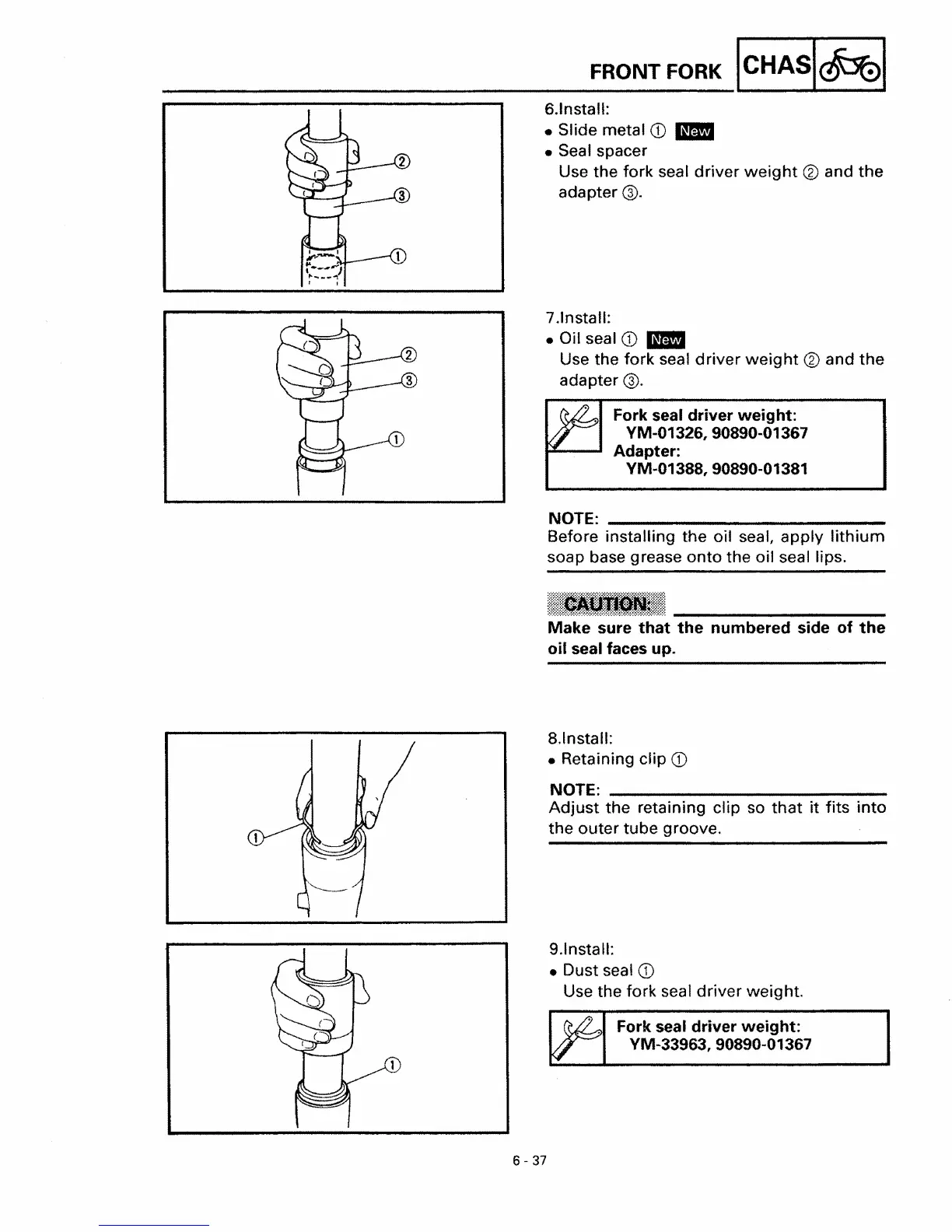

6.1nstall:
• Slide metal
CD _
• SeaI spacer
Use the
fork seal driver weight ® and the
adapter @.
NOTE: _
Before installing the oil seal, apply lithium
soap base grease onto the oil seal lips.
7.1nstall:
• Oil seal
CD _
Use the fork seal driver weight ® and the
adapter@.
Fork seal driver weight:
YM·01326,90890-01367
Adapter:
YM-01388,90890-01381
Make sure that the numbered side of the
oil seal faces up.
8.lnstall:
• Retaining
clip CD
NOTE: _
Adjust the retaining clip so that it fits into
the outer tube groove.
9.1nstall:
• Dust seal
CD
Use the fork seal driver weight.
Fork seal driver weight:
YM-33963, 90890-01367
6 - 37
