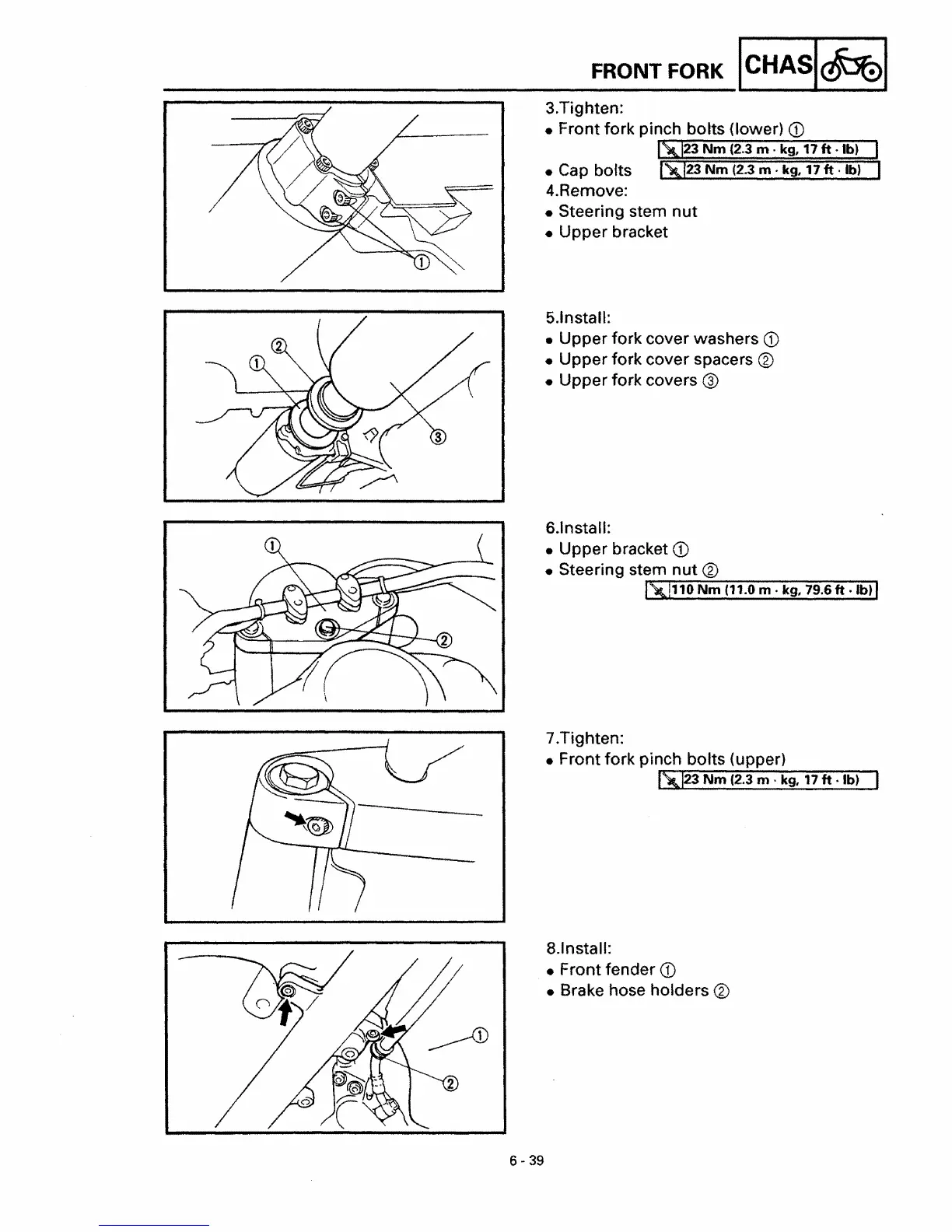

~~~~~~~~~~~~F_R_O_N_T_ro_R_K_ICHA3~1
3.Tighten:
• Front fork pinch bolts (lower)
CD
r.:il23 Nm (2.3 m . kg, 17 ft . Ib) I
• Cap bolts ~23 Nm (2.3 m . kg, 17 ft . Ib) ~
4.Remove:
• Steering stem
nut
• Upper bracket
5.1nstall:
• Upper fork cover washers
CD
• Upper fork cover spacers ®
• Upper fork covers ®
6.1nstall:
• Upper bracket
CD
• Steering stem nut ®
~-r-]1~1~O N~m-(1-1.--0-m-. -kg-, ~79-.6~ft-.--lb-Jf
7.Tighten:
• Front fork pinch bolts (upper)
~23 Nm (2.3 m . kg, 17 ft . Ib)
8.1nstall:
• Front fender
CD
• Brake hose holders ®
